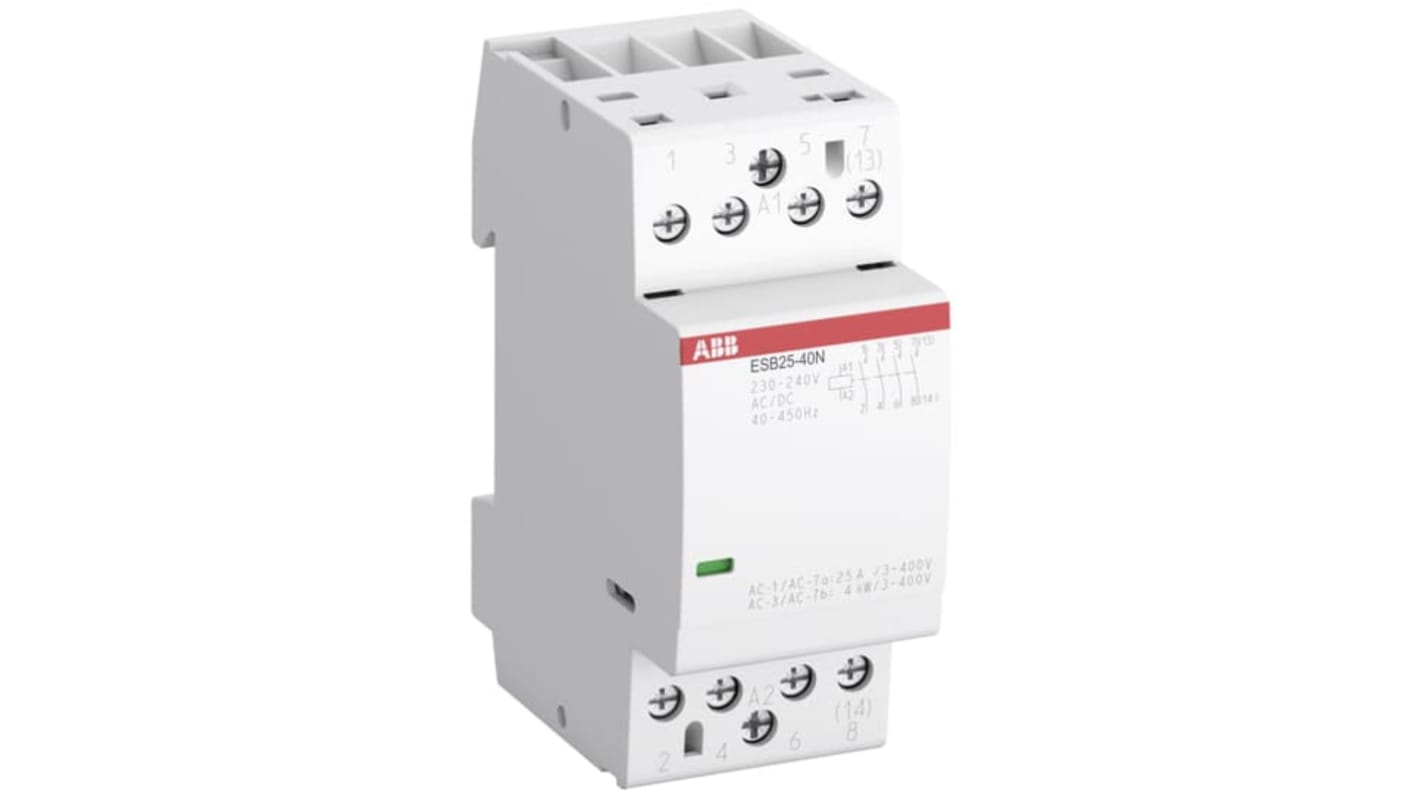

ABB ESB25 Contactor, 24V Coil, 4-Pole, 25 A, 17.3 kW 24V, 3 NO/1 NC, 400V ac
- RS Stock No.:
- 211-1484
- Mfr. Part No.:
- 1SAE231111R0113
- Brand:
- ABB
Subtotal (1 unit)*
£71.29
(exc. VAT)
£85.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2 unit(s) shipping from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £71.29 |
*price indicative
- RS Stock No.:
- 211-1484
- Mfr. Part No.:
- 1SAE231111R0113
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 24V | |
| Product Type | Contactor | |
| Number of Poles | 4 | |
| Contact Voltage | 400V ac | |
| Contact Current | 25A | |
| Series | ESB25 | |
| Power Rating | 17.3kW | |
| Function | Safety | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO/1 NC | |
| Terminal Type | Screw | |
| Contactor Application | Safety | |
| Control Circuit Voltage Uc | 24V | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 6A | |
| Maximum Operating Temperature | 55°C | |
| Width | 36mm | |
| Standards/Approvals | EN, IEC, UL | |
| Length | 65mm | |
| Depth | 65mm | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 24V | ||
Product Type Contactor | ||
Number of Poles 4 | ||
Contact Voltage 400V ac | ||
Contact Current 25A | ||
Series ESB25 | ||
Power Rating 17.3kW | ||
Function Safety | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO/1 NC | ||
Terminal Type Screw | ||
Contactor Application Safety | ||
Control Circuit Voltage Uc 24V | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 6A | ||
Maximum Operating Temperature 55°C | ||
Width 36mm | ||
Standards/Approvals EN, IEC, UL | ||
Length 65mm | ||
Depth 65mm | ||
Pole and Throw Configuration 4 | ||
- COO (Country of Origin):
- DE
ABB ESB Series Contactor, 400 Contact Voltage Rating, 17.3kW - 1SAE231111R0113
This contactor is designed for efficient operation in various electrical applications. With a compact size of 65 x 36 x 65 mm, it is ideal for space-constrained settings. The contactor handles loads up to 25A and operates effectively in both single and three-phase systems.
Features & Benefits
• Integrated overvoltage protection enhances circuit safety
• Designed for mechanical durability, rated for 1 million cycles
• 400V AC rating ensures versatile functionality across different environments
Applications
• Utilised in residential energy management systems
• Used in motor control applications for large equipment
Can it handle both AC and DC loads?
Yes, it operates with both AC and DC control circuits.
Can it function in extreme temperatures?
It operates between -25°C and 55°C, suitable for various conditions.
