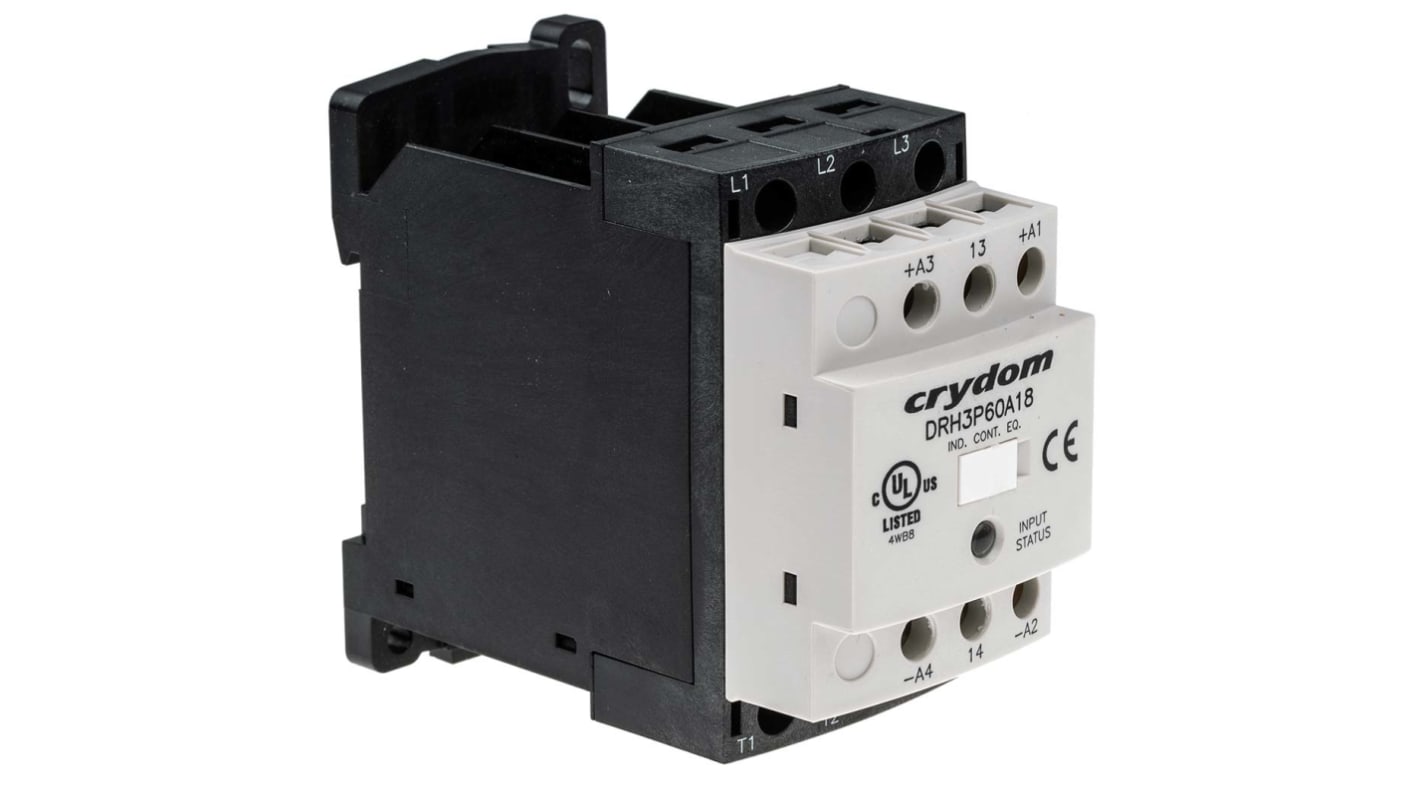

Sensata Crydom DRH Solid State Contactor, 3-Pole
- RS Stock No.:
- 145-0582
- Mfr. Part No.:
- DRH3P60A18
- Brand:
- Sensata / Crydom
Bulk discount available
Subtotal (1 unit)*
£168.12
(exc. VAT)
£201.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 44 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £168.12 |
5 - 9 | £159.69 |
10 - 24 | £151.30 |
25 - 49 | £142.89 |
50 + | £134.50 |
*price indicative
- RS Stock No.:
- 145-0582
- Mfr. Part No.:
- DRH3P60A18
- Brand:
- Sensata / Crydom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sensata / Crydom | |
Number of Poles | 3 | |
Series | DRH | |
Terminal Type | Screw | |
Length | 45.3mm | |
Depth | 95.6mm | |
Control Voltage | 48 V ac → 600 V ac | |
Load Current | 18A | |
Input Current | 3mA | |
Load Voltage | 600V ac | |
Mounting Style | DIN Rail | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand Sensata / Crydom | ||
Number of Poles 3 | ||
Series DRH | ||
Terminal Type Screw | ||
Length 45.3mm | ||
Depth 95.6mm | ||
Control Voltage 48 V ac → 600 V ac | ||
Load Current 18A | ||
Input Current 3mA | ||
Load Voltage 600V ac | ||
Mounting Style DIN Rail | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- MX
Crydom DRH Series Solid State Contactors
Crydom DRH series DIN Rail mount solid-state contactors with ratings up to 20 A per channel at 600 V ac. The DRH Series is ideal for heating applications and can be used to control (start/stop) 3 phase motors of up to 5 HP at 480 V ac. It is an effective solution for replacement of electromechanical contactors in commercial and industrial applications that require frequent switching.
DRH Series contactors have an innovative design that increases the airflow thus improving thermal performance. Featuring over-temperature protection to avoid overheating in case of a fan malfunction.
Features and Benefits
Over-voltage protection
Alarm output in case of over-temperature
Enclosed heat sink
Zero voltage and instantaneous turn-on output
Multicolour LED with input status and alarm indication
cULus listed and CE compliant
Ratings up to 20 A at 600 V ac
Fits standard 35 mm DIN Rail
Fan controlled through thermistor and microprocessor to optimise fan operation
Solid State Contactors
