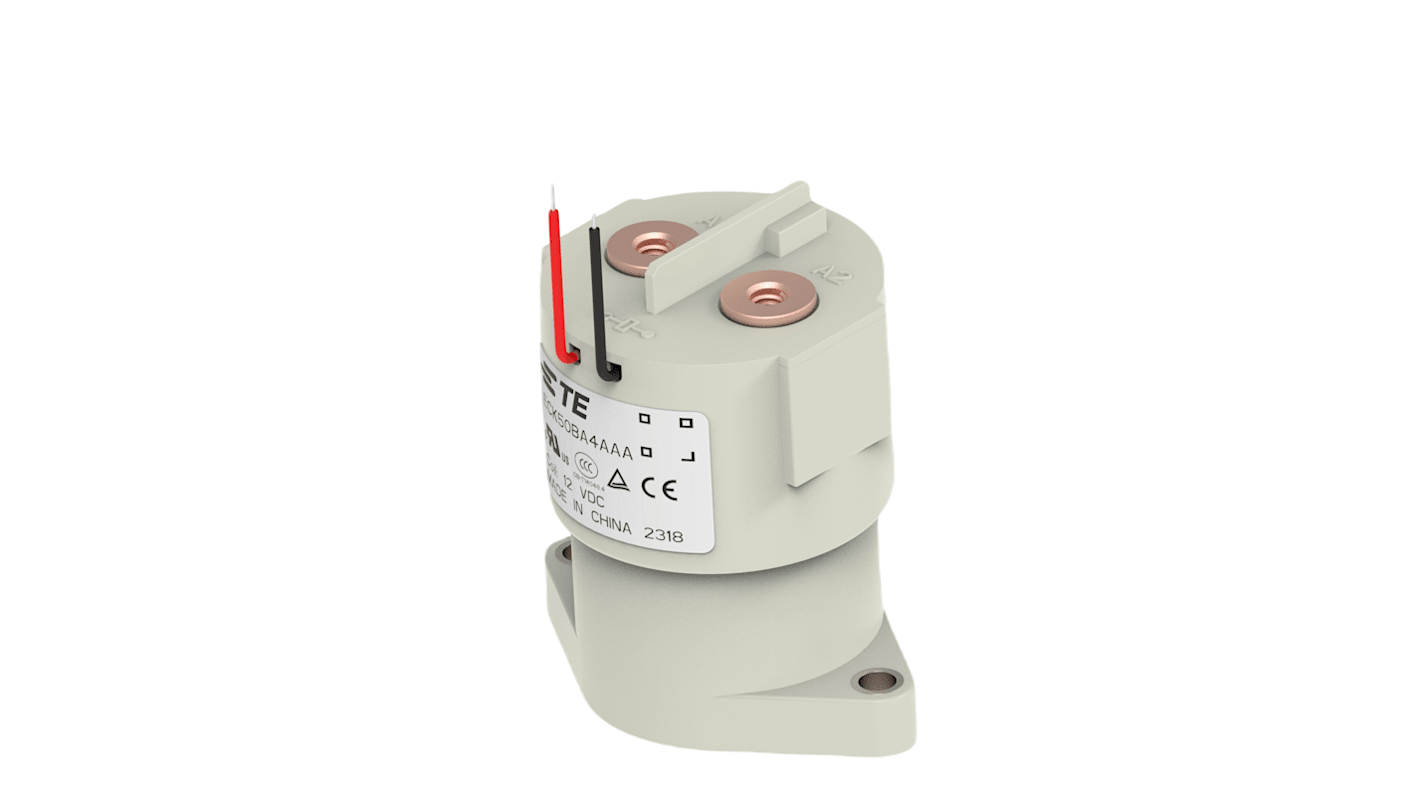

TE Connectivity ECK50B Contactor, 12V Coil, 1-Pole, 50 A, 5.5 W, NO, 1kV
- RS Stock No.:
- 181-153
- Mfr. Part No.:
- 2071584-4
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£44.81
(exc. VAT)
£53.77
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 25 unit(s) shipping from 27 April 2026
- Plus 60 unit(s) shipping from 30 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £44.81 |
*price indicative
- RS Stock No.:
- 181-153
- Mfr. Part No.:
- 2071584-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Contactor | |
| Coil Voltage | 12V | |
| Number of Poles | 1 | |
| Contact Voltage | 1kV | |
| Contact Current | 50A | |
| Power Rating | 5.5W | |
| Series | ECK50B | |
| Mount Type | Panel | |
| Function | Undervoltage Monitoring | |
| Normal State Configuration | NO | |
| Auxiliary Contact Configuration | NO | |
| Number of Auxiliary Contacts | 1 | |
| Minimum Operating Temperature | -40°C | |
| Contactor Application | EV Charging Applications, High voltage Applications like battery Energy Storage System, Solar Inverter | |
| Operational Current Ie | 50A | |
| Maximum Operating Temperature | 85°C | |
| Width | 35mm | |
| Standards/Approvals | CCC approved, CE:724-00007, TUV:R50616669, UL:E82292 | |
| Pole and Throw Configuration | SPST-NO | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Contactor | ||
Coil Voltage 12V | ||
Number of Poles 1 | ||
Contact Voltage 1kV | ||
Contact Current 50A | ||
Power Rating 5.5W | ||
Series ECK50B | ||
Mount Type Panel | ||
Function Undervoltage Monitoring | ||
Normal State Configuration NO | ||
Auxiliary Contact Configuration NO | ||
Number of Auxiliary Contacts 1 | ||
Minimum Operating Temperature -40°C | ||
Contactor Application EV Charging Applications, High voltage Applications like battery Energy Storage System, Solar Inverter | ||
Operational Current Ie 50A | ||
Maximum Operating Temperature 85°C | ||
Width 35mm | ||
Standards/Approvals CCC approved, CE:724-00007, TUV:R50616669, UL:E82292 | ||
Pole and Throw Configuration SPST-NO | ||
- COO (Country of Origin):
- CN
The TE Connectivity High voltage DC contactor is designed for control in high voltage applications like battery energy storage system, solar inverters, and EV charging applications. It can be used in 1000VDC voltage systems and the enhanced contacts design provides for high electrical endurance. The contacts provided in this series allows bi directional load and are hermetically sealed with ceramic sealing technology, making it safer and reliable.
Continuous current carrying capacity of up to 50A
Enhanced breaking capacity up to 1000VDC
Auxiliary contact version available
Compatibility with DC-1 utilization category in IEC60947-4-1
