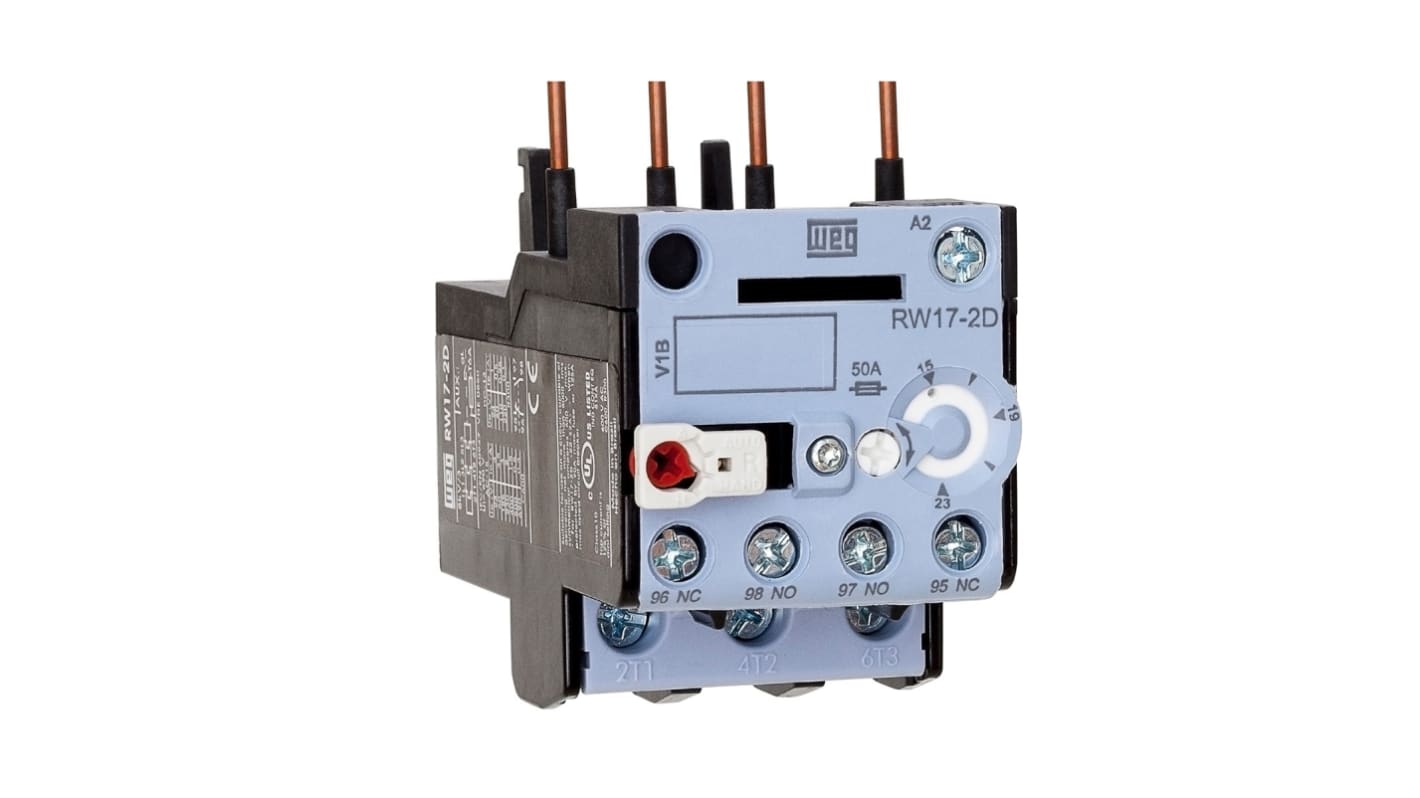

WEG, RW17 Thermal Overload Relay 1 NO/1 NC, 15A F.L.C, 10A, 15 A Contact Rating, 1.4 W 3
- RS Stock No.:
- 122-0763
- Mfr. Part No.:
- RW17-2D3-U015
- Brand:
- WEG
Subtotal (1 unit)*
£30.32
(exc. VAT)
£36.38
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.32 |
*price indicative
- RS Stock No.:
- 122-0763
- Mfr. Part No.:
- RW17-2D3-U015
- Brand:
- WEG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WEG | |
| FLC Motor Rating | 15A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 10, 15A | |
| Series | RW17 | |
| Mount Type | DIN Rail | |
| Pole and Throw Configuration | 3 | |
| Power Rating | 1.4W | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20, IP10 | |
| Width | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 10 to 15 A | |
| Contact Voltage | 690V ac | |
| Maximum Operating Temperature | 60°C | |
| Length | 71.5mm | |
| Standards/Approvals | IEC 60034-30-1, EU Regulation 640/2009, Directive 2009/125/EC, IEC 60947-1, IEC 60947-4-1 | |
| Depth | 82.5mm | |
| Supply Voltage | 100, 50V | |
| Select all | ||
|---|---|---|
Brand WEG | ||
FLC Motor Rating 15A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 10, 15A | ||
Series RW17 | ||
Mount Type DIN Rail | ||
Pole and Throw Configuration 3 | ||
Power Rating 1.4W | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Automatic & Manual | ||
IP Rating IP20, IP10 | ||
Width 45mm | ||
Minimum Operating Temperature -25°C | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 10 to 15 A | ||
Contact Voltage 690V ac | ||
Maximum Operating Temperature 60°C | ||
Length 71.5mm | ||
Standards/Approvals IEC 60034-30-1, EU Regulation 640/2009, Directive 2009/125/EC, IEC 60947-1, IEC 60947-4-1 | ||
Depth 82.5mm | ||
Supply Voltage 100, 50V | ||
RoHS Status: Exempt
Thermal Overload Relays - RW Series
Tripping class 10
Phase failure sensitivity
Hand, Automatic or manual reset selectable
