Adaptaflex, 25 mm Nominal Diameter, Polyvinyl Chloride, Galvanised Steel, Black
- RS Stock No.:
- 123-743
- Mfr. Part No.:
- 7TCA296030R0190 SPL25/10M
- Brand:
- Adaptaflex
Bulk discount available
Subtotal (1 reel of 10 metres)*
£174.53
(exc. VAT)
£209.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 43 unit(s) ready to ship
- Plus 10 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 9 | £174.53 | £17.453 |
| 10 - 49 | £165.80 | £16.58 |
| 50 + | £157.08 | £15.708 |
*price indicative
- RS Stock No.:
- 123-743
- Mfr. Part No.:
- 7TCA296030R0190 SPL25/10M
- Brand:
- Adaptaflex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Adaptaflex | |
| Nominal Diameter | 25mm | |
| Product Type | Conduit | |
| Coating Material | Polyvinyl Chloride | |
| Material | Galvanised Steel | |
| Series | SPL | |
| Colour | Black | |
| Length | 10m | |
| IP Rating | IP66, IP67, IP69K, IP68 | |
| Thread Size | M25 | |
| Minimum Operating Temperature | -5°C | |
| Resistance Features | Oil Resistant | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CE | |
| Hazardous Area Certification | NO | |
| Minimum Bend Radius | 110mm | |
| Select all | ||
|---|---|---|
Brand Adaptaflex | ||
Nominal Diameter 25mm | ||
Product Type Conduit | ||
Coating Material Polyvinyl Chloride | ||
Material Galvanised Steel | ||
Series SPL | ||
Colour Black | ||
Length 10m | ||
IP Rating IP66, IP67, IP69K, IP68 | ||
Thread Size M25 | ||
Minimum Operating Temperature -5°C | ||
Resistance Features Oil Resistant | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CE | ||
Hazardous Area Certification NO | ||
Minimum Bend Radius 110mm | ||
- COO (Country of Origin):
- GB

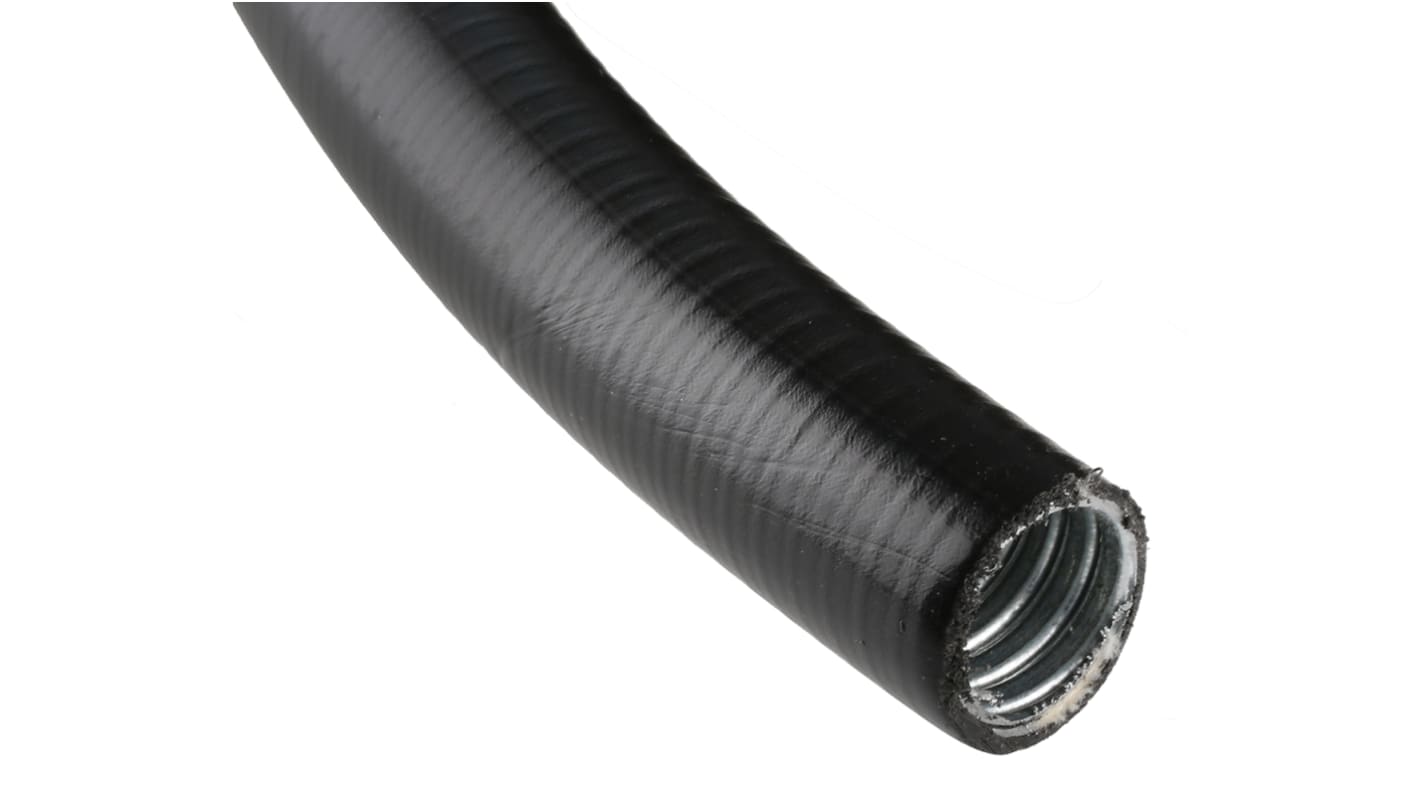

Adaptaflex Conduit, PVC Coating, 110mm Minimum Bend Radius - SPL Series - 7TCA296030R0190 SPL25/10M
Run cables confidently in almost any challenging environment with this protective conduit from Adaptaflex. It's made of a helically wound galvanised steel strip that combines flexibility with impressive compression strength of 2500N/50mm and tensile strength of 1600N. This keeps it pliant enough for running leads around corners and gives it much-needed crush resistance so it will hold its own when fed into solid obstacles such as walls. A hardwearing PVC cover also makes the conduit resistant to oil and UV, so it's handy for shielding your wires from damage, whether used outdoors or in specialised applications in indoor settings.
Features & Benefits
• Broad operating temperature from -20°C to +105°C, so handy in harsh environments
• Flame-retardant, so won't contribute to the spread of flames in case of a fire
• Robust when in contact with chemicals, as well as oils, acids and petroleum
Applications
• Construction industry
• Electrical installations
• Data centres
• Marine applications
Does this conduit come with an IP rating?
When you team it with a compatible sealed brassed fitting, such as a swivel fitting (123-800), the assembly has an IP67 rating. This means it's dust and waterproof and withstands being submerged in up to 1m of liquid for up to 30 minutes.
