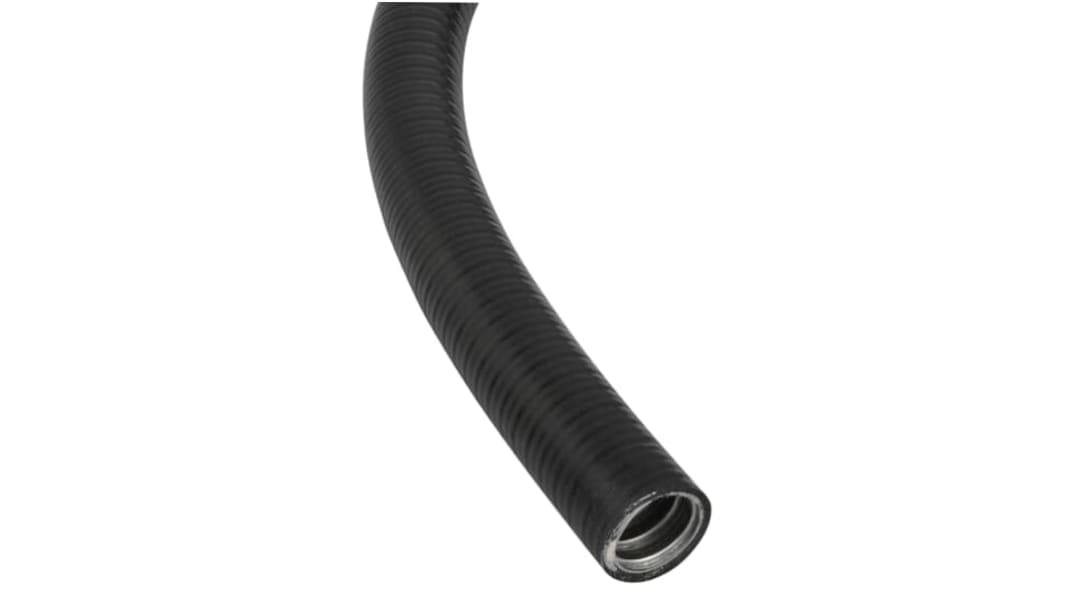

Adaptaflex SPL PVC Coated Galvanised Steel Liquid Tight Conduit Black 20mm 10m

  • RS Stock No. 123-737
  • Mfr. Part No. SPL20/10M
  • Brand Adaptaflex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Liquid Tight Conduit

Liquid tight is a smooth covered flexible, waterproof, galvanised steel conduit with a heavy duty oil resistant PVC cover. UL recognised and Lloyd's registered approved, its typically found in Machining, Processing or Handling environments requiring high mechanical strength, oil resistance, IP67 ingress protection and where high temperatures are present.,A selection of straight swivel or 90° screw in nickel plated brass fittings with integral face seal provide a IP67 rating. The swivel fittings swivel independently of conduit until tightened to assist installation.

IP67 (with Fittings)
-20°C to +105°C operating temperature
Non Flame propagating to EN50086
UV resistant
Compression strength 2500N/50mm
1600N Tensile Strength

Specifications
Attribute Value
Nominal Diameter 20mm
Material Galvanised Steel
Conduit Type Liquid Tight
Colour Black
Outer Diameter 21.1mm
Interior Diameter 15.9mm
Length 10m
IP Rating IP66, IP67, IP68, IP69K
Coating Material PVC
Series SPL
Maximum Operating Temperature +105°C
Minimum Operating Temperature -5°C
Minimum Bend Radius 80 mm
39 In stock for FREE next working day delivery
Price 1 Reel of 10 Metre(s)
£ 85.49
(exc. VAT)
£ 102.59
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 - 9
£85.49
£8.549
10 - 49
£81.21
£8.121
50 +
£76.94
£7.694
*price indicative
