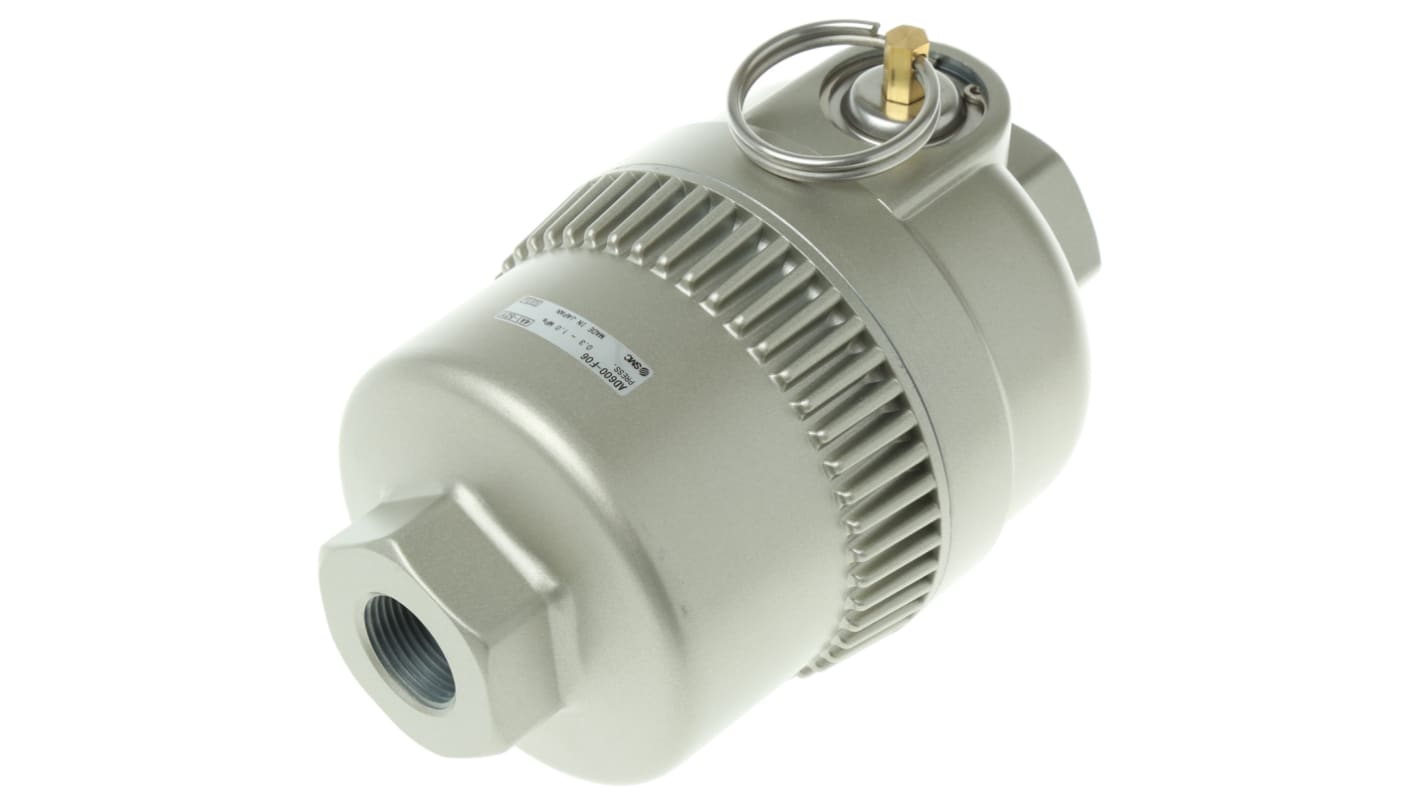

SMC G 3/4 Automatic Pneumatic Drain 400cm³/min, AD600-06
- RS Stock No.:
- 234-2003
- Mfr. Part No.:
- AD600-06
- Brand:
- SMC
Save 9% when you buy 10 units
Subtotal (1 unit)*
£140.85
(exc. VAT)
£169.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £140.85 |
5 - 9 | £132.56 |
10 + | £127.03 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£60.06
(exc. VAT)
£72.07
(inc. VAT)
- RS Stock No.:
- 234-2003
- Mfr. Part No.:
- AD600-06
- Brand:
- SMC
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Inlet Port | G 3/4 | |
Drain Type | Automatic | |
Outlet Port | G 3/4 | |
Manufacturer Series | AD | |
Bowl Capacity | 400cm³/min | |
Dimensions | 183 x 112 x 112mm | |
Minimum Operating Temperature | +5°C | |
Height | 183mm | |
Minimum Operating Pressure | 3bar | |
Width | 112mm | |
Inlet Port Thread Standard | G | |
Maximum Operating Temperature | +60°C | |
Depth | 112mm | |
Maximum Operating Pressure | 9.9bar | |
Select all | ||
---|---|---|
Brand SMC | ||
Inlet Port G 3/4 | ||
Drain Type Automatic | ||
Outlet Port G 3/4 | ||
Manufacturer Series AD | ||
Bowl Capacity 400cm³/min | ||
Dimensions 183 x 112 x 112mm | ||
Minimum Operating Temperature +5°C | ||
Height 183mm | ||
Minimum Operating Pressure 3bar | ||
Width 112mm | ||
Inlet Port Thread Standard G | ||
Maximum Operating Temperature +60°C | ||
Depth 112mm | ||
Maximum Operating Pressure 9.9bar | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Pneumatic Auto Drain - AD Series
SMC AD series automatic drip leg drain. Automatic drains are an efficient way of removing condensates such as water from your pneumatic system. Removing the chance of emptying being overlooked and reducing the risk of damage to expensive equipment and downtime. Drop leg auto drains can be installed at low points in the system and with the tank to help stop condensation collecting.
Float type automatic drain valve
Bowl capacity 400cc/min (0.7MPa water discharge)
Temperature range -5°C to +60°C
Installed at low points in a compressed air system to drain off water
Bowl capacity 400cc/min (0.7MPa water discharge)
Temperature range -5°C to +60°C
Installed at low points in a compressed air system to drain off water
