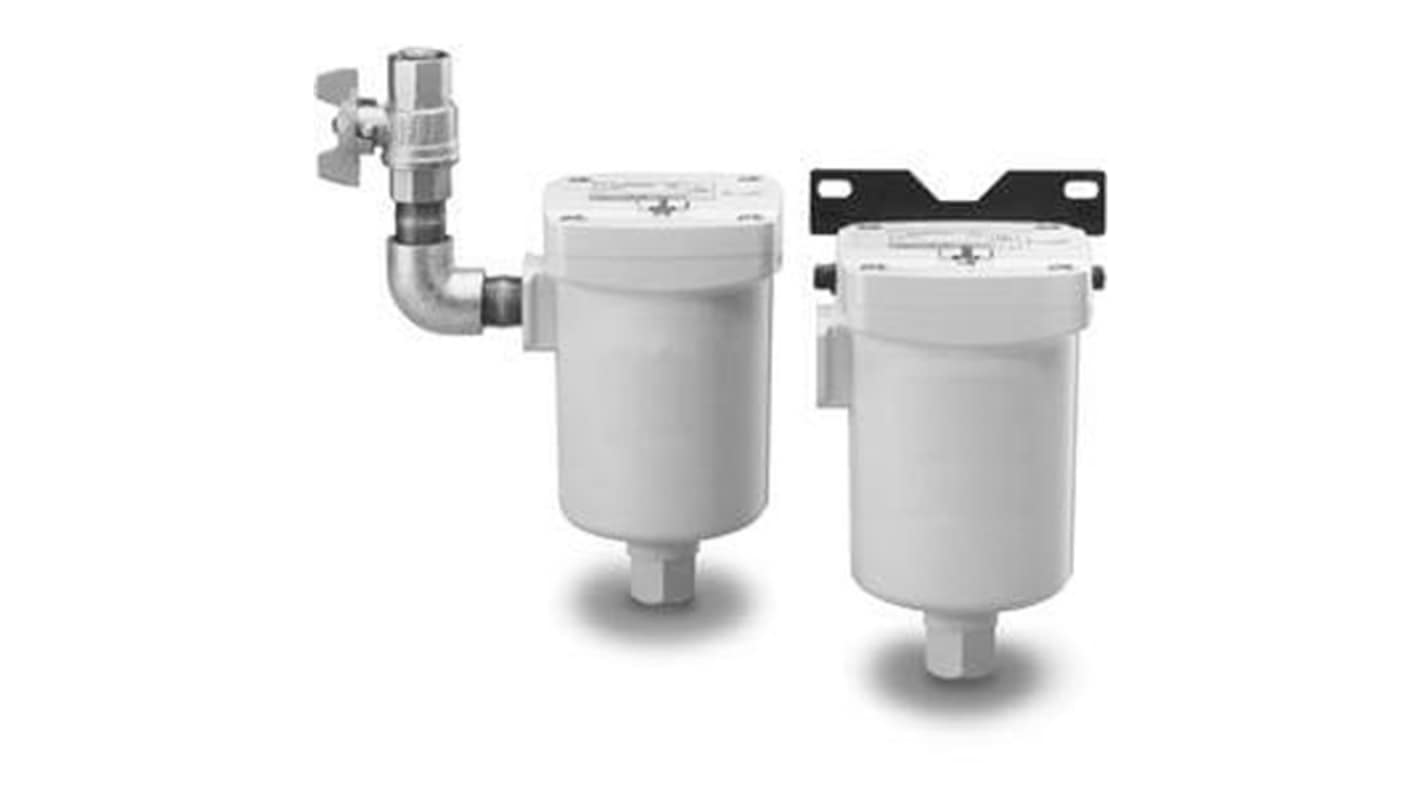

SMC Automatic G Condensate Drain 400 cm³/min, ADH4000-F04
- RS Stock No.:
- 398-261
- Mfr. Part No.:
- ADH4000-F04
- Brand:
- SMC
Subtotal (1 unit)*
£192.60
(exc. VAT)
£231.12
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £192.60 |
*price indicative
- RS Stock No.:
- 398-261
- Mfr. Part No.:
- ADH4000-F04
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Condensate Drain | |
| Drain Type | Automatic | |
| Bowl Capacity | 400cm³/min | |
| Minimum Operating Pressure | 0.1MPa | |
| Outlet Thread Standard | G | |
| Minimum Operating Temperature | 5°C | |
| Outlet Port Thread Size | 0.5in | |
| Inlet Port Thread Size | G | |
| Depth | 108mm | |
| Width | 100mm | |
| Standards/Approvals | No | |
| Height | 171mm | |
| Maximum Operating Pressure | 1.6 Mpa | |
| Maximum Operating Temperature | 60°C | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Condensate Drain | ||
Drain Type Automatic | ||
Bowl Capacity 400cm³/min | ||
Minimum Operating Pressure 0.1MPa | ||
Outlet Thread Standard G | ||
Minimum Operating Temperature 5°C | ||
Outlet Port Thread Size 0.5in | ||
Inlet Port Thread Size G | ||
Depth 108mm | ||
Width 100mm | ||
Standards/Approvals No | ||
Height 171mm | ||
Maximum Operating Pressure 1.6 Mpa | ||
Maximum Operating Temperature 60°C | ||
- COO (Country of Origin):
- JP
The SMC Heavy duty auto drain can be maintained without changing existing piping. There is no need for electric power and no waste of air.
Float style drain allows automatic drain discharge without electric power
