SICK, DOS Compact Power Connector Cable, 250V 4A
- RS Stock No.:
- 285-1228
- Mfr. Part No.:
- DOS-1204-GQU8 / 6053328
- Brand:
- SICK
Subtotal (1 unit)*
£16.34
(exc. VAT)
£19.61
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.34 |
*price indicative
- RS Stock No.:
- 285-1228
- Mfr. Part No.:
- DOS-1204-GQU8 / 6053328
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Compact Power Connector | |
| Voltage | 250V | |
| Current | 4A | |
| Mount Type | Cable | |
| Connector Gender | Male | |
| Housing Material | Copper Zinc, Nickel Plated Brass | |
| Cable Diameter | 4mm | |
| Minimum Operating Temperature | -25°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | UL | |
| Series | DOS | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Compact Power Connector | ||
Voltage 250V | ||
Current 4A | ||
Mount Type Cable | ||
Connector Gender Male | ||
Housing Material Copper Zinc, Nickel Plated Brass | ||
Cable Diameter 4mm | ||
Minimum Operating Temperature -25°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals UL | ||
Series DOS | ||
- COO (Country of Origin):
- DE
Overview

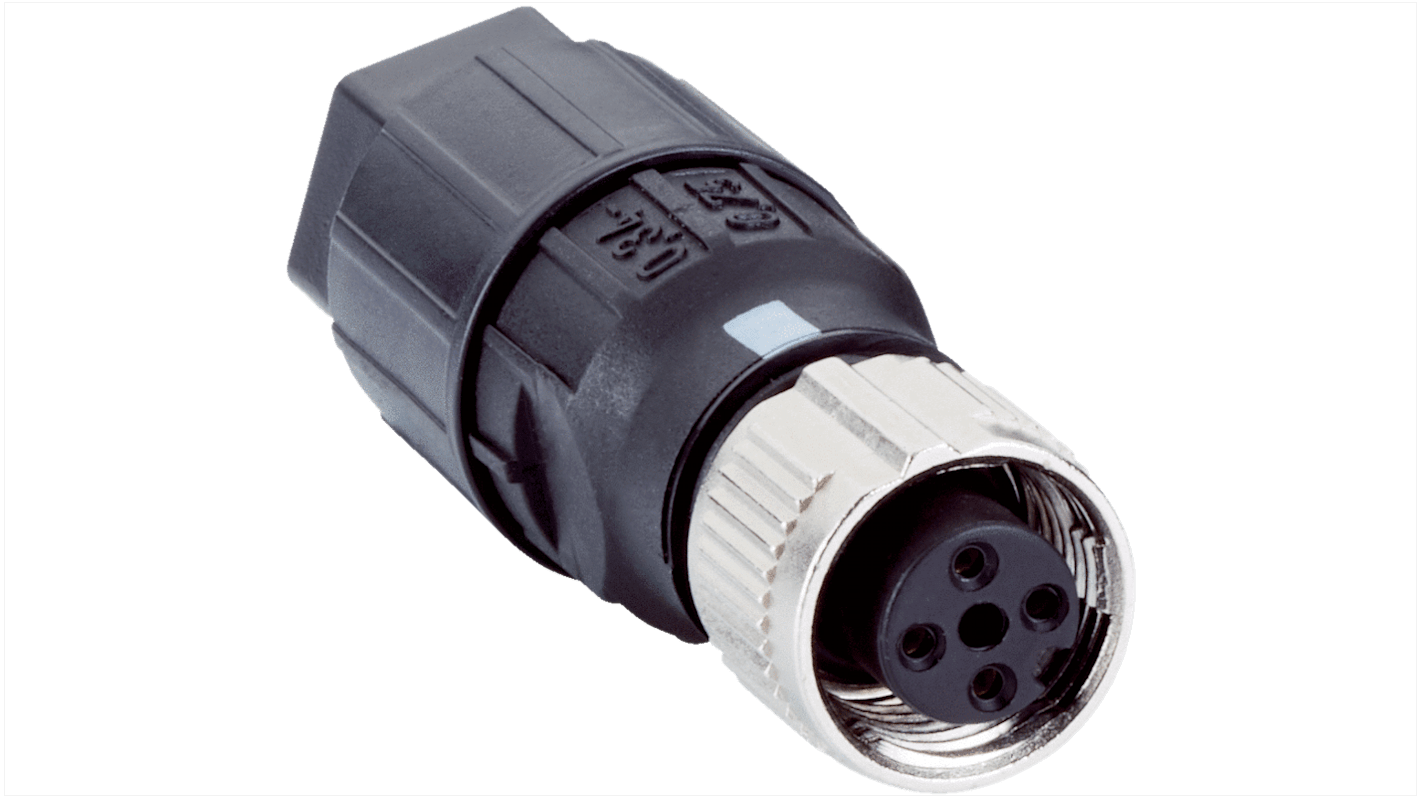

The Field attachable connector features a female M12 connector with a straight, 4 pin configuration at Head A. The connection type involves cutting technology for convenient attachment.
The locking nut is made of CuZn, nickel-plated brass, and the recommended tightening torque is 0.4 Nm, ensuring secure fastening. The connectors support a permitted diameter ranging from 4 mm to 8 mm. They accommodate cross sections from 0.34 mm² to 0.75 mm². This connector has IP65 and IP67 enclosure rating.
