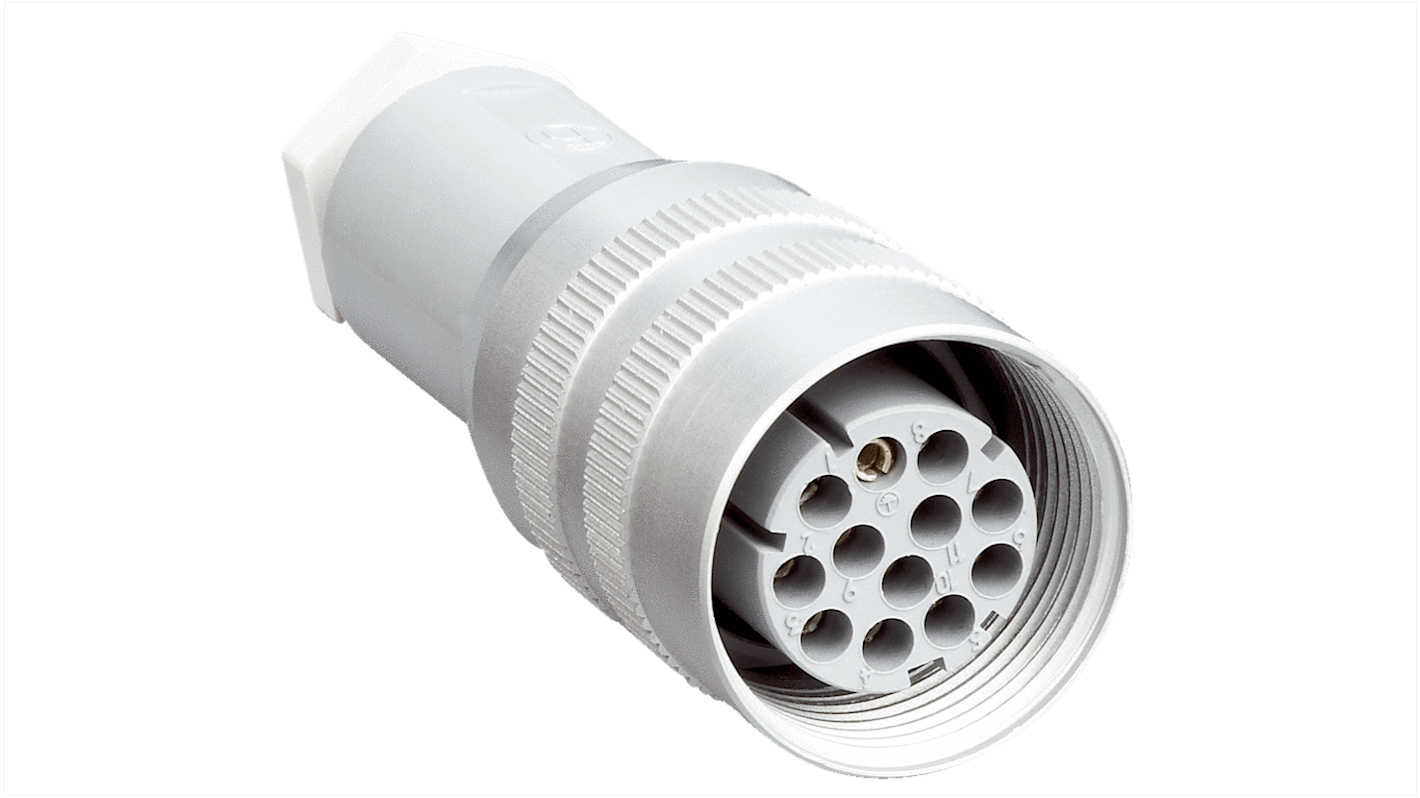

SICK, DOS Compact Power Connector Cable Mount Plug, 5A, 60 V
- RS Stock No.:
- 285-1221
- Mfr. Part No.:
- DOS-0612G000GA3KM6 / 6053198
- Brand:
- SICK
Subtotal (1 unit)*
£38.31
(exc. VAT)
£45.97
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.31 |
*price indicative
- RS Stock No.:
- 285-1221
- Mfr. Part No.:
- DOS-0612G000GA3KM6 / 6053198
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Plug/Socket | Plug | |
| Voltage Rating | 60 V | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Current Rating | 5A | |
| Housing Material | PET | |
| Cable Diameter | 8 → 10mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +90°C | |
| Series | DOS | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Plug/Socket Plug | ||
Voltage Rating 60 V | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Current Rating 5A | ||
Housing Material PET | ||
Cable Diameter 8 → 10mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +90°C | ||
Series DOS | ||
- COO (Country of Origin):
- DE
Overview
The Connector constructed with Head A features a female connector with M26 specifications, presenting a straight design with an impressive 12 pin configuration. The connection is established through reliable crimp contacts, and the connector is constructed from durable PET material in a sleek grey color.
This connector accommodates cable diameters ranging from 8 mm to 10 mm, supporting cross sections up to 0.5 mm². Adhering to safety standards, it boasts a reference voltage of ≤ 60 V AC/DC, with a current loading capacity of ≤ 5 A. With an IP65 enclosure rating and an ambient operating temperature range from -40 °C to +90 °C.
