Broadcom Fibre Optic Transceiver, AFBR-1624Z, AFBR-2624Z - AFBR-0548Z

  • RS Stock No. 910-7084
  • Mfr. Part No. AFBR-0548Z
  • Brand Broadcom
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Evaluation Kit AFBR-0548Z for AFBR-1624Z/2624Z Fibre Optic Components

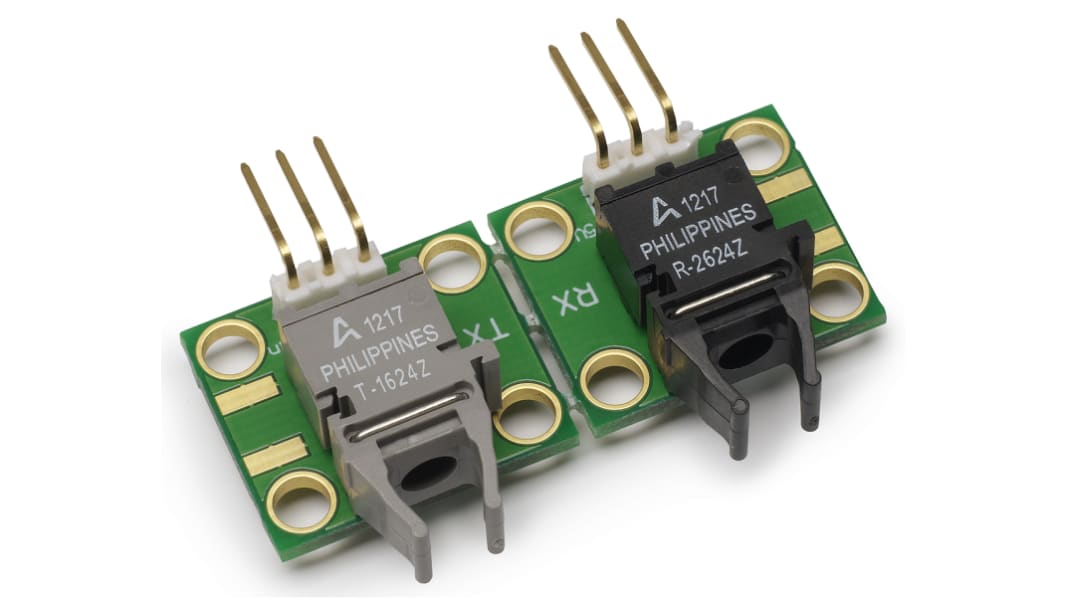

The AFBR-0548Z Evaluation Kit from Avago Technologies evaluates the AFBR-1624Z fibre optic transmitter and receiver AFBR-2624Z. The Evaluation board incorporates passive components, TTL input/output connectors. It is designed for test set-up, letting you use the 650nm versatile link fibre optic AFBR-1624Z and AFBR-2624Z in an existing application. The transmitter and receiver PCBs can be separated on the dotted line for unidirectional links. If more of a complete system analysis is required, then, you could use the evaluation board AFBR-0546 (9107087).

Evaluation Kit AFBR-0548Z contains:
Evaluation board
TX: AFBR-1624Z / RX: AFBR-2624Z
AFBR-1624Z/AFBR-2624Z datasheet
HFBR-RNS001Z: 1 M Black fibre optic cable, Simplex (POF)
User guide

Fibre Optic Evaluation Kits, Avago Technologies

Specifications
Attribute Value
Kit Classification Evaluation Kit
Featured Device AFBR-1624Z, AFBR-2624Z
27 In stock - FREE next working day delivery available
Price Each
£ 30.48
(exc. VAT)
£ 36.58
(inc. VAT)
Units
Per unit
1 - 4
£30.48
5 +
£29.11
