MikroElektronika BT Audio 3 Click AK4430, BM83 Bluetooth Audio Add On Board for mikroBUS socket 2.4 → 2.48GHz
- RS Stock No.:
- 247-5756
- Mfr. Part No.:
- MIKROE-4947
- Brand:
- MikroElektronika
9 In stock - FREE next working day delivery available
Added
Price Each
£34.43
(exc. VAT)
£41.32
(inc. VAT)
| Units | Per unit |
| 1 - 1 | £34.43 |
| 2 - 4 | £33.50 |
| 5 - 9 | £32.62 |
| 10 - 24 | £31.78 |
| 25 + | £30.99 |
- RS Stock No.:
- 247-5756
- Mfr. Part No.:
- MIKROE-4947
- Brand:
- MikroElektronika
Technical Reference
Legislation and Compliance
Product Details

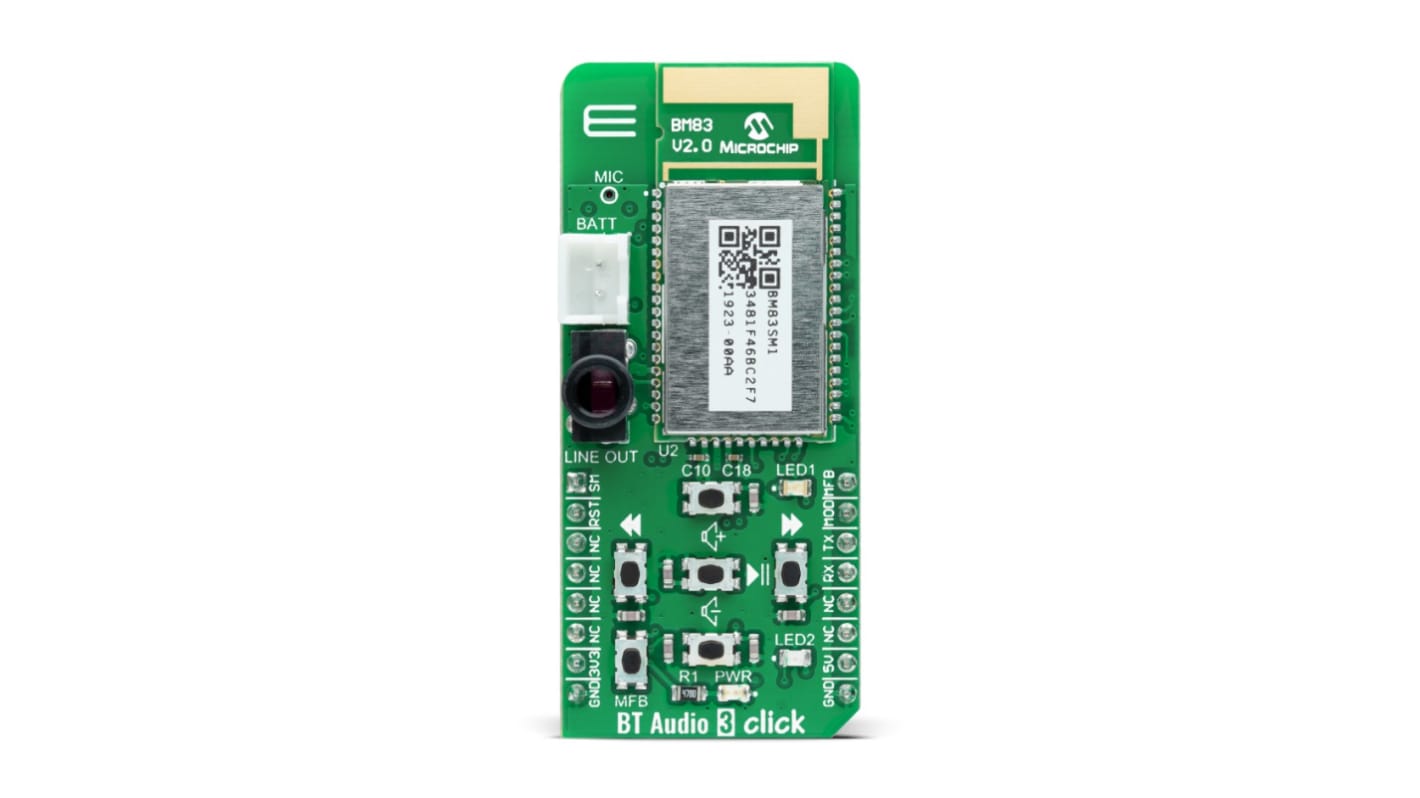

The MikroElektronika BT Audio 3 Click is a compact add on board with high performing voice and audio post processing capability for bluetooth audio applications. This board features the BM83 which is a fully certified bluetooth v5.0 stereo audio module from Microchip. The BM83 contains an on board bluetooth stack and audio profiles and supports 24 bit high resolution audio formats to enable high fidelity wireless audio This Click board is suitable for Bluetooth audio applications, more precisely, for a smartphone streaming audio to a speaker.
Stereo audio module is built around the IS2083BM SoC
Qualified for Bluetooth v5.0
Inter IC Sound interface
High resolution up to 24 bit
96 kHz audio data format and noise reduction
Acoustic echo cancellation AEC and EQ filtering
Qualified for Bluetooth v5.0
Inter IC Sound interface
High resolution up to 24 bit
96 kHz audio data format and noise reduction
Acoustic echo cancellation AEC and EQ filtering
Specifications
Attribute | Value |
|---|---|
| Classification | Add On Board |
| RF Technology | Bluetooth Audio |
| Kit Classification | Add On Board |
| Technology | BLE 5.0 |
| For Use With | mikroBUS socket |
| Featured Device | AK4430, BM83 |
| Frequency | 2.4 → 2.48GHz |
| Kit Name | BT Audio 3 Click |
