STMicroelectronics STEVAL-IDB008V2 Bluetooth Evaluation Kit for BlueNRG-2 8 MHz STEVAL-IDB008V2
- RS Stock No.:
- 175-0684
- Mfr. Part No.:
- STEVAL-IDB008V2
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£59.45
(exc. VAT)
£71.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10 unit(s) shipping from 01 June 2026
- Plus 11 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £59.45 |
| 5 - 9 | £57.93 |
| 10 + | £56.49 |
*price indicative
- RS Stock No.:
- 175-0684
- Mfr. Part No.:
- STEVAL-IDB008V2
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| RF Technology | Bluetooth | |
| Kit Classification | Evaluation Kit | |
| Product Type | Communication & Wireless Development Tool | |
| Technology | USB | |
| For Use With | BlueNRG-2 | |
| Featured Device | STEVAL-IDB008V2 | |
| Maximum Frequency | 8MHz | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
RF Technology Bluetooth | ||
Kit Classification Evaluation Kit | ||
Product Type Communication & Wireless Development Tool | ||
Technology USB | ||
For Use With BlueNRG-2 | ||
Featured Device STEVAL-IDB008V2 | ||
Maximum Frequency 8MHz | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- IT

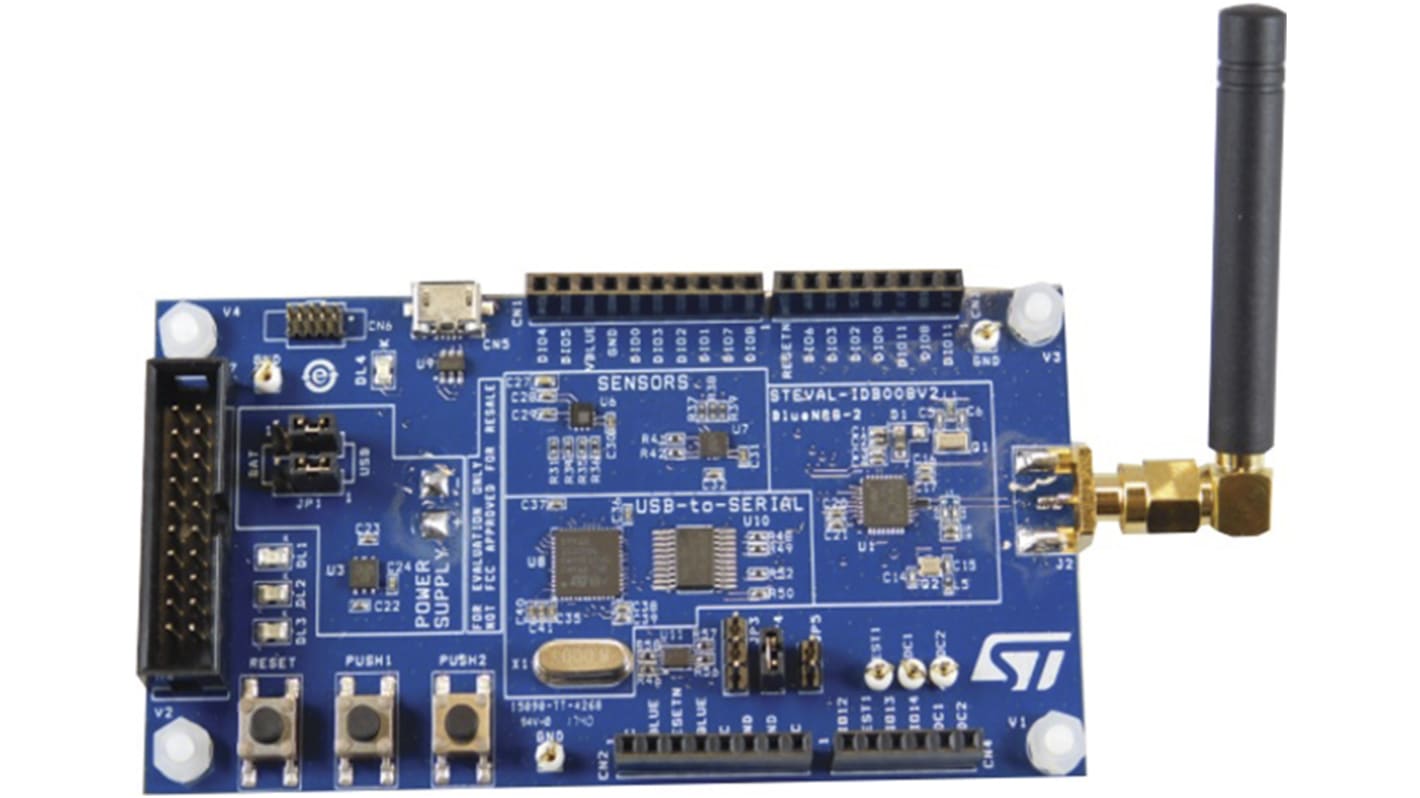

The STEVAL-IDB008V2 evaluation platform is based on the BlueNRG-2, low power Bluetooth® smart system on chip with 256 KB Flash, 24 KB RAM, compliant with the Bluetooth® SMART v5.0 specification, supporting master, slave and simultaneous master-and-slave roles and the Bluetooth low energy extended data length feature.
The STEVAL-IDB008V2 also provides a set of hardware resources for implementing a wide range of application scenarios: sensor data (accelerometer, pressure and temperature sensor), remote control (buttons and LEDs) and debug message management through USB virtual COM.
Bluetooth® SMART board based on the BlueNRG-1 Bluetooth low energy system on chip
Associated BlueNRG-1 development kit SW package including firmware and documentation
Up to +8 dBm available output power (at antenna connector)
Excellent receiver sensitivity (-88 dBm)
