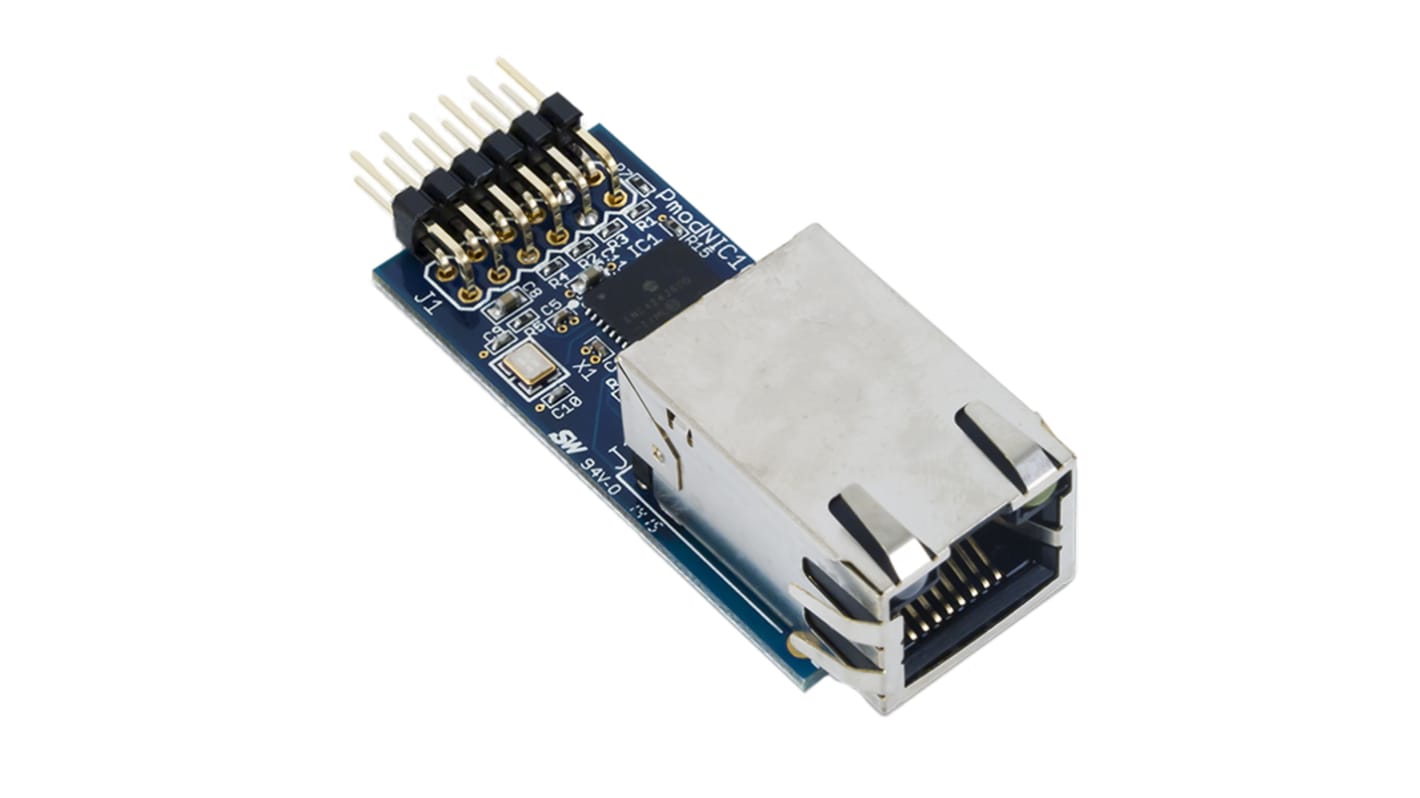

Digilent Pmod NIC100 MAC Network Interface Controller 410-208

  • RS Stock No. 164-3483
  • Mfr. Part No. 410-208
  • Brand Digilent
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The Pmod NIC100 is designed to provide a complete Ethernet interface featuring the Microchip® ENC424J600 Stand-Alone Ethernet Controller. The ENC424J600 provides integrated MAC and PHY support, so Ethernet functionality can be added to any system board through the SPI protocol

IEEE 802.3 compatible Ethernet controller
10/100 Mb/s data rates
MAC and PHY support
10BASE-T support and 100Base-TX support
Small PCB size for flexible designs 1.8“ ´ 0.8” (4.6 cm ´ 2.0 cm)
12-pin Pmod connector with SPI interface
Follows Digilent Pmod Interface Specification Type 2A

Specifications
Attribute Value
Classification Network Interface Controller
Technology MAC
Kit Classification Module
Kit Name Pmod NIC100
16 In stock - FREE next working day delivery available
Price Each
£ 15.32
(exc. VAT)
£ 18.38
(inc. VAT)
Units
Per unit
1 +
£15.32
