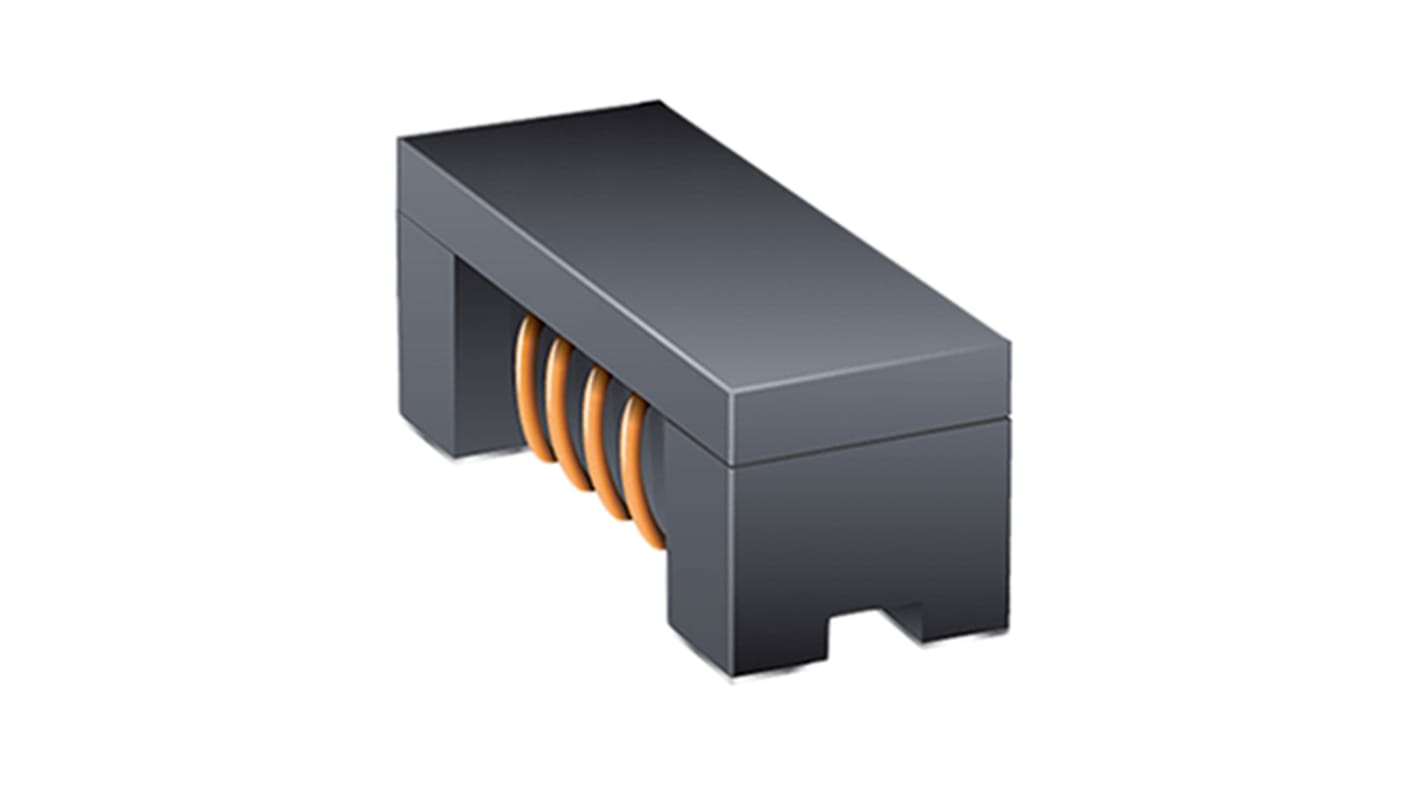

Bourns 230 mA Common Mode Choke 0.65Ω
- RS Stock No.:
- 905-4722
- Mfr. Part No.:
- SRF3216A-102Y
- Brand:
- Bourns
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 905-4722
- Mfr. Part No.:
- SRF3216A-102Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Series | SRF3216A | |
| Impedance | 1000 Ω | |
| Test Frequency | 100 MHz | |
| DC Resistance | 0.65Ω | |
| Maximum Current | 230 mA | |
| Dimensions | 3.2 x 1.6 x 2mm | |
| Operating Temperature Range | -40°C → +125°C | |
| Automotive Standard | AEC-Q200 | |
| Mounting Type | Surface Mount | |
| Termination Style | Surface Mount | |
| Depth | 1.6mm | |
| Length | 3.2mm | |
| Height | 2mm | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Series SRF3216A | ||
Impedance 1000 Ω | ||
Test Frequency 100 MHz | ||
DC Resistance 0.65Ω | ||
Maximum Current 230 mA | ||
Dimensions 3.2 x 1.6 x 2mm | ||
Operating Temperature Range -40°C → +125°C | ||
Automotive Standard AEC-Q200 | ||
Mounting Type Surface Mount | ||
Termination Style Surface Mount | ||
Depth 1.6mm | ||
Length 3.2mm | ||
Height 2mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Bourns SRF3216A Series SMD Common Mode Chokes (AEC-Q200 Qualified)
Bourns SRF3216A common mode chokes are constructed with a ferrite core and are bifilar wound. This series is able to suppress EMI signals over a broad frequency range.
These common mode chokes are AEC-Q200 qualified and ideal for noise filtering in automotive electronics. Other suitable applications include CANbus, data and signal lines, telecom devices and consumer electronics.
These common mode chokes are AEC-Q200 qualified and ideal for noise filtering in automotive electronics. Other suitable applications include CANbus, data and signal lines, telecom devices and consumer electronics.
Features and Benefits:
A shielded construction ensures low radiation
Impedance range of 90 Ω to 2200 Ω
RoHS compliant and halogen free
A shielded construction ensures low radiation
Impedance range of 90 Ω to 2200 Ω
RoHS compliant and halogen free
Bourns SMD Common Mode Chokes
