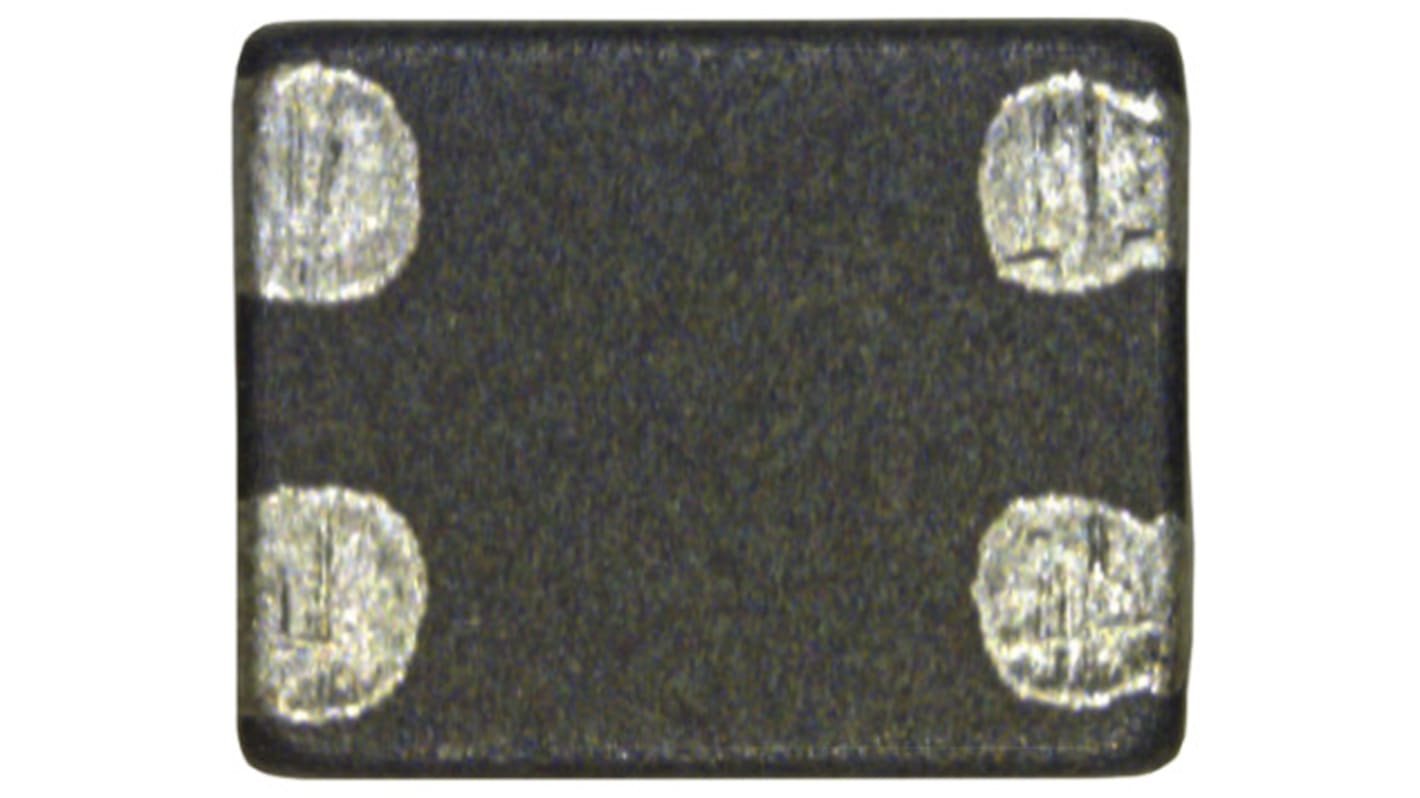

Murata 110 mA Common Mode Choke 3.1Ω

View all Common Mode Chokes
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
839-0875
Mfr. Part No.:
DLP11SN201HL2L
Brand:
Murata
Find similar products by selecting one or more attributes.
Select all

Brand

Murata

Series

DLP11S

Impedance

200 Ω

Test Frequency

100 MHz

DC Resistance

3.1Ω

Maximum Current

110 mA

Dimensions

1.25 x 1 x 0.82mm

Operating Temperature Range

-40°C → +85°C

Number of Lines

2

Mounting Type

Surface Mount

Termination Style

Solder Pad

Package/Case

0504

Minimum Operating Temperature

-40°C

Depth

1mm

Maximum Operating Temperature

+85°C

Height

0.82mm

Length

1.25mm

COO (Country of Origin):
JP

Murata 0504 DLP11S Series SMD Common Mode Chokes


DLP11S series enables noise suppression for differential signal line without distortion in high-speed signal transmission due to its high coupling. The DLP11S series high cutoff frequency is suitable for high speed differential signal line such as HDMI.

Small size and tight dimensional tolerance Size: 1.25x1.0x0.82mm Tolerance: +-0.1mm
Useful impedance line-up from 67 ohm to 330 ohm
DLP11SN_HL2, DLP11SA series match with line impedance

Applications


Common mode noise suppression of high speed differential signal lines for USB, IEEE1394, LVDS

Note PCs, PDAs
Cellular phones
Digital Still Cameras, Digital Video Cameras


Murata SMD Common Mode Chokes
