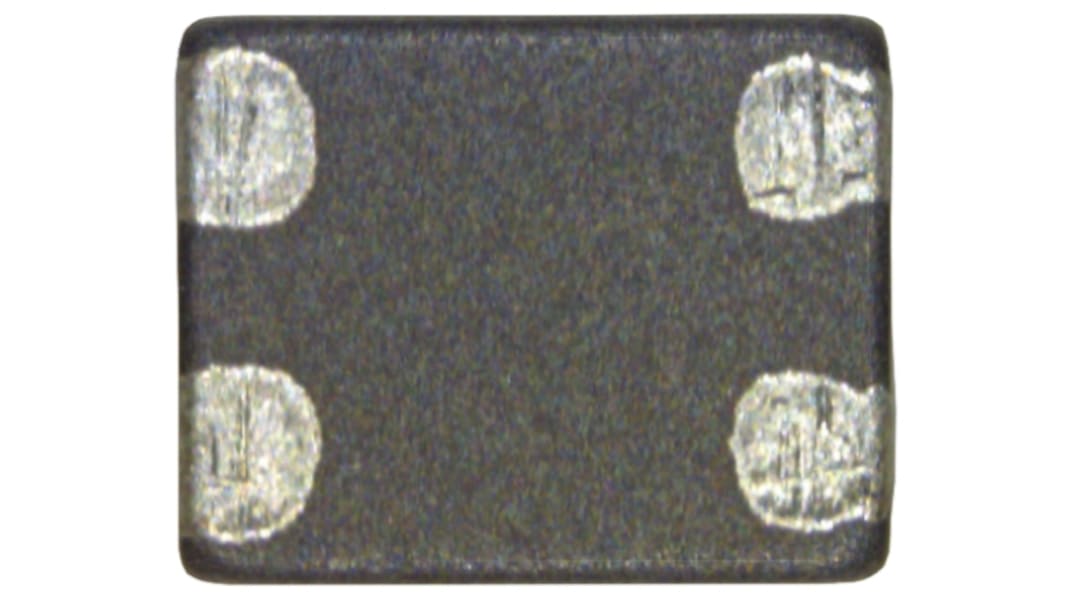

Murata 150 mA Common Mode Choke 1.5Ω
- RS Stock No.:
- 724-1652
- Mfr. Part No.:
- DLP11SN900HL2L
- Brand:
- Murata
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 724-1652
- Mfr. Part No.:
- DLP11SN900HL2L
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Murata | |
Series | DLP11S | |
Impedance | 90 Ω | |
Test Frequency | 100 MHz | |
DC Resistance | 1.5Ω | |
Maximum Current | 150 mA | |
Dimensions | 1.25 x 1 x 0.82mm | |
Operating Temperature Range | -40°C → +85°C | |
Mounting Type | Surface Mount | |
Termination Style | Solder Pad | |
Package/Case | 0504 | |
Height | 0.82mm | |
Length | 1.25mm | |
Maximum Operating Temperature | +85°C | |
Depth | 1mm | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Murata | ||
Series DLP11S | ||
Impedance 90 Ω | ||
Test Frequency 100 MHz | ||
DC Resistance 1.5Ω | ||
Maximum Current 150 mA | ||
Dimensions 1.25 x 1 x 0.82mm | ||
Operating Temperature Range -40°C → +85°C | ||
Mounting Type Surface Mount | ||
Termination Style Solder Pad | ||
Package/Case 0504 | ||
Height 0.82mm | ||
Length 1.25mm | ||
Maximum Operating Temperature +85°C | ||
Depth 1mm | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- JP
Murata 0504 DLP11S Series SMD Common Mode Chokes
DLP11S series enables noise suppression for differential signal line without distortion in high-speed signal transmission due to its high coupling. The DLP11S series high cutoff frequency is suitable for high speed differential signal line such as HDMI.
Small size and tight dimensional tolerance Size: 1.25x1.0x0.82mm Tolerance: +-0.1mm
Useful impedance line-up from 67 ohm to 330 ohm
DLP11SN_HL2, DLP11SA series match with line impedance
Useful impedance line-up from 67 ohm to 330 ohm
DLP11SN_HL2, DLP11SA series match with line impedance
Applications
Common mode noise suppression of high speed differential signal lines for USB, IEEE1394, LVDS
Note PCs, PDAs
Cellular phones
Digital Still Cameras, Digital Video Cameras
Cellular phones
Digital Still Cameras, Digital Video Cameras
Murata SMD Common Mode Chokes
