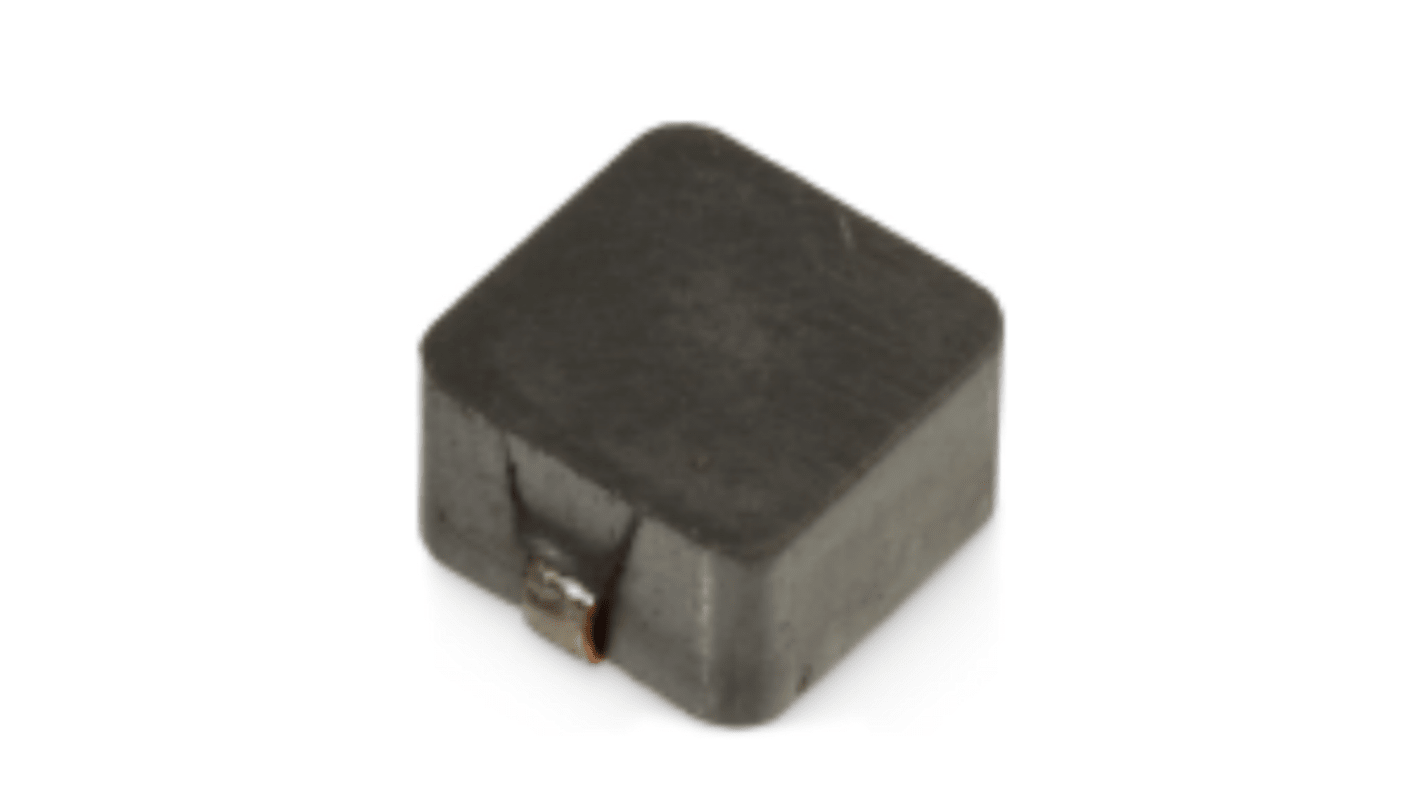

TRACOPOWER 2.2 μH 11 A Common Mode Choke 12 mΩ
- RS Stock No.:
- 249-6715
- Mfr. Part No.:
- TCK-097
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£5.60
(exc. VAT)
£6.72
(inc. VAT)
Add 10 units to get free delivery
In Stock
- 47 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.60 |
| 5 - 9 | £5.42 |
| 10 - 24 | £5.26 |
| 25 - 49 | £5.04 |
| 50 + | £4.81 |
*price indicative
- RS Stock No.:
- 249-6715
- Mfr. Part No.:
- TCK-097
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Inductance | 2.2 μH | |
| Product Type | Common Mode Choke | |
| Maximum DC Current | 11A | |
| Series | TCK | |
| Impedance | 12mΩ | |
| Test Frequency | 100 kHz | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Inductance Tolerance | ±20 % | |
| Maximum DC Resistance | 12mΩ | |
| Standards/Approvals | No | |
| Length | 6.5mm | |
| Height | 7.6mm | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Inductance 2.2 μH | ||
Product Type Common Mode Choke | ||
Maximum DC Current 11A | ||
Series TCK | ||
Impedance 12mΩ | ||
Test Frequency 100 kHz | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||
Inductance Tolerance ±20 % | ||
Maximum DC Resistance 12mΩ | ||
Standards/Approvals No | ||
Length 6.5mm | ||
Height 7.6mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
The TRACOPOWER TCK-097 is a range of common mode chokes for use with Traco isolated DC-DC converters.
Inductance 2.2 μH ±20% (at 100 kHz / 250 mV)
Impedance (DCR) 12 mOhm max
Rated current 11 A max
Operating temperature -40°C to +125°C
