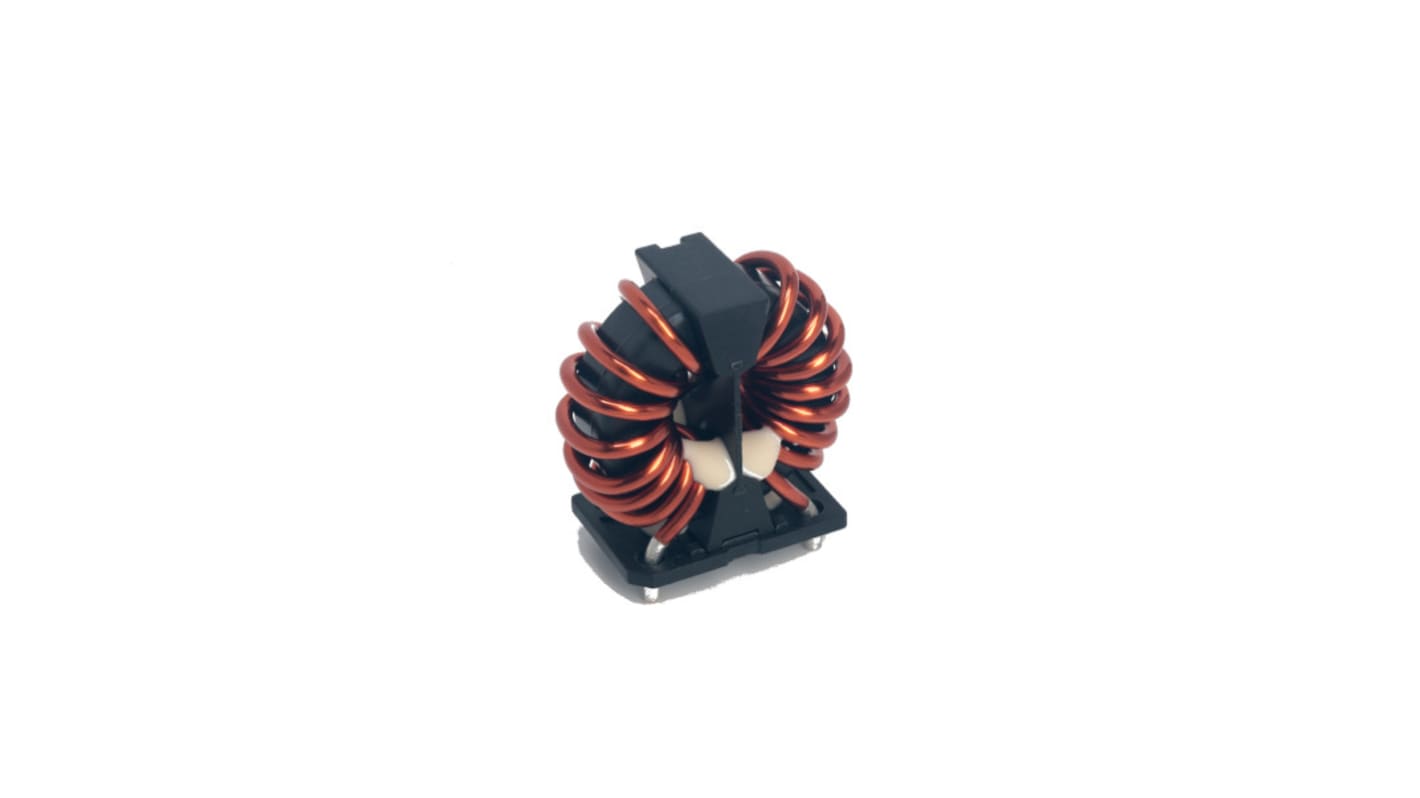

KEMET 700 μH Common Mode Choke 1.68mΩ
- RS Stock No.:
- 242-7762
- Mfr. Part No.:
- SCF29XV-250-2R2A008JH
- Brand:
- KEMET
80 In stock - FREE next working day delivery available
Added
Price Each
£10.83
(exc. VAT)
£13.00
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £10.83 |
| 5 - 9 | £10.18 |
| 10 + | £9.60 |
- RS Stock No.:
- 242-7762
- Mfr. Part No.:
- SCF29XV-250-2R2A008JH
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
Product Details
The KEMET SCF-XV coils are common mode chokes with a wide variety of characteristics for automotive and harsh environment industrial application. These toroidal coils aredesigned with nanocrystalline metal cores and are useful in various noise countermeasure fields. The effective frequency range varies depending on core shape, size and number of windings. This frequency dependence of the magnetic permeability as shown in the figure serves for reference purposes only and it should be tested on the actualdevice to determine its effectiveness.
Nanocrystalline metal core
High rated voltage up to 1,000 V AC/DC
Operating temperature range from -40°C up to +150°C
Ultra-high inductance
Ultra-high permeability
UL 94 V–0 flame retardant rated base and cap
AEC-Q200 qualified
High rated voltage up to 1,000 V AC/DC
Operating temperature range from -40°C up to +150°C
Ultra-high inductance
Ultra-high permeability
UL 94 V–0 flame retardant rated base and cap
AEC-Q200 qualified
Specifications
Attribute | Value |
|---|---|
| Inductance | 700 μH |
| Series | SCF |
| Test Frequency | 40 MHz |
| DC Resistance | 1.68mΩ |
- RS Stock No.:
- 242-7762
- Mfr. Part No.:
- SCF29XV-250-2R2A008JH
- Brand:
- KEMET
