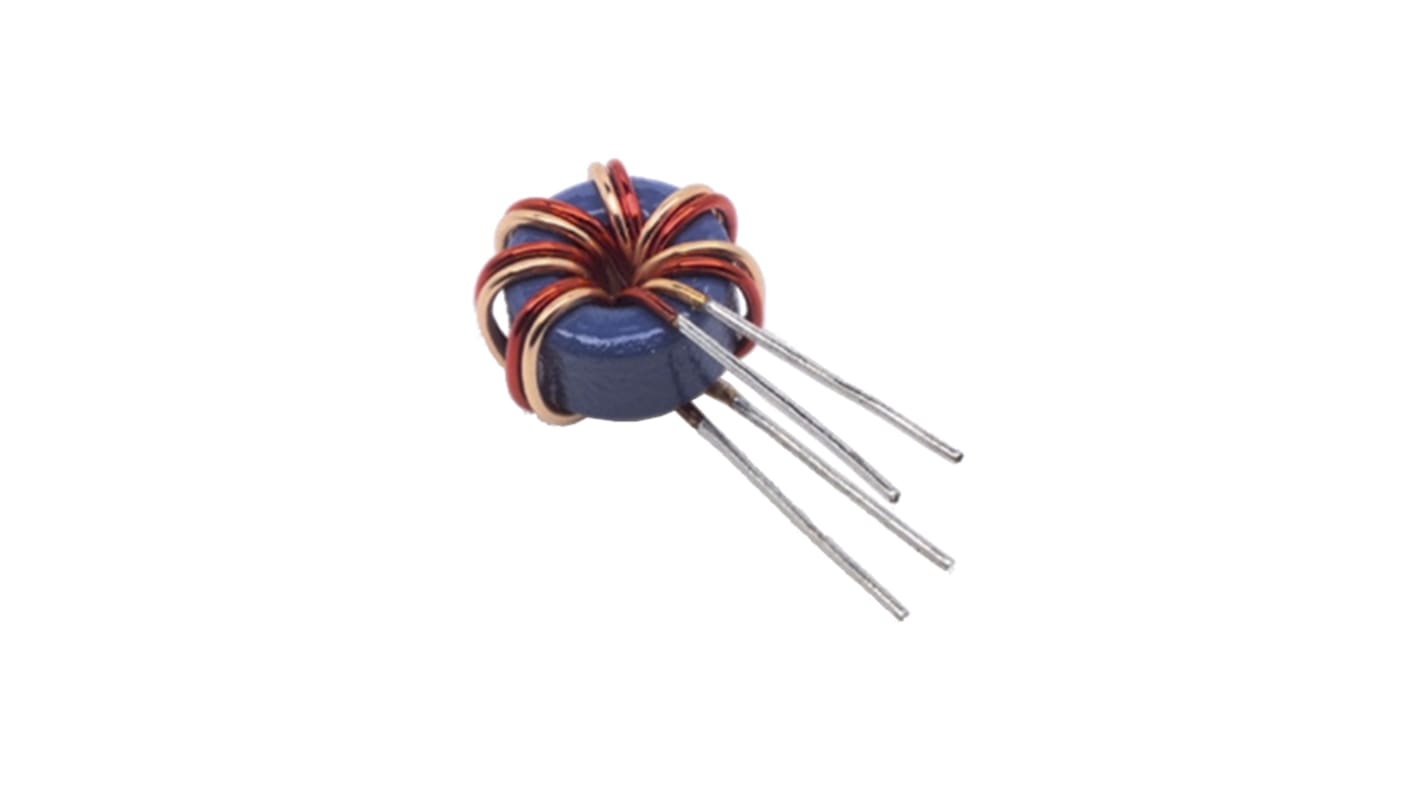

KEMET 12 μH 4.0 A Common Mode Choke 15.5mΩ 50V

View all Common Mode Chokes
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
186-0644
Mfr. Part No.:
SHO-301
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Inductance

12 μH

Series

SHO

Test Frequency

100 kHz

DC Resistance

15.5mΩ

Maximum Current

4.0 A

Dimensions

7.5 x 11 x 11mm

Operating Temperature Range

-25°C → + 70°C

Mounting Type

Through Hole

Voltage Rating

50V

Termination Style

PCB Pin

Height

11mm

Length

11mm

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-25°C

Depth

7.5mm

COO (Country of Origin):
VN
The KEMET SHO coils are common mode chokes with a wide variety of characteristics. These through-hole toroidal coils are suitable for noise countermeasure in DC power line circuits.

Nickel-Zinc (Ni-Zn) ferrite core
Operating temperature range from -25°C to +70°C (except SHO-303: -25°C to +75°C and SHO-402 and SHO-501: -25°C to +80°C)
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Home appliances
Power supplies
