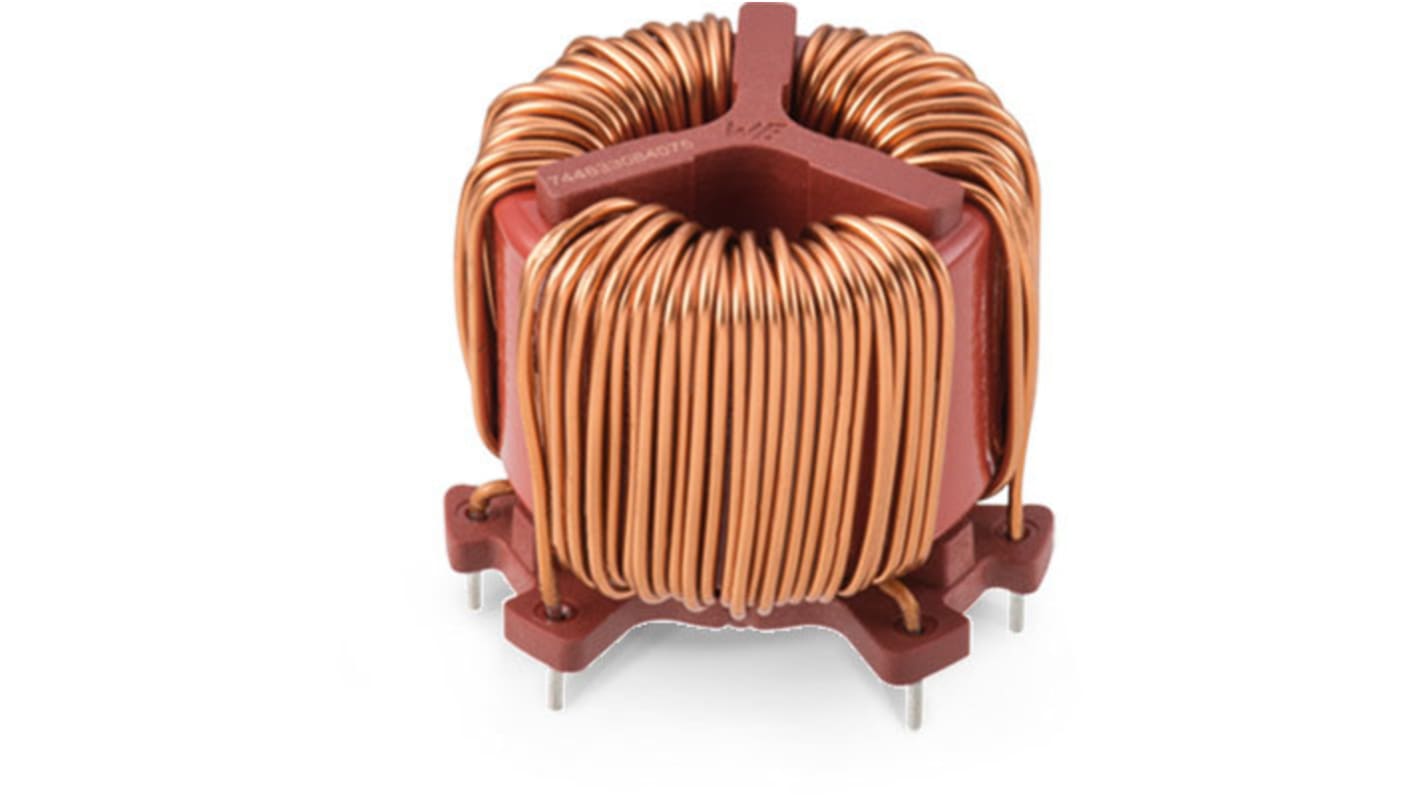

Wurth Elektronik 5.2 mH 10 A Common Mode Choke 27mΩ
- RS Stock No.:
- 185-7465
- Distrelec Article No.:
- 301-35-805
- Mfr. Part No.:
- 744833052100
- Brand:
- Wurth Elektronik
Subtotal (1 unit)*
£15.19
(exc. VAT)
£18.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.19 |
*price indicative
- RS Stock No.:
- 185-7465
- Distrelec Article No.:
- 301-35-805
- Mfr. Part No.:
- 744833052100
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 5.2 mH | |
| Series | WE-TPB | |
| Test Frequency | 10 kHz | |
| DC Resistance | 27mΩ | |
| Maximum Current | 10 A | |
| Dimensions | 47 (Dia.) x 39mm | |
| Operating Temperature Range | -40°C → +125°C | |
| Mounting Type | Through Hole | |
| Termination Style | Solder Pad | |
| Height | 39mm | |
| Depth | 47mm | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 5.2 mH | ||
Series WE-TPB | ||
Test Frequency 10 kHz | ||
DC Resistance 27mΩ | ||
Maximum Current 10 A | ||
Dimensions 47 (Dia.) x 39mm | ||
Operating Temperature Range -40°C → +125°C | ||
Mounting Type Through Hole | ||
Termination Style Solder Pad | ||
Height 39mm | ||
Depth 47mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Application up to 500 VAC
High permeability MnZn Ferrite core material
Insulation through winding spacer
Air and creepage distances ≥ 5 mm
Up to 24 A rated current
Suppression frequency range: 1 kHz to 1 MHz
Operating temperature: -40 °C to +125 °C
Applications
Power electronics
Power line input filter
Radio interference suppression in motors
Suppression for common mode noise
Frequency converter
Power supplies
Charging stations
High permeability MnZn Ferrite core material
Insulation through winding spacer
Air and creepage distances ≥ 5 mm
Up to 24 A rated current
Suppression frequency range: 1 kHz to 1 MHz
Operating temperature: -40 °C to +125 °C
Applications
Power electronics
Power line input filter
Radio interference suppression in motors
Suppression for common mode noise
Frequency converter
Power supplies
Charging stations
