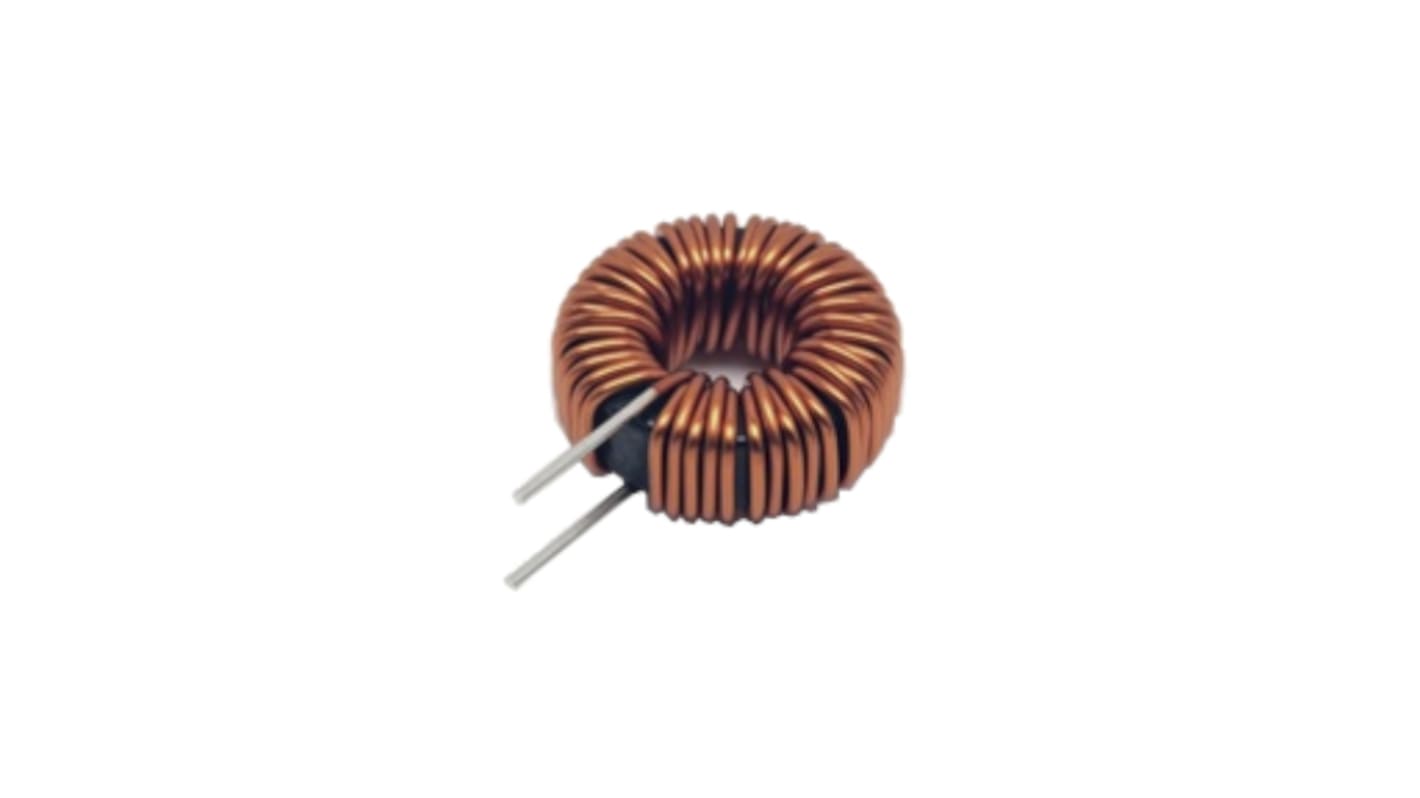

KEMET 67 μH 8 A Common Mode Choke 22.2 mΩ

View all Common Mode Chokes
Bulk discount available

Subtotal (1 unit)*

£4.54

(exc. VAT)

£5.45

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£4.54
5 - 9£4.23
10 - 24£3.95
25 - 49£3.77
50 +£3.36

*price indicative

RS Stock No.:
183-6940
Mfr. Part No.:
SHBC14-1R2A0067V
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Product Type

Common Mode Choke

Inductance

67μH

Maximum DC Current

8A

Series

SHBC

Core Material

Fe-Si-Al Dust

Test Frequency

100kHz

Packaging

Tray

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Number of Lines

2

Automotive Standard

No

Mount Type

Through Hole

Inductance Tolerance

±20 %

Depth

17.1mm

Standards/Approvals

RoHS

Termination Style

Solder Pad

Maximum DC Resistance

22.2mΩ

Height

33.5mm

COO (Country of Origin):
VN
The KEMET SHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si-Al dust cores and are useful in various fields such as DC/DC converters as well as normal noise countermeasures.

Fe-Si-Al dust core material

Available for smoothing and converting

Low core loss

High frequency drive

Wide variety of sizes and specifications

Operating temperature range from −40°C to +125°C

Applications

Switching power supply outlet

DC-DC converter

Phase compensation

Boost converter
