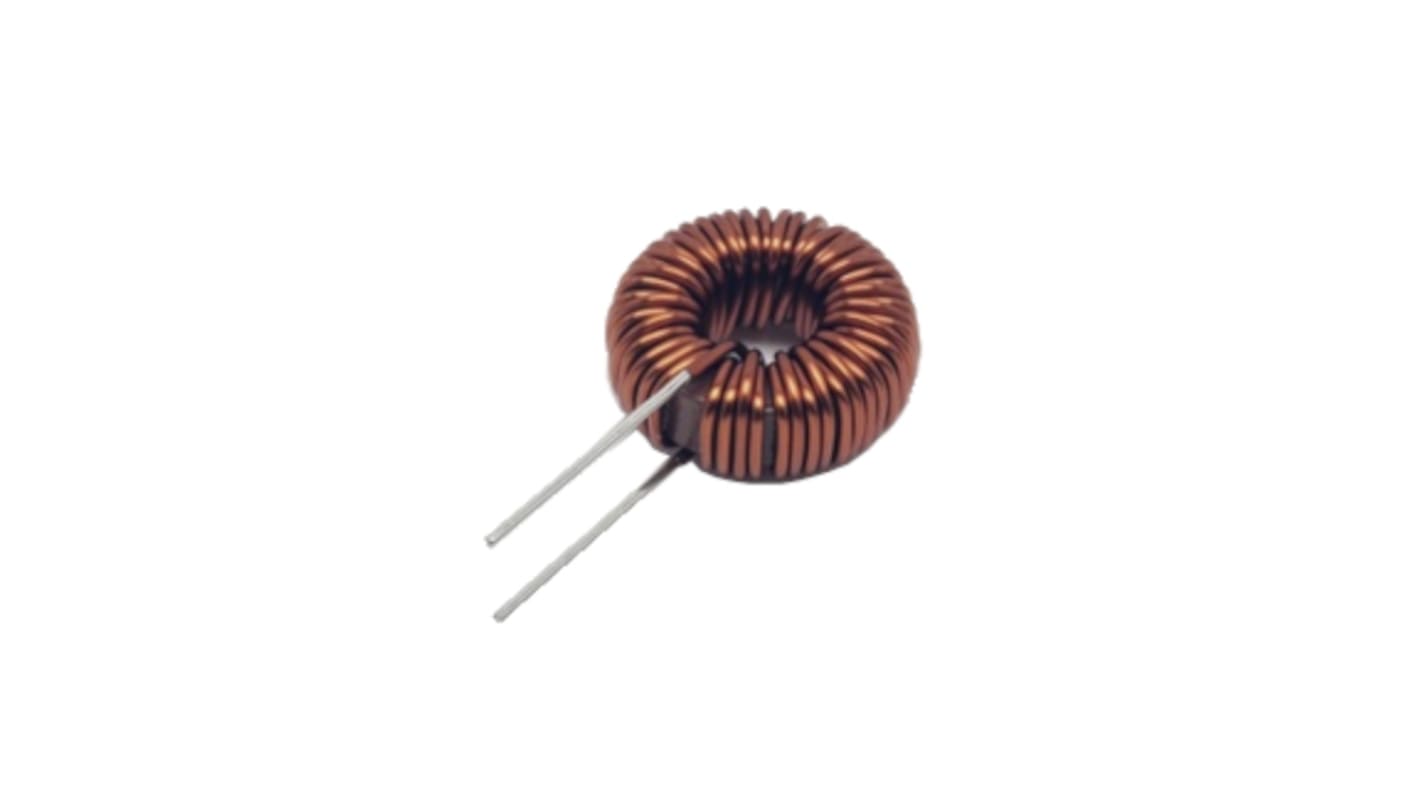

KEMET 38 μH 3 A Common Mode Choke 31.2 mΩ
- RS Stock No.:
- 183-6691
- Mfr. Part No.:
- HHBC10-0R8A0038V
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£3.33
(exc. VAT)
£4.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 109 unit(s) shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £3.33 |
| 25 - 49 | £3.11 |
| 50 - 99 | £2.89 |
| 100 - 249 | £2.71 |
| 250 + | £2.46 |
*price indicative
- RS Stock No.:
- 183-6691
- Mfr. Part No.:
- HHBC10-0R8A0038V
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 38μH | |
| Product Type | Common Mode Choke | |
| Maximum DC Current | 3A | |
| Series | HHBC | |
| Test Frequency | 100kHz | |
| Packaging | Tray | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Number of Lines | 2 | |
| Automotive Standard | No | |
| Mount Type | Through Hole | |
| Inductance Tolerance | 20 % | |
| Height | 11.7mm | |
| Length | 9mm | |
| Termination Style | Solder Pad | |
| Maximum DC Resistance | 31.2mΩ | |
| Depth | 21.5mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 38μH | ||
Product Type Common Mode Choke | ||
Maximum DC Current 3A | ||
Series HHBC | ||
Test Frequency 100kHz | ||
Packaging Tray | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Number of Lines 2 | ||
Automotive Standard No | ||
Mount Type Through Hole | ||
Inductance Tolerance 20 % | ||
Height 11.7mm | ||
Length 9mm | ||
Termination Style Solder Pad | ||
Maximum DC Resistance 31.2mΩ | ||
Depth 21.5mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- VN
The KEMET HHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si dust cores and are useful in various fields, such as DC/DC converters as well as normal noise countermeasures.
Fe-Si dust core material
Available for noise countermeasure as well as general use
Good balance of core loss and DC superposition characteristics
Wide variety of sizes and specifications
Operating temperature range from −40°C to +125°C
Applications
Switching power supply outlet
DC-DC converter
Phase compensation
Boost converter
Normal mode noise countermeasure
