KEMET 10 μH 4 A Common Mode Choke 40 mΩ 250V
- RS Stock No.:
- 169-6900
- Mfr. Part No.:
- SU16VD-40010
- Brand:
- KEMET
Subtotal (1 box of 600 units)*
£634.20
(exc. VAT)
£760.80
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 600 + | £1.057 | £634.20 |
*price indicative
- RS Stock No.:
- 169-6900
- Mfr. Part No.:
- SU16VD-40010
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Common Mode Choke | |
| Inductance | 10μH | |
| Series | SU-16VD | |
| Maximum DC Current | 4A | |
| Core Material | Ferrite | |
| Test Frequency | 1kHz | |
| Packaging | Tray | |
| Maximum Operating Temperature | 75°C | |
| Minimum Operating Temperature | -25°C | |
| Automotive Standard | No | |
| Choke Voltage | 250V | |
| Mount Type | Through Hole | |
| Depth | 19mm | |
| Height | 27.5mm | |
| Maximum DC Resistance | 40mΩ | |
| Termination Style | Solder Pad | |
| Length | 23mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Common Mode Choke | ||
Inductance 10μH | ||
Series SU-16VD | ||
Maximum DC Current 4A | ||
Core Material Ferrite | ||
Test Frequency 1kHz | ||
Packaging Tray | ||
Maximum Operating Temperature 75°C | ||
Minimum Operating Temperature -25°C | ||
Automotive Standard No | ||
Choke Voltage 250V | ||
Mount Type Through Hole | ||
Depth 19mm | ||
Height 27.5mm | ||
Maximum DC Resistance 40mΩ | ||
Termination Style Solder Pad | ||
Length 23mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- VN

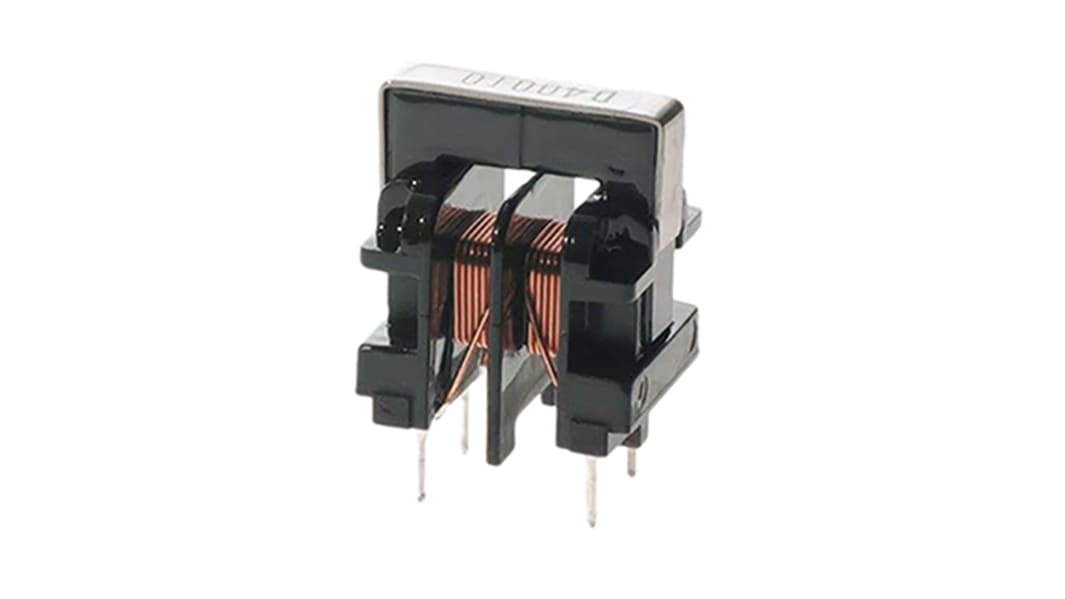

Kemet SU16VD Series Common Mode Chokes
Kemet SU Coils, SU16VD high frequency AC line filters, are suitable for use as common mode chokes and in consumer electronics.
High frequency type
Rated currents up to 4 A
DC resistances as low as 0.04 Ω
Inductances up to 50 μH
