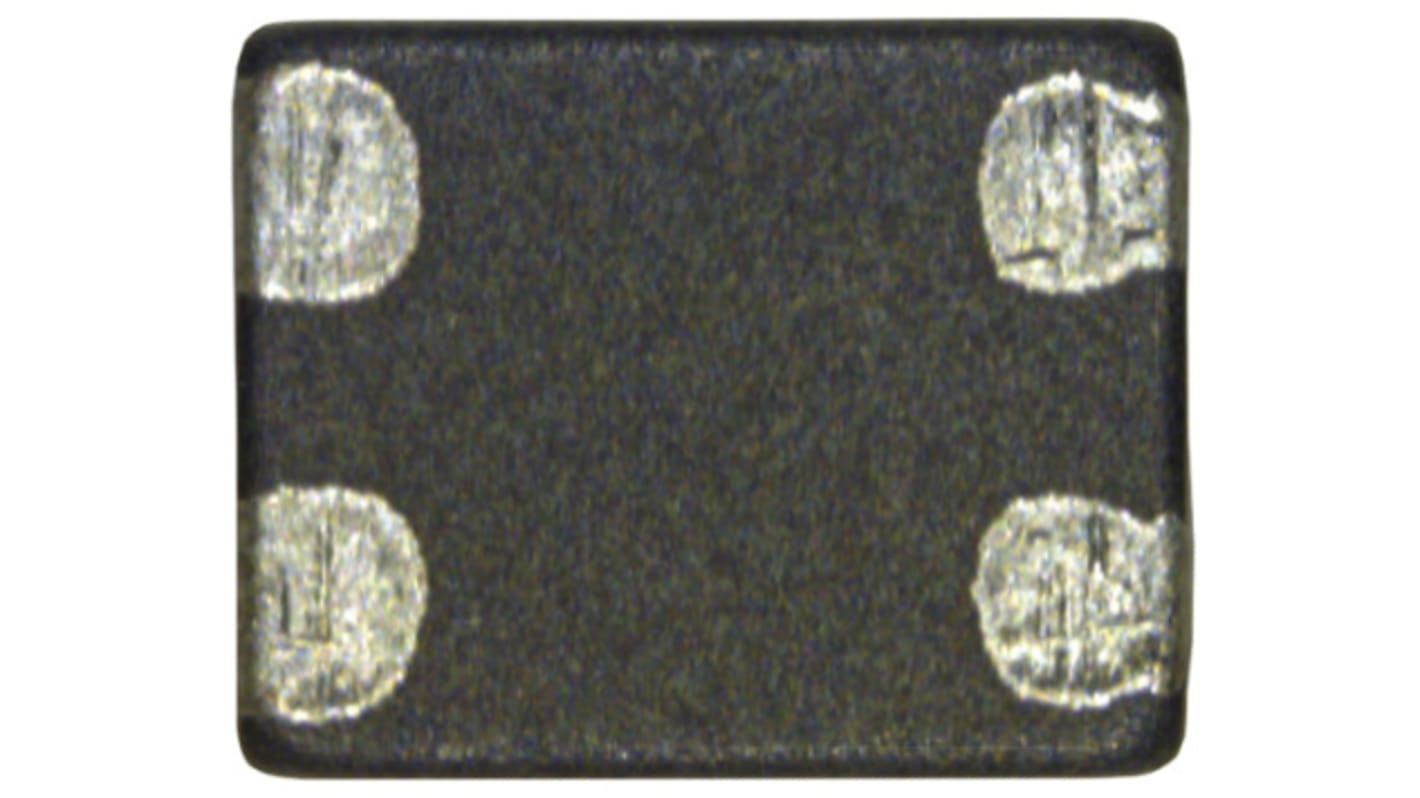

Murata 100 mA Common Mode Choke 1.5Ω
- RS Stock No.:
- 125-3211
- Mfr. Part No.:
- DLP11TB800UL2L
- Brand:
- Murata
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 125-3211
- Mfr. Part No.:
- DLP11TB800UL2L
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Series | DLP | |
| Impedance | 80 Ω | |
| Test Frequency | 100 MHz | |
| DC Resistance | 1.5Ω | |
| Maximum Current | 100 mA | |
| Dimensions | 1.25 x 1 x 0.3mm | |
| Operating Temperature Range | -40°C → +85°C | |
| Number of Lines | 2 | |
| Mounting Type | Surface Mount | |
| Termination Style | Solder Pad | |
| Package/Case | 0504 | |
| Depth | 1mm | |
| Maximum Operating Temperature | +85°C | |
| Height | 0.3mm | |
| Length | 1.25mm | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Murata | ||
Series DLP | ||
Impedance 80 Ω | ||
Test Frequency 100 MHz | ||
DC Resistance 1.5Ω | ||
Maximum Current 100 mA | ||
Dimensions 1.25 x 1 x 0.3mm | ||
Operating Temperature Range -40°C → +85°C | ||
Number of Lines 2 | ||
Mounting Type Surface Mount | ||
Termination Style Solder Pad | ||
Package/Case 0504 | ||
Depth 1mm | ||
Maximum Operating Temperature +85°C | ||
Height 0.3mm | ||
Length 1.25mm | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- JP
Murata 0504 DLP11TB Series SMD Common Mode Chokes
Compact and low profile form (1.25 x 1.0mm x 0.3mm)
Suitable for high density mounting
High magnetic coupling factor (k>=0.98) enables effective noise suppression without damaging to high speed differential signal waveform
Designed to match line impedance
Improved differential mode cut-off frequency to meet higher speed differential signal lines e.g. USB3.0 Super Speed
Suitable for high density mounting
High magnetic coupling factor (k>=0.98) enables effective noise suppression without damaging to high speed differential signal waveform
Designed to match line impedance
Improved differential mode cut-off frequency to meet higher speed differential signal lines e.g. USB3.0 Super Speed
Applications
Common mode noise suppression for high speed differential signal lines in compact mobile equipment such as digital cameras, notebook pc’s and mobile phones
Murata SMD Common Mode Chokes
