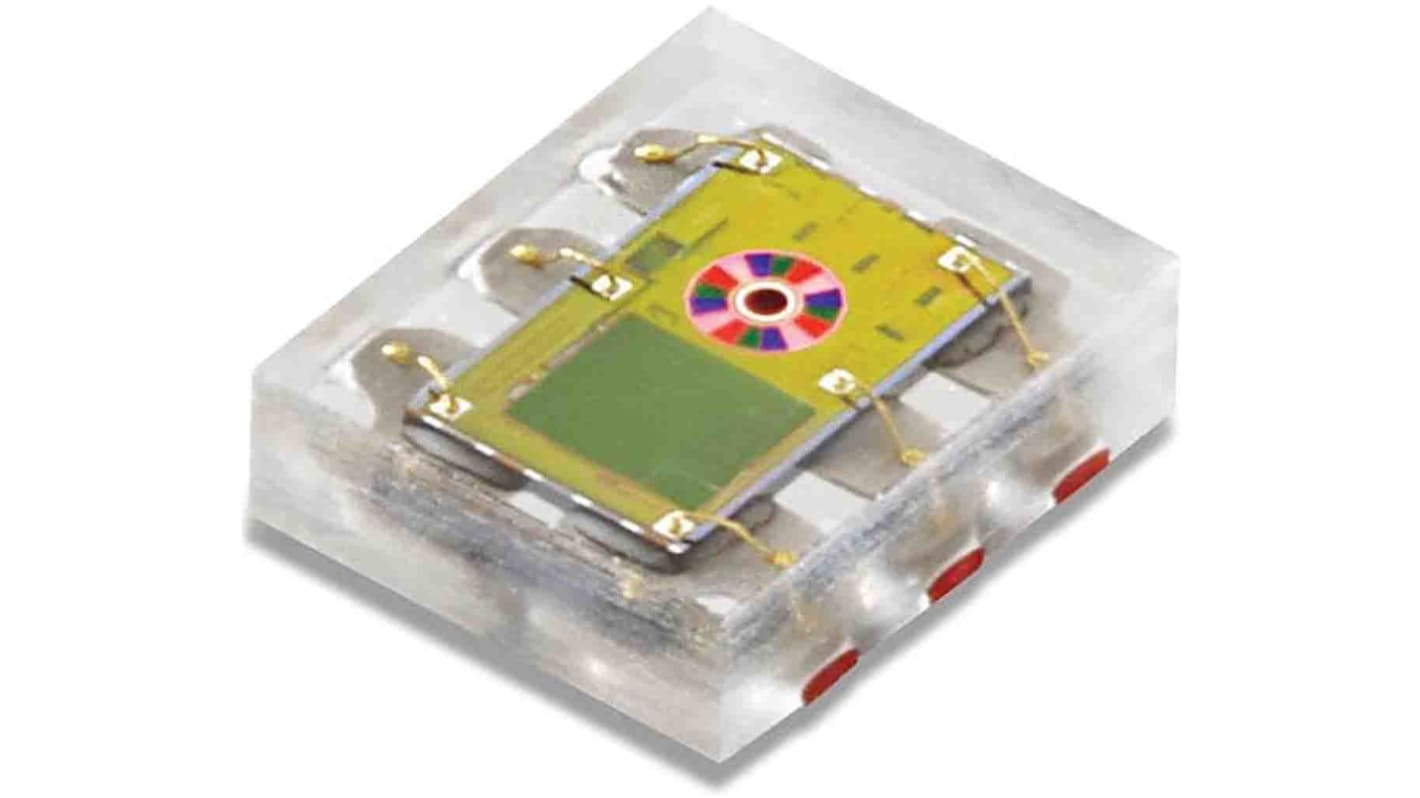

ams OSRAM Colour Sensor Colour Light 850 nm 6-Pin FN
- RS Stock No.:
- 201-8355
- Mfr. Part No.:
- TCS34007FNM
- Brand:
- ams OSRAM
Subtotal (1 pack of 2 units)*
£5.62
(exc. VAT)
£6.74
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 2 + | £2.81 | £5.62 |
*price indicative
- RS Stock No.:
- 201-8355
- Mfr. Part No.:
- TCS34007FNM
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | Colour Sensor | |
| Sub Type | Colour Light | |
| Peak Wavelength | 850nm | |
| Mount Type | Surface | |
| Maximum Frequency | 400kHz | |
| Package Type | FN | |
| Pin Count | 6 | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Length | 2400μm | |
| Standards/Approvals | No | |
| Height | 650μm | |
| Series | TCS3400 | |
| Maximum Operating Temperature | 70°C | |
| Technology | Digital | |
| Supply Current | 330μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type Colour Sensor | ||
Sub Type Colour Light | ||
Peak Wavelength 850nm | ||
Mount Type Surface | ||
Maximum Frequency 400kHz | ||
Package Type FN | ||
Pin Count 6 | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Length 2400μm | ||
Standards/Approvals No | ||
Height 650μm | ||
Series TCS3400 | ||
Maximum Operating Temperature 70°C | ||
Technology Digital | ||
Supply Current 330μA | ||
Automotive Standard No | ||
The ams AG 6 pin of colour and IR light sensor which provide improve accuracy of lux and colour temperature measurement. It is typically used for adjust the backlight intensity and correct the display colour gamut and it can be also used for light source type detection. It gives equal response to 360 degree incident light.
RGBC and ALS support
Circular segmented RGBC photodiode
Very high sensitivity
