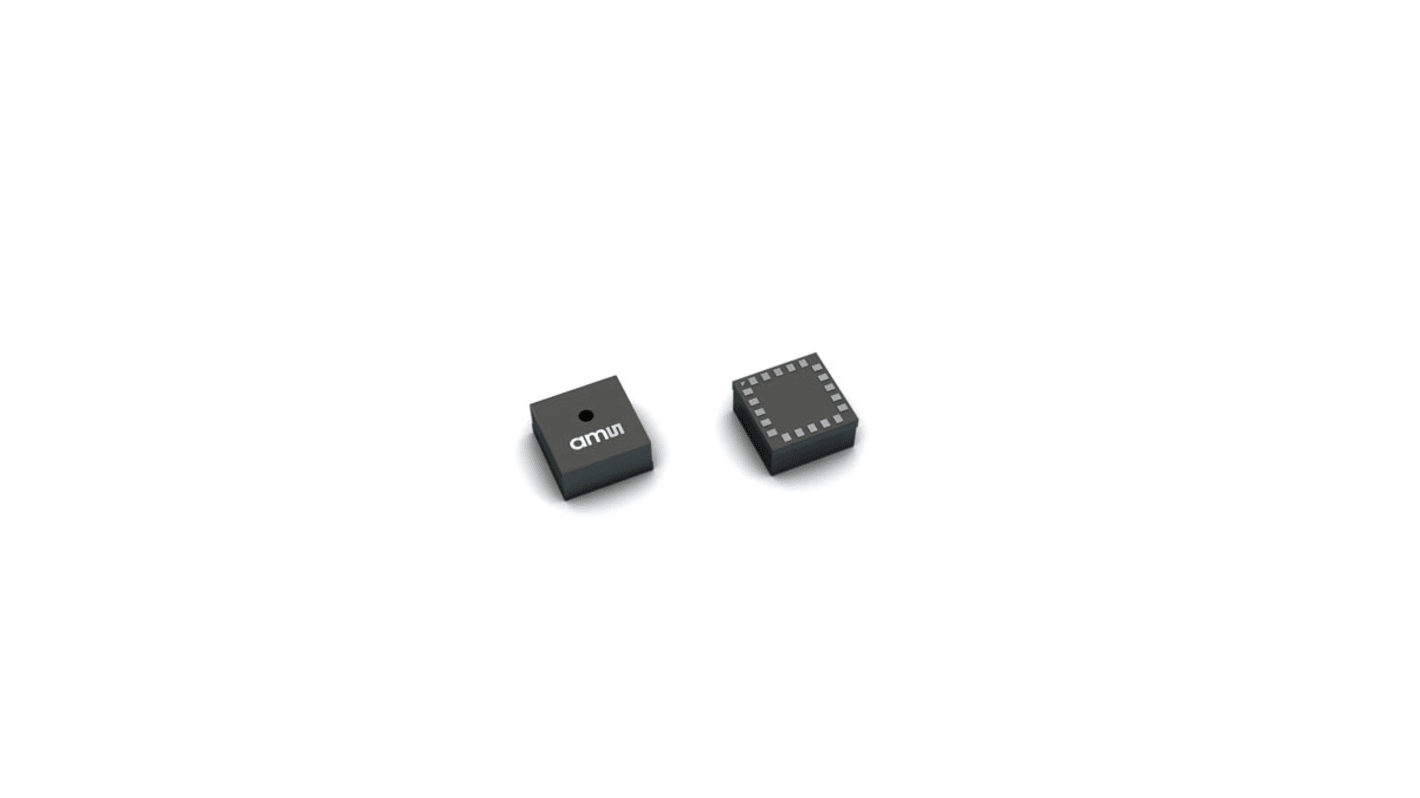

AS72653-BLGT ams OSRAM Colour Sensor Colour Light 535 nm 20-Pin LGA
- RS Stock No.:
- 201-8348
- Mfr. Part No.:
- AS72653-BLGT
- Brand:
- ams OSRAM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 201-8348
- Mfr. Part No.:
- AS72653-BLGT
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | Colour Sensor | |
| Sub Type | Colour Light | |
| Peak Wavelength | 535nm | |
| Mount Type | Surface | |
| Package Type | LGA | |
| Maximum Frequency | 16MHz | |
| Pin Count | 20 | |
| Minimum Supply Voltage | 2.97V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Length | 4.7mm | |
| Height | 2.5mm | |
| Standards/Approvals | No | |
| Series | AS7265x | |
| Width | 4.5 mm | |
| Maximum Operating Temperature | 85°C | |
| Technology | Digital | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type Colour Sensor | ||
Sub Type Colour Light | ||
Peak Wavelength 535nm | ||
Mount Type Surface | ||
Package Type LGA | ||
Maximum Frequency 16MHz | ||
Pin Count 20 | ||
Minimum Supply Voltage 2.97V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Length 4.7mm | ||
Height 2.5mm | ||
Standards/Approvals No | ||
Series AS7265x | ||
Width 4.5 mm | ||
Maximum Operating Temperature 85°C | ||
Technology Digital | ||
Automotive Standard No | ||
- COO (Country of Origin):
- AT
The ams AG 20 pin colour and light sensor has smart 18 channel which provide spectral identification in a range from visible to NIR. It spectral response is defined in a range from 410nm to 940nm with FWHM of 20nm. The device has two integrated LED driver with programmable current and can be timed for electronic shutter applications.
UART or I²C slave digital Interface
16-bit ADC with digital access
Programmable LED drivers
