Kingbright Ambient Light Sensor Unit 700 nm LFCSP 4
- RS Stock No.:
- 165-4325
- Mfr. Part No.:
- KPS-3227SP1C
- Brand:
- Kingbright
Subtotal (1 reel of 2000 units)*
£716.00
(exc. VAT)
£860.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.358 | £716.00 |
*price indicative
- RS Stock No.:
- 165-4325
- Mfr. Part No.:
- KPS-3227SP1C
- Brand:
- Kingbright
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| Product Type | Ambient Light Sensor Unit | |
| Mount Type | Surface | |
| Package Type | LFCSP | |
| Minimum Wavelength Detected | 390nm | |
| Maximum Wavelength Detected | 700nm | |
| Maximum Supply Voltage | 60V | |
| Application | PDA, Mobile Phone, Notebook, Video Camera | |
| Minimum Operating Temperature | -40°C | |
| Output Signal Type | Voltage | |
| Number of Pins | 4 | |
| Height | 1.1mm | |
| Series | KPS | |
| Width | 2.7mm | |
| Length | 3.2mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 85°C | |
| Spectral Range of Sensitivity | 390 to 700 nm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Kingbright | ||
Product Type Ambient Light Sensor Unit | ||
Mount Type Surface | ||
Package Type LFCSP | ||
Minimum Wavelength Detected 390nm | ||
Maximum Wavelength Detected 700nm | ||
Maximum Supply Voltage 60V | ||
Application PDA, Mobile Phone, Notebook, Video Camera | ||
Minimum Operating Temperature -40°C | ||
Output Signal Type Voltage | ||
Number of Pins 4 | ||
Height 1.1mm | ||
Series KPS | ||
Width 2.7mm | ||
Length 3.2mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 85°C | ||
Spectral Range of Sensitivity 390 to 700 nm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

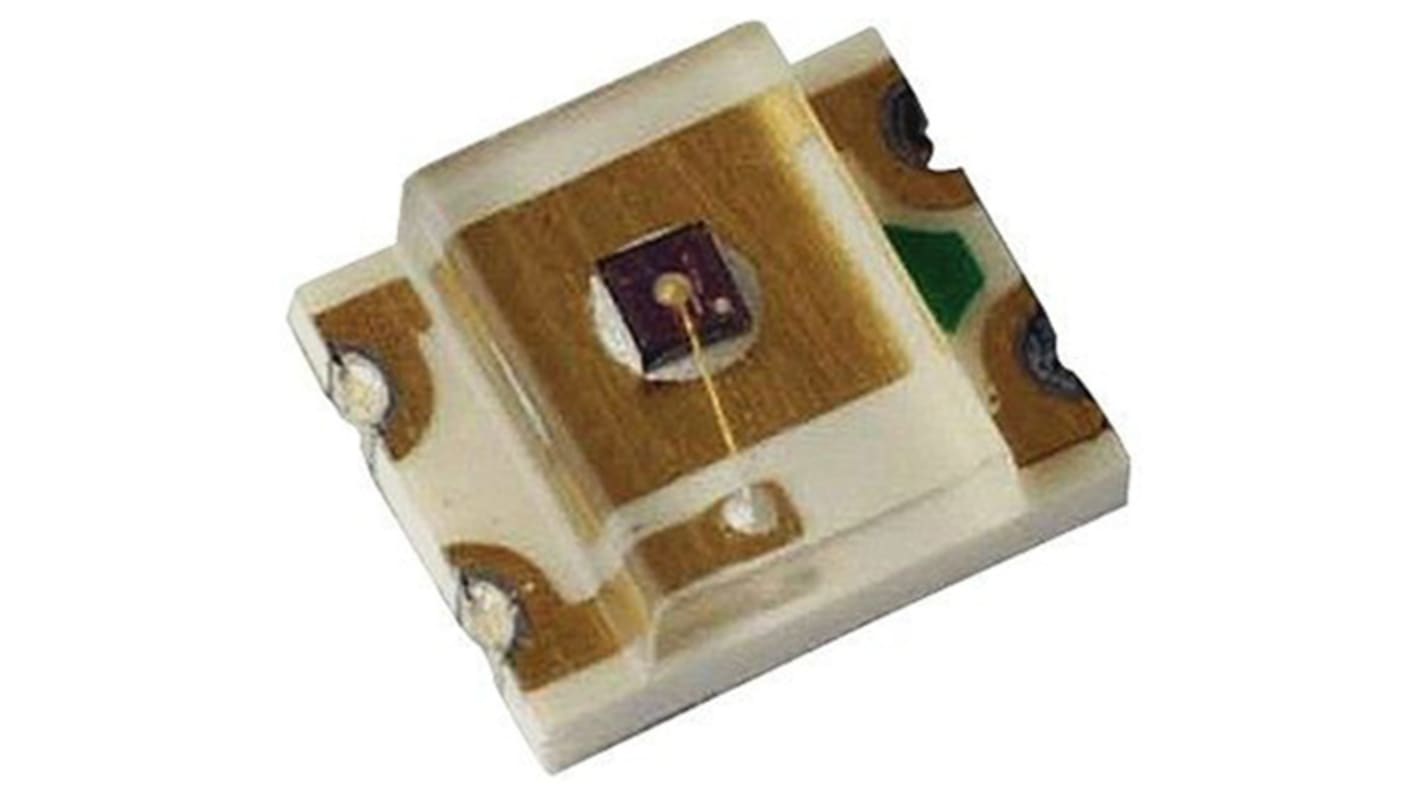

KPS-3227SP1C Ambient Light Sensor
The KPS-3227SP1C, from Kingbright, is an ambient light photo sensor. The KPS-3227SP1C has been designed to resemble the sensitivity of the human eye to visible light. It is sensitive to visible light and is therefore Ideal for controlling display backlighting in portable devices such as mobile phones and notebooks. This enables the user to create designs which offer a power saving function.
Features of the KPS-3227SP1C ambient light sensor:
Surface mounted (SMD)
NPN silicon phototransistor
Sensitive to visible spectrum
Wide angle of half intensity
