RS PRO, Jack Flange Mount SMA Connector, 50Ω, Solder Termination, Straight Body

Save 28% when you buy 100 units

Subtotal (1 unit)*

£16.35

(exc. VAT)

£19.62

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
1 - 9£16.35
10 - 24£15.87
25 - 49£14.48
50 - 99£13.50
100 +£11.70

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

RS Stock No.:
921-0219
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Gender

Female

Coaxial Connector Type

SMA Connector

Mounting Type

Flange Mount

Impedance

50Ω

Termination Method

Solder

Body Orientation

Straight

Cable Type

Coaxial

Size

Subminiature

Bulkhead

No

Operating Frequency

18GHz

Body Plating

Gold

Contact Material

Beryllium Copper

Contact Plating

Gold

Mating Type

Threaded

COO (Country of Origin):
TW

SMA Straight Jacks


From the trusted RS Pro brand, a series of 50 Ω straight SMA connectors. These SMA jacks have gold plated beryllium copper contacts and either gold plated brass, gold plated stainless steel or nickel plated brass bodies. A high-quality range of SMA connectors they are designed for use from DC to 18 GHz and would typically be used in WiFi antenna systems. The connectors come in various mounting and body styles.
Part number 921-0203 straight jack
Part number 921-0212 square flange jack
Part number 921-0215 bulkhead jack
Part number 921-0219 two hole panel jack

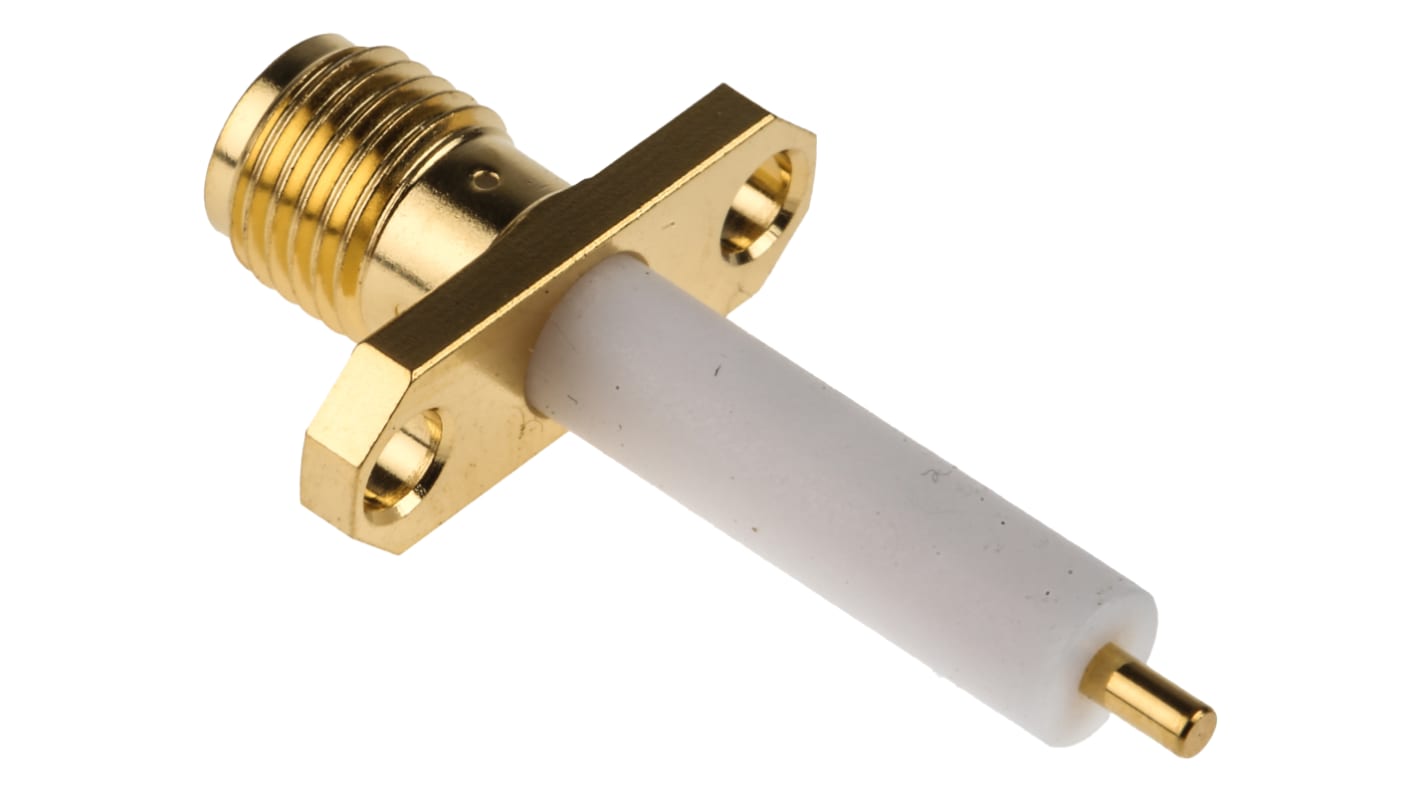

RS PRO Panel Mount SMA Jack


From the trusted RS Pro brand, this SMA connector is a robust and reliable solution to RF connection. With gold plated beryllium copper contacts a high-quality signal connection is assured, and a thick screw-in flange is incorporated for secure fixing to panels or equipment housing.

This flange mount SMA jack is front mounting, and incorporates a crimp for quick and efficient termination.

• Part number 921-0212 is an SMA square flange jack
• Part number 921-0219 is an SMA two-hole panel jack

Features and Benefits

• Panel Mounting SMA
• Subminiature RF Coaxial Socket
• Gold plated body and contact
• 50 Ohm Impedance

Applications

This SMA connector socket is designed for use from DC to 18 GHz, and is designed to connect to appropriate coaxial cable assemblies and SMA plugs with a secure screw-on action. This connector would typically be used in WiFi antenna systems.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Our range of connectors contains plugs, sockets and tool solutions to suit any installation.
