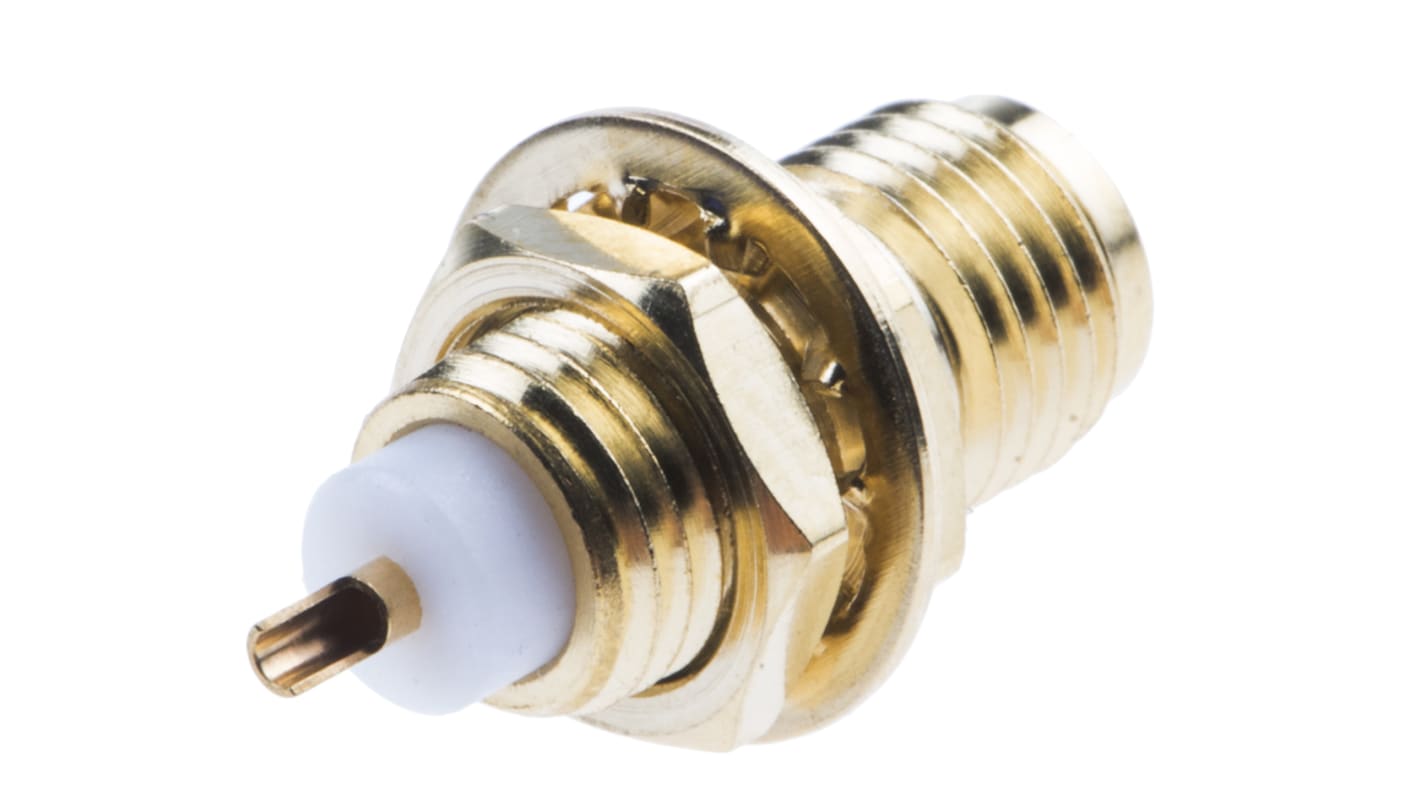

RS PRO, Jack Panel Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 921-0215
- Distrelec Article No.:
- 304-03-676
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£8.40
(exc. VAT)
£10.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 762 unit(s) shipping from 30 December 2025
- Plus 1,000 unit(s) shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £8.40 |
| 10 - 24 | £8.17 |
| 25 - 49 | £7.46 |
| 50 - 99 | £6.96 |
| 100 + | £6.00 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4.42
(exc. VAT)
£5.30
(inc. VAT)
- RS Stock No.:
- 921-0215
- Distrelec Article No.:
- 304-03-676
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coaxial Connector Type | SMA Connector | |
| Gender | Female | |
| Mounting Type | Panel Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Cable Type | Coaxial | |
| Size | Subminiature | |
| Bulkhead | Yes | |
| Operating Frequency | 18GHz | |
| Body Plating | Gold | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
| Mating Type | Threaded | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coaxial Connector Type SMA Connector | ||
Gender Female | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Size Subminiature | ||
Bulkhead Yes | ||
Operating Frequency 18GHz | ||
Body Plating Gold | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Mating Type Threaded | ||
- COO (Country of Origin):
- TW
SMA Straight Jacks
From the trusted RS Pro brand, a series of 50 Ω straight SMA connectors. These SMA jacks have gold plated beryllium copper contacts and either gold plated brass, gold plated stainless steel or nickel plated brass bodies. A high-quality range of SMA connectors they are designed for use from DC to 18 GHz and would typically be used in WiFi antenna systems. The connectors come in various mounting and body styles.
Part number 921-0203 straight jack
Part number 921-0212 square flange jack
Part number 921-0215 bulkhead jack
Part number 921-0219 two hole panel jack
Part number 921-0203 straight jack
Part number 921-0212 square flange jack
Part number 921-0215 bulkhead jack
Part number 921-0219 two hole panel jack
RS PRO 50 Ω Straight Panel Mount SMA Connector Bulkhead Fitting, Jack, Coaxial
Use this RS PRO SMA (SubMiniature version A) connector to link cables and keep them aligned for applications like group cable runs or internal wall work. You can mount it directly to your printed circuit board (PCB) for an efficient connection with minimal interruption to your signal.
This connector is durable and long-lasting thanks to the gold contact plating that provides resistance to rust and corrosion. The contacts themselves are made from beryllium copper, so the unit has high thermal and electrical conductivity. This keeps the current moving through the connector reliably, even after frequent, heavy use.
The connector’s 18 GHz operating frequency makes this product ideal for use with WiFi antennas. It also complies with the Restriction of Hazardous Substances (RoHS) standards, meaning it contains no more than trace amounts of any potentially harmful materials.
This connector is durable and long-lasting thanks to the gold contact plating that provides resistance to rust and corrosion. The contacts themselves are made from beryllium copper, so the unit has high thermal and electrical conductivity. This keeps the current moving through the connector reliably, even after frequent, heavy use.
The connector’s 18 GHz operating frequency makes this product ideal for use with WiFi antennas. It also complies with the Restriction of Hazardous Substances (RoHS) standards, meaning it contains no more than trace amounts of any potentially harmful materials.
Features and Benefits
- Straight body orientation
- Gold body plating
- Bulkhead
- Coaxial cable type
- SMA coaxial connector type
- Beryllium copper contact material
- Gold contact plating
- Female gender
- Impedance of 50 Ω
- Threaded mating type
- Panel mounting type
- Operating frequency of 18 GHz
- Subminiature size
- Solder termination method
- Voltage rating of 500 V
