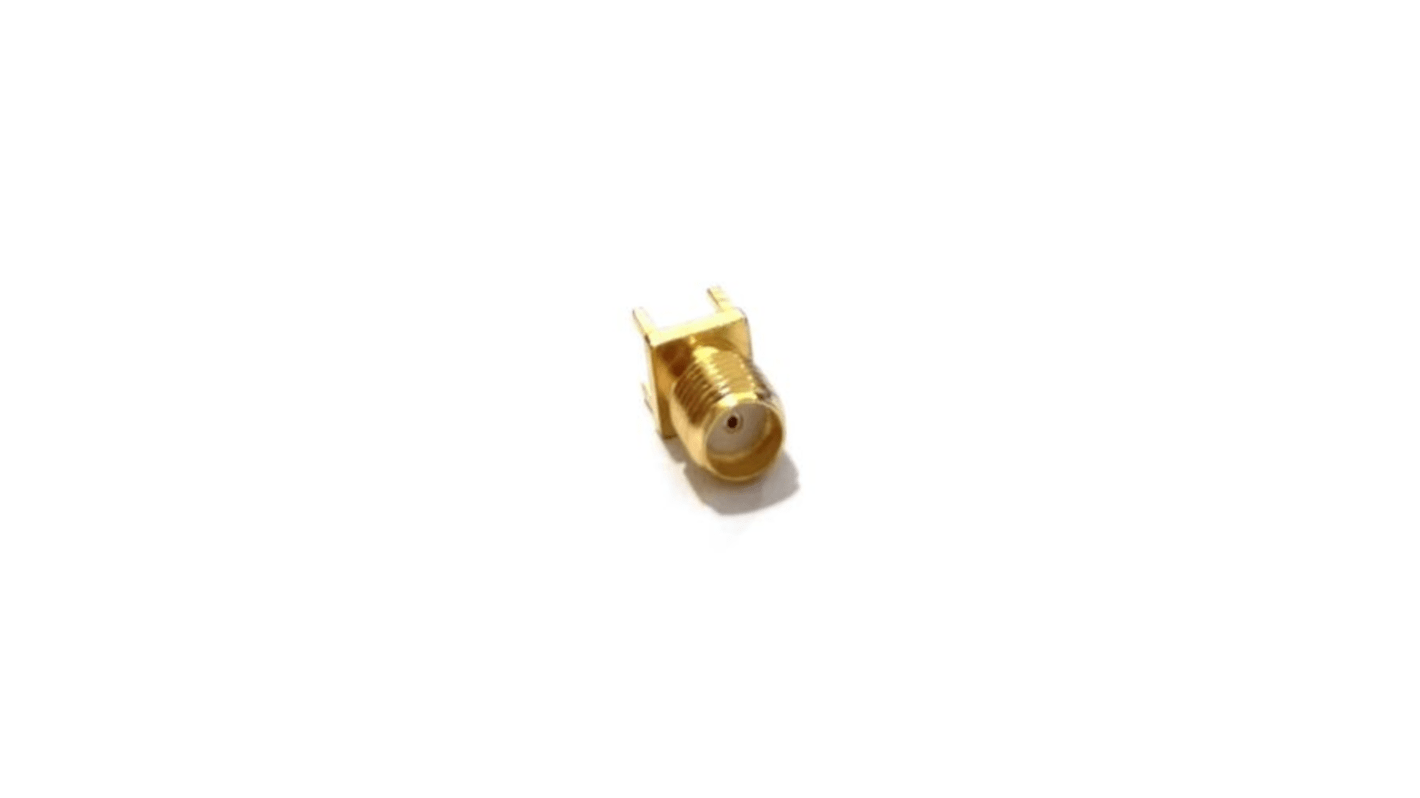

RS PRO, Jack Panel Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 246-9415
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£5.14
(exc. VAT)
£6.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 782 unit(s) ready to ship
- Plus 999,999,217 unit(s) shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.14 |
| 5 - 9 | £4.98 |
| 10 - 24 | £4.78 |
| 25 + | £4.54 |
*price indicative
- RS Stock No.:
- 246-9415
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Female | |
| Coaxial Connector Type | SMA Connector | |
| Mounting Type | Panel Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Cable Type | Coaxial | |
| Operating Frequency | 6GHz | |
| Body Plating | Gold | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | +125°C | |
| Contact Material | Phosphor Copper | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Female | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Operating Frequency 6GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature +125°C | ||
Contact Material Phosphor Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN
RS PRO Straight Angle Panel Mount SMA Connector Jack
A straight angle panel mount SMA (subminiature version A) connector designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF). This subminiature connector features a 6 GHz range and is ideal for use in WiFi equipment and systems and its compact straight design makes it easy to install.
The RS PRO SMA coaxial connector includes PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.
The RS PRO SMA coaxial connector includes PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.
Features and Benefits
- Sub-miniature size
- Panel Mount
- Crimp termination
- Working Voltage of 335V
- Insulation resistance of upto 1000MΩ
- Operating temperature range of -45°C to +125°C
Approvals and Standards: CE, ROHS
