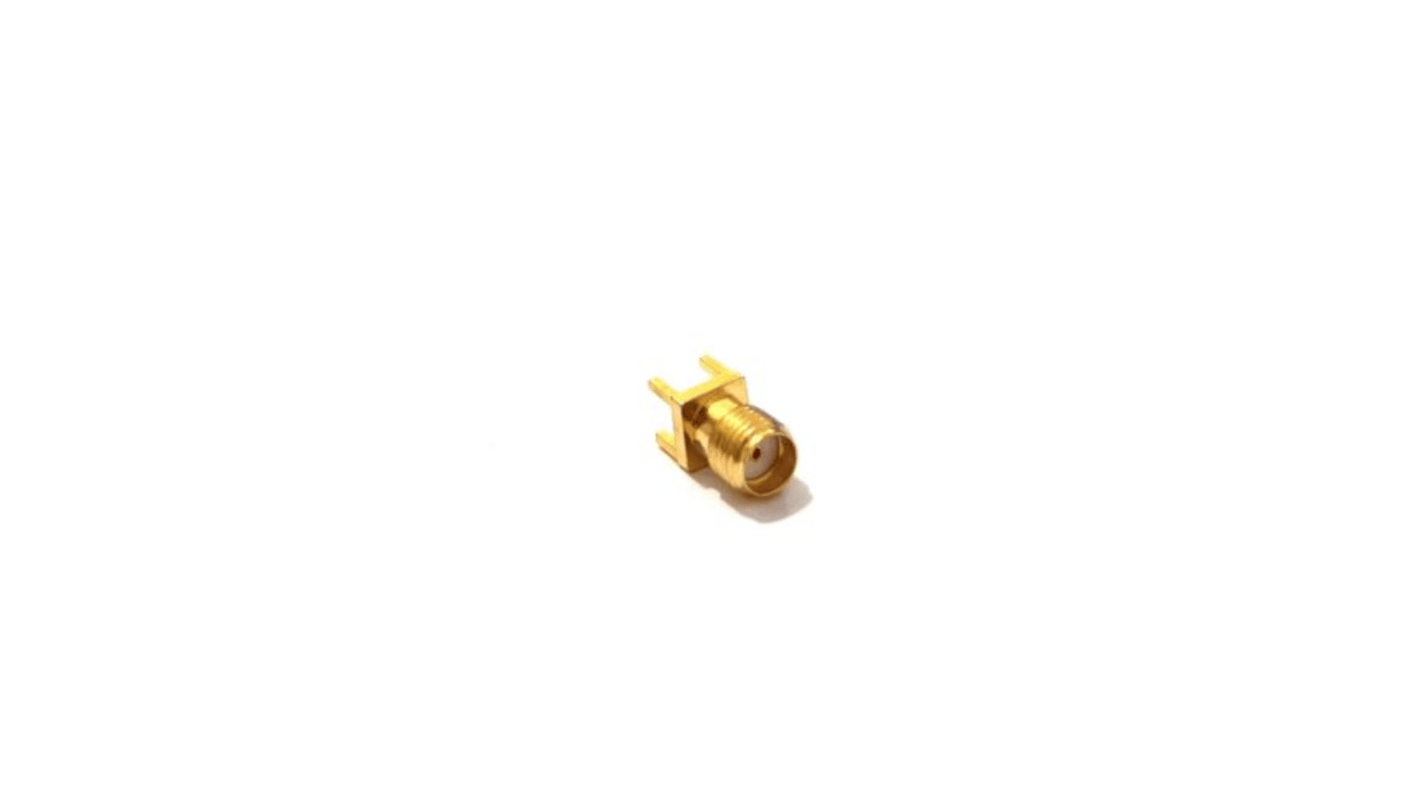

RS PRO, Jack Panel Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 246-9403
- Brand:
- RS PRO
Save 11% when you buy 25 units
Subtotal (1 unit)*
£5.04
(exc. VAT)
£6.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 736 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.04 |
| 5 - 9 | £4.88 |
| 10 - 24 | £4.69 |
| 25 + | £4.45 |
*price indicative
- RS Stock No.:
- 246-9403
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Female | |
| Coaxial Connector Type | SMA Connector | |
| Mounting Type | Panel Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Cable Type | Coaxial | |
| Operating Frequency | 6GHz | |
| Minimum Operating Temperature | -45°C | |
| Body Plating | Gold | |
| Maximum Operating Temperature | +125°C | |
| Series | SMA | |
| Contact Material | Phosphor Copper | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Female | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Operating Frequency 6GHz | ||
Minimum Operating Temperature -45°C | ||
Body Plating Gold | ||
Maximum Operating Temperature +125°C | ||
Series SMA | ||
Contact Material Phosphor Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN
RS PRO Straight Angle Panel Mount SMA Connector Jack
A straight panel mount SMA (subminiature version A) connector jack designed for use with semi-rigid and rigid coaxial cable to enable the smooth transmission of radio-frequency signals (RF).
The RS PRO PCB mount SMA connector features a 6 GHz frequency range and is intended for high performance at high power ratings in small diameters.
This subminiature coax connector jack also features PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.
The RS PRO PCB mount SMA connector features a 6 GHz frequency range and is intended for high performance at high power ratings in small diameters.
This subminiature coax connector jack also features PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.
Features and Benefits
- Sub-miniature size
- PCB mount
- Solder termination
- Working Voltage of 335V
- Insulation resistance of upto 1000MΩ
- Operating temperature range of -45°C to +125°C
Approvals and Standards: CE, ROHS
