COAX Connectors BNC Series Cable Male BNC, 75 Ω, Right Angle Body Crimp

View all Coaxial Connectors
Unavailable
RS will no longer stock this product.
Coaxial-Cable
Coaxial Cable
Don't forget your Coaxial Cable!
Shop Coaxial Cable now
RS Stock No.:
916-0612
Mfr. Part No.:
10-104-W66-FB
Brand:
COAX Connectors
Find similar products by selecting one or more attributes.
Select all

Brand

COAX Connectors

Product Type

Coaxial Connector

Coaxial Connector Type

BNC

Mount Type

Cable

Impedance

75Ω

Connector Gender

Male

Orientation

Right Angle

Cable Type

VK77, Percon VK6, Draka 0.8,3.7A,F, Conducfil 14472, Bryant BD SD05A, BELDEN 1505A

Size

Standard

Bulkhead

No

Operating Frequency

6GHz

Minimum Operating Temperature

-55°C

Body Plating

Gold

Maximum Operating Temperature

155°C

Polarity

Normal

Termination Type

Crimp

Series

BNC

Contact Gender

Male

Contact Material

Beryllium Copper Alloy

Standards/Approvals

No

Contact Plating

Gold

COO (Country of Origin):
TW

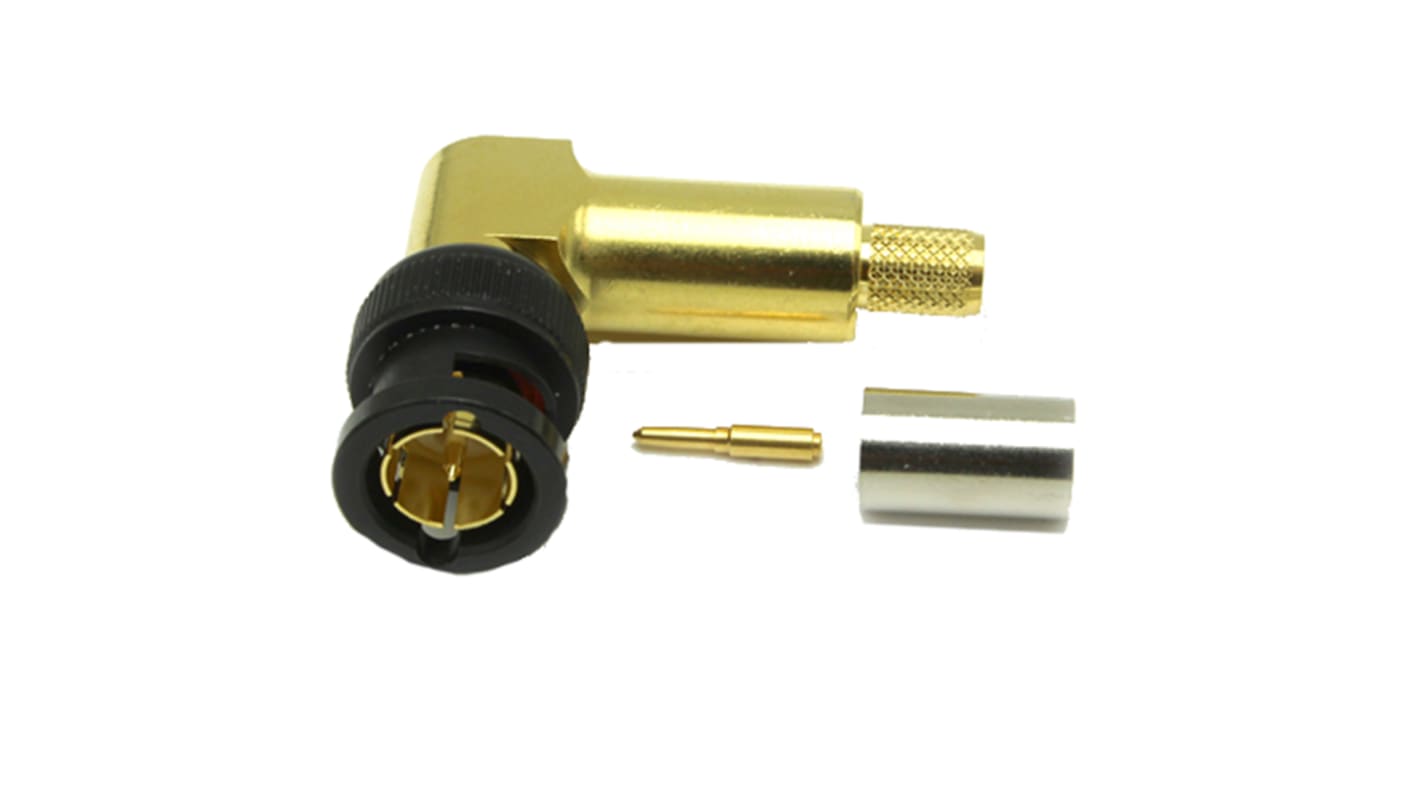

Korus Right Angled BNC Crimp Plugs


A series of 75 Ω high quality machined BNC crimp plugs from Coax Connectors. These right angled BNC connectors have gold plated brass centre contacts and a gold plated brass body. They are part of the Korus series of connectors offering stable low loss performance, making them ideal for the 4K / Ultra HD broadcast markets. These BNC connectors feature a simple bayonet coupling which only requires a quarter turn to connect and disconnect. The easy connection feature makes BNC one of the most popular types of connector used in the market today. Typical applications would include broadcast, telecom, instrumentation and security. These high definition connectors meet the following standards SMPTE 292M, 424M and ST208-1

Coax Connectors BNC Series
