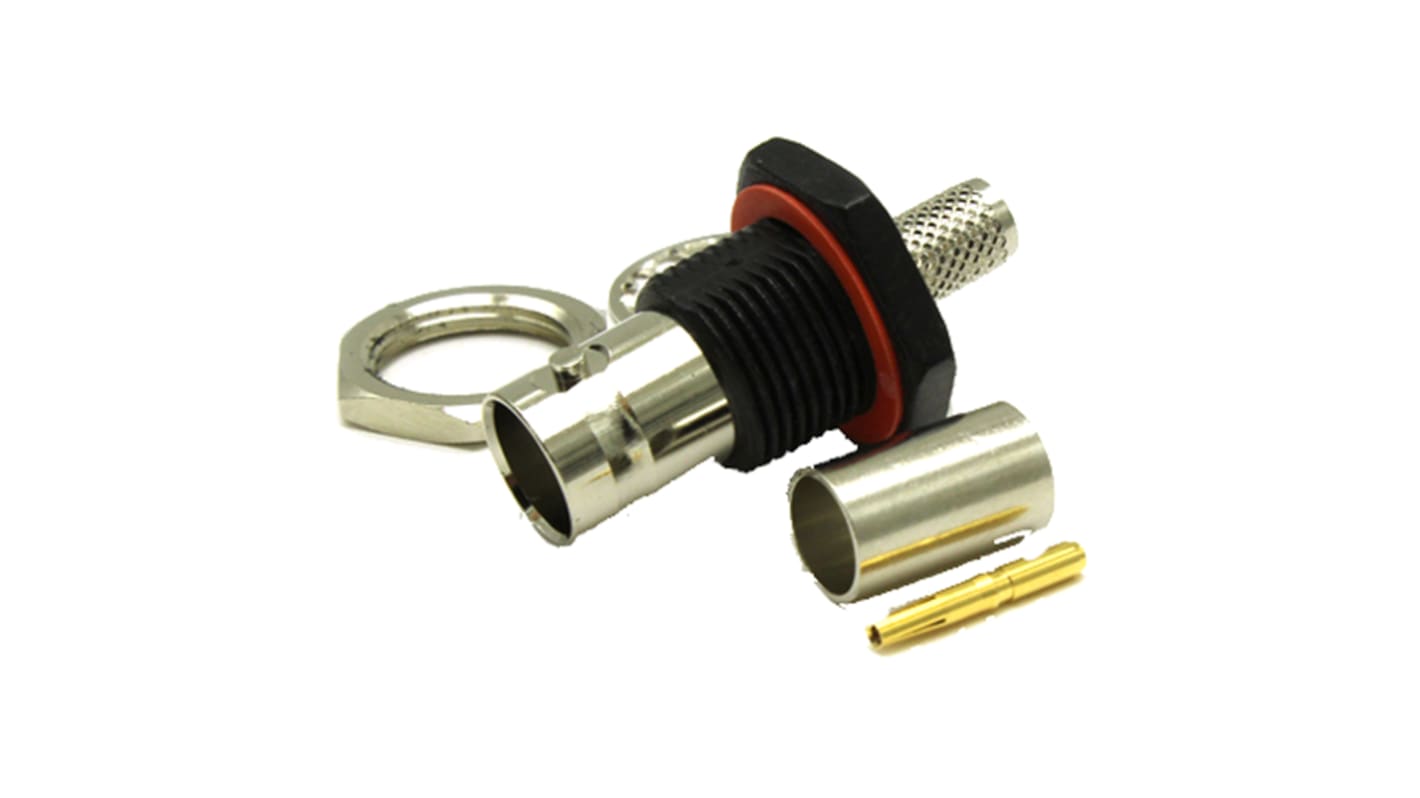

COAX Connectors BNC Series Panel Mount Female BNC, 75 Ω, Straight Body Crimp
- RS Stock No.:
- 916-0628
- Mfr. Part No.:
- 10-258-B36-FB
- Brand:
- COAX Connectors
Bulk discount available
Subtotal (1 unit)*
£5.29
(exc. VAT)
£6.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 42 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.29 |
| 5 - 9 | £4.97 |
| 10 - 24 | £4.75 |
| 25 - 49 | £4.54 |
| 50 + | £4.22 |
*price indicative
- RS Stock No.:
- 916-0628
- Mfr. Part No.:
- 10-258-B36-FB
- Brand:
- COAX Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | COAX Connectors | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | BNC | |
| Mount Type | Panel Mount | |
| Impedance | 75Ω | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Size | Standard | |
| Bulkhead | Yes | |
| Operating Frequency | 4.5 GHz | |
| Body Plating | Nickel | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 155°C | |
| Termination Type | Crimp | |
| Polarity | Normal | |
| Series | BNC | |
| Contact Gender | Female | |
| Contact Material | Phosphor Bronze | |
| Standards/Approvals | No | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand COAX Connectors | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type BNC | ||
Mount Type Panel Mount | ||
Impedance 75Ω | ||
Orientation Straight | ||
Connector Gender Female | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 4.5 GHz | ||
Body Plating Nickel | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 155°C | ||
Termination Type Crimp | ||
Polarity Normal | ||
Series BNC | ||
Contact Gender Female | ||
Contact Material Phosphor Bronze | ||
Standards/Approvals No | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- TW
Insulated BNC Bulkhead Jacks
A series of professional quality 75 Ω machined BNC connectors from Coax Connectors. These insulated bulkhead jacks all have gold plated phosphor bronze contacts and nickel plated brass bodies. The BNC connectors have a simple bayonet coupling requiring only a quarter turn to connect and disconnect. The simple method of connection makes them one of the most commonly used coaxial cable connectors. This range of connectors can operate up to 4.5 GHz and meet SMPTE 292M and 424M standards.
