Rosenberger QMA Series Coaxial Connector PCB Female QMA, 50 Ω, Right Angle Body Solder
- RS Stock No.:
- 819-4190
- Mfr. Part No.:
- 28K201-400N5
- Brand:
- Rosenberger
Subtotal (1 unit)*
£17.31
(exc. VAT)
£20.77
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 131 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.31 |
*price indicative
- RS Stock No.:
- 819-4190
- Mfr. Part No.:
- 28K201-400N5
- Brand:
- Rosenberger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rosenberger | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | QMA | |
| Mount Type | PCB | |
| Impedance | 50Ω | |
| Connector Gender | Female | |
| Orientation | Right Angle | |
| Cable Type | RG174A/U, RG188A/U, RG316/U | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 18GHz | |
| Minimum Operating Temperature | -40°C | |
| Body Plating | Gold | |
| Polarity | Normal | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Series | QMA | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Copper Zinc Alloy | |
| Contact Plating | White Bronze | |
| Select all | ||
|---|---|---|
Brand Rosenberger | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type QMA | ||
Mount Type PCB | ||
Impedance 50Ω | ||
Connector Gender Female | ||
Orientation Right Angle | ||
Cable Type RG174A/U, RG188A/U, RG316/U | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 18GHz | ||
Minimum Operating Temperature -40°C | ||
Body Plating Gold | ||
Polarity Normal | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Series QMA | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Copper Zinc Alloy | ||
Contact Plating White Bronze | ||
- COO (Country of Origin):
- HU

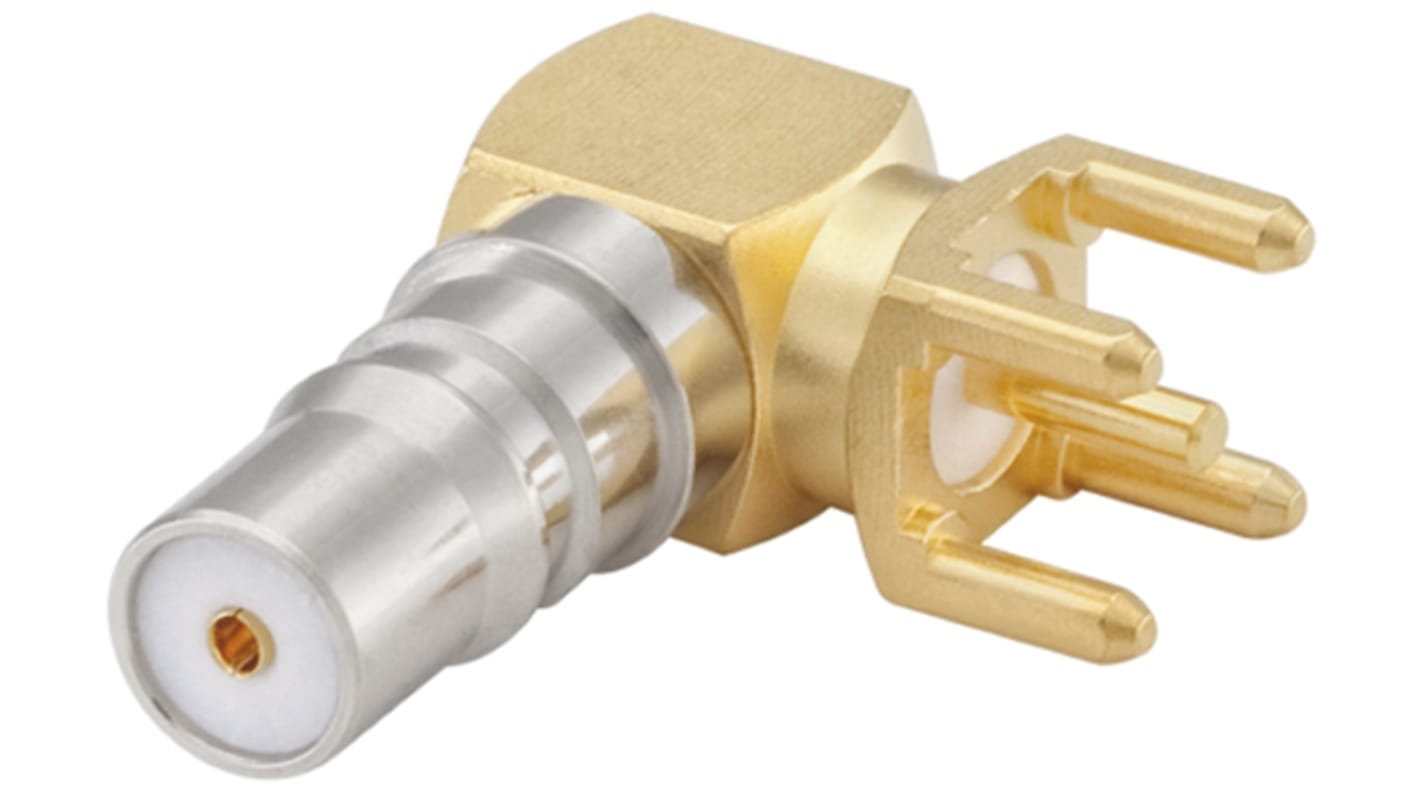

Rosenberger QMA RF Coaxial Jack PCB Mount Connectors
50 OHM QMA PCB mount RF coaxial right angle jack connector with a gold plated brass body.
Rosenberger QMA RF Coaxial Connectors
