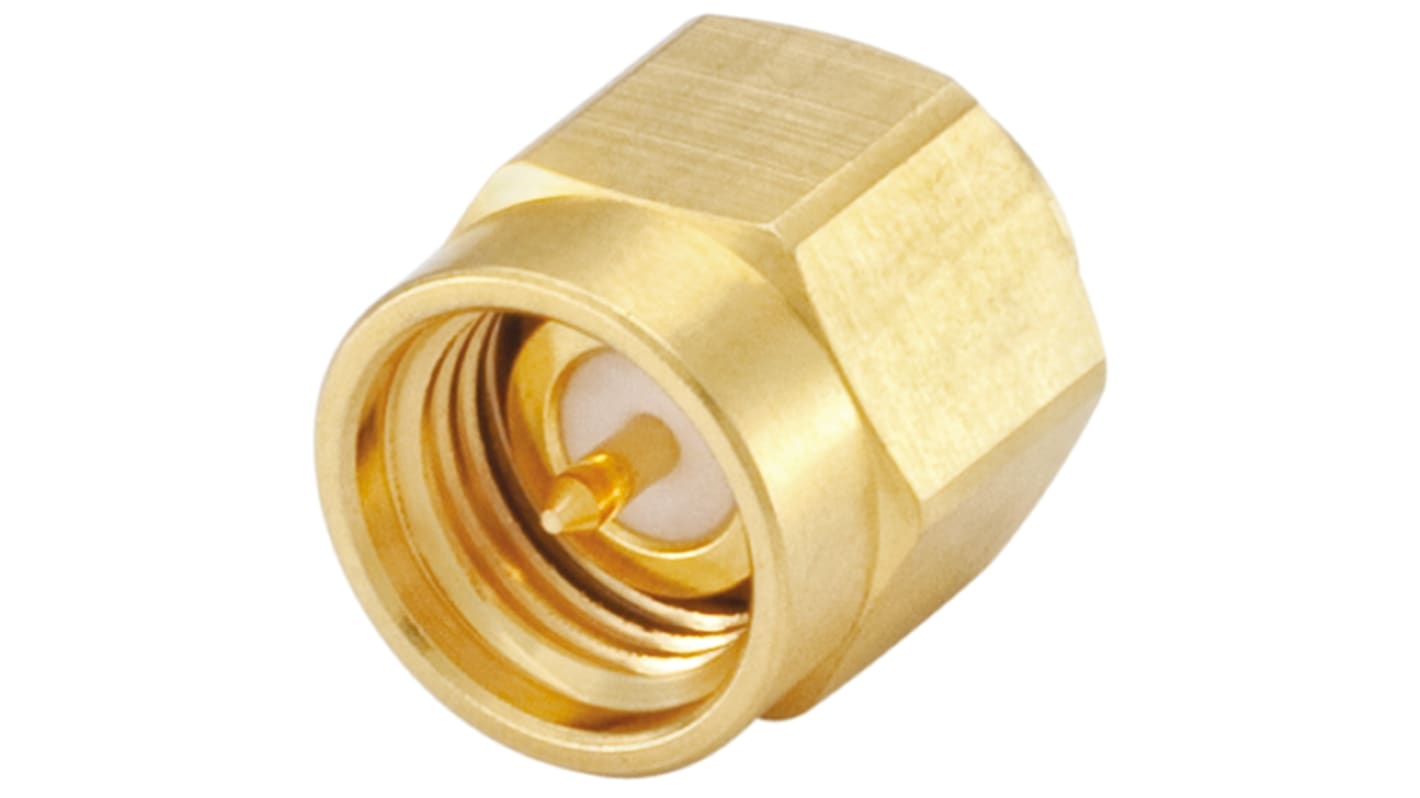

Rosenberger SMA Series, Plug Cable Mount SMA Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 819-4080
- Mfr. Part No.:
- 32S102-271L5
- Brand:
- Rosenberger
Bulk discount available
Subtotal (1 unit)*
£8.74
(exc. VAT)
£10.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
- Plus 72 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £8.74 |
10 - 24 | £8.53 |
25 - 49 | £8.09 |
50 - 99 | £7.68 |
100 + | £7.46 |
*price indicative
- RS Stock No.:
- 819-4080
- Mfr. Part No.:
- 32S102-271L5
- Brand:
- Rosenberger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Rosenberger | |
Gender | Male | |
Coaxial Connector Type | SMA Connector | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Crimp | |
Body Orientation | Straight | |
Cable Type | Semi Rigid | |
Bulkhead | No | |
Operating Frequency | 0 to 18GHz | |
Body Plating | Gold | |
Series | SMA | |
Contact Material | Beryllium Copper | |
Contact Plating | Gold | |
Series Number | 32S102 | |
Mating Type | Screw On | |
Select all | ||
---|---|---|
Brand Rosenberger | ||
Gender Male | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Straight | ||
Cable Type Semi Rigid | ||
Bulkhead No | ||
Operating Frequency 0 to 18GHz | ||
Body Plating Gold | ||
Series SMA | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Series Number 32S102 | ||
Mating Type Screw On | ||
- COO (Country of Origin):
- HU
Rosenberger SMA RF Coaxial Plug and Jack Cable Mount Connectors
A range of 50 OHM SMA RF coaxial connectors available as straight or right angle coax plugs and straight coax jacks for use with a variety of coaxial cable types. These 50 OHM SMA RF coaxial cable jack and plug connectors have a mating interface according to IEC 60169-15; EN 122110; MIL-STD-348A. SMA coax connectors with crimp terminations are supplied with a crimp ferrule. For suitable RF cable types please refer to additional data table
Rosenberger SMA RF Coaxial Connectors
