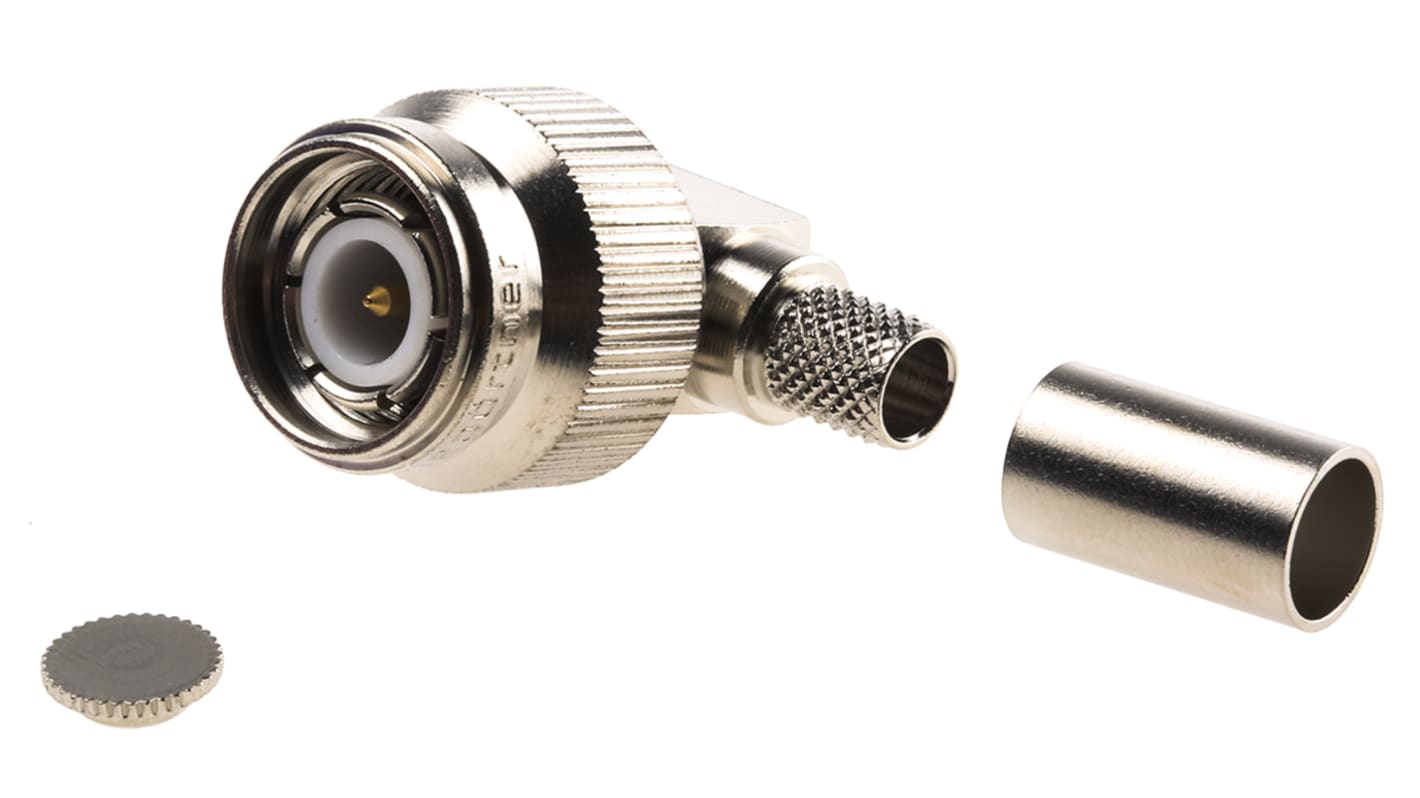

Telegartner, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Right Angle Body
- RS Stock No.:
- 712-2952
- Mfr. Part No.:
- J01010A0037
- Brand:
- Telegartner
Save 52% when you buy 250 units
Subtotal (1 unit)*
£12.39
(exc. VAT)
£14.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 17 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £12.39 |
| 15 - 49 | £10.99 |
| 50 - 99 | £8.15 |
| 100 - 249 | £7.70 |
| 250 + | £5.90 |
*price indicative
- RS Stock No.:
- 712-2952
- Mfr. Part No.:
- J01010A0037
- Brand:
- Telegartner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telegartner | |
| Gender | Male | |
| Coaxial Connector Type | TNC Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Crimp | |
| Body Orientation | Right Angle | |
| Cable Type | 1.5/3.8, 1.5/3.8 FLEX | |
| Operating Frequency | 0 to 11GHz | |
| Body Plating | Nickel | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +165°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Copper Nickel Gold Alloy | |
Select all | ||
|---|---|---|
Brand Telegartner | ||
Gender Male | ||
Coaxial Connector Type TNC Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Right Angle | ||
Cable Type 1.5/3.8, 1.5/3.8 FLEX | ||
Operating Frequency 0 to 11GHz | ||
Body Plating Nickel | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +165°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Copper Nickel Gold Alloy | ||
- COO (Country of Origin):
- DE
Telegartner TNC Right Angle Cable Connectors
Telegartner TNC series RF connectors are the same size as BNC connectors but featuring a threaded coupling mechanism. These TNC connectors can be used up to 11GHz. Differing TNC connector styles are available for flexible, conformable and semi-rigid cable types. Both crimp and clamp cable termination processes are used for this series of TNC connector. Suitable for a wide variety of RF signal applications and data to video transmission.
Over 500 mating cycles
Nickel plated connector finish
5 G ohms insulation resistance
Nickel plated connector finish
5 G ohms insulation resistance
Standards
IEC 60 169-17
Telegartner TNC RF Coaxial Connectors
