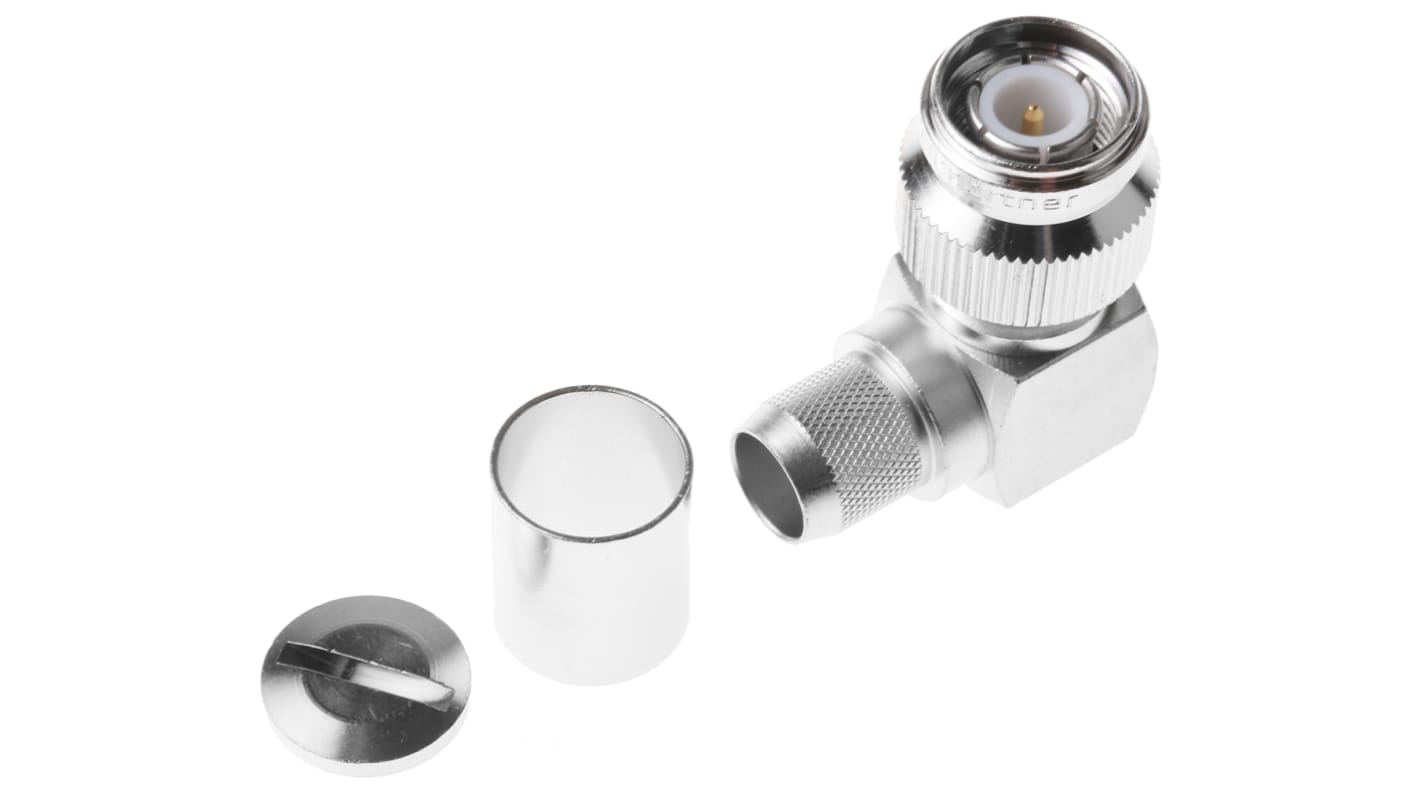

Telegartner, Plug Cable Mount TNC Connector, 50Ω, Solder Termination, Right Angle Body

RS Stock No.:: 738-7547
Mfr. Part No.:: J01010A0065
Brand:: Telegartner

Telegartner, Plug Cable Mount TNC Connector, 50Ω, Solder Termination, Right Angle Body

19 In stock - FREE next working day delivery available

5 available from Europe for delivery within 2 working day(s).

Price Each

£26.05

(exc. VAT)

£31.26

(inc. VAT)

Units	Per unit
1 - 14	£26.05
15 - 49	£25.03
50 - 99	£24.02
100 - 249	£21.91
250 +	£20.87

RS Stock No.:: 738-7547
Mfr. Part No.:: J01010A0065
Brand:: Telegartner

Technical Reference

TNC right angled plug solder/crimp Data Sheet

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Telegartner TNC Right Angle Cable Connectors

Telegartner TNC series RF connectors are the same size as BNC connectors but featuring a threaded coupling mechanism. These TNC connectors can be used up to 11GHz. Differing TNC connector styles are available for flexible, conformable and semi-rigid cable types. Both crimp and clamp cable termination processes are used for this series of TNC connector. Suitable for a wide variety of RF signal applications and data to video transmission.

Over 500 mating cycles
Nickel plated connector finish
5 G ohms insulation resistance

Standards

IEC 60 169-17

Telegartner TNC RF Coaxial Connectors

Specifications

Attribute	Value
Gender	Male
Coaxial Connector Type	TNC Connector
Mounting Type	Cable Mount
Impedance	50Ω
Termination Method	Solder
Body Orientation	Right Angle
Operating Frequency	0 to 11GHz
Body Plating	Nickel
Polarity	Normal
Contact Material	Brass
Contact Plating	Gold
