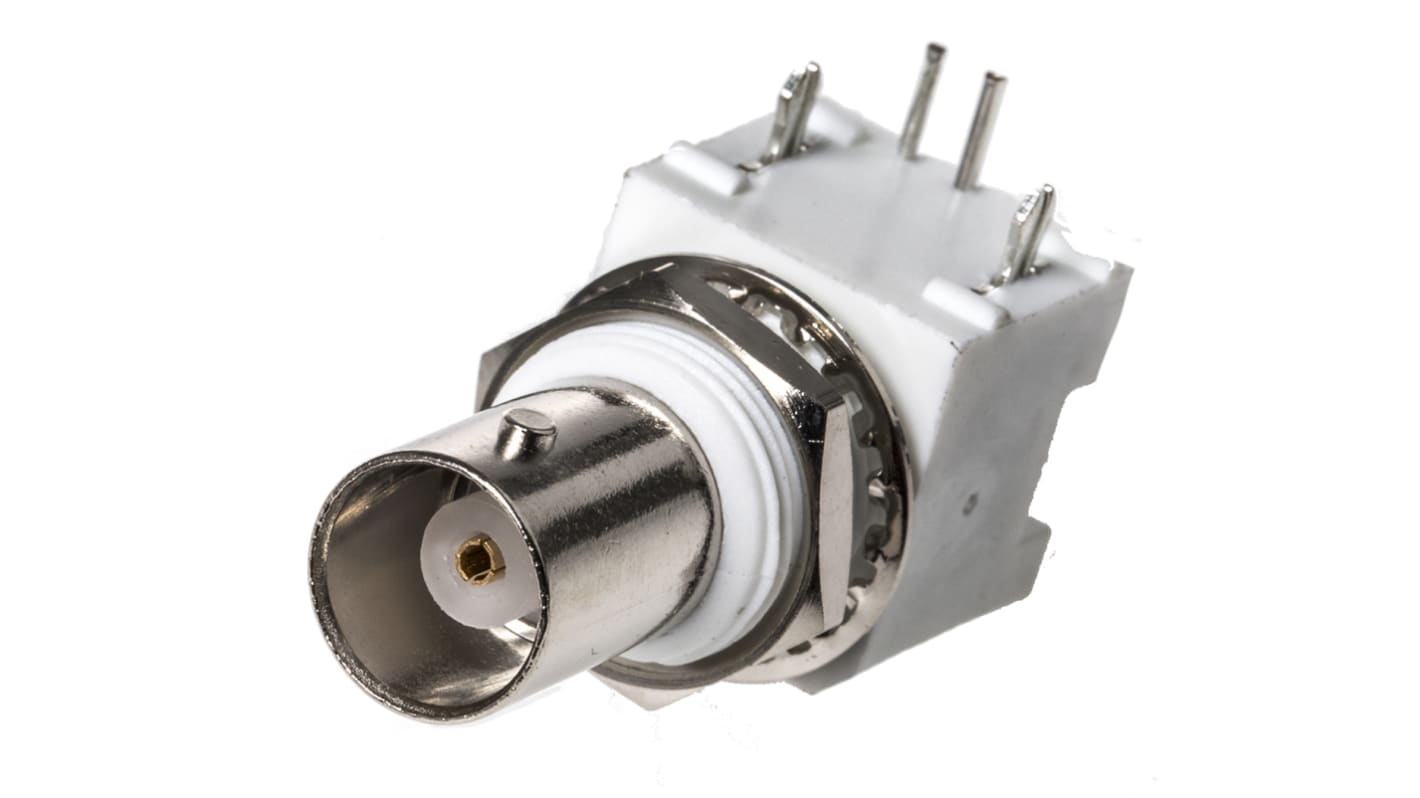

Amphenol 50Ω Right Angle PCB Mount BNC ConnectorBulkhead Fitting, jack

  • RS Stock No. 700-9411
  • Mfr. Part No. B6252H5-NPP3G-50
  • Brand Amphenol
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Amphenol Commercial RF Coaxial PCB Mount BNC Jacks

A range of commercial RF coaxial PCB mount BNC jacks with a nickel plated body and polypropylene insulator.
PCB BNC jacks with part numbers B6251G3-NPP3G-xx have a diecast body
PCB BNC jacks with part numbers B6252H5-NPP3G-xx are high profile with a height of 15.88mm with a white housing
PCB BNC jacks with part numbers B6252H7-NPP3G-xx are low profile with a height of 13.1mm with a white housing
PCB BNC jacks with part numbers B6252HA-NPP3G-xx have a die cast body and are high profile with a height of 15.88mm
PCB BNC jacks with part numbers B6252HB-NPP3G-xx have a die cast body and are low profile with a height of 13.1mm
PCB BNC jacks with part numbers B6251G1-NPP3G-xx have a white housing

Amphenol BNC Connectors

Specifications
Attribute Value
Coaxial Connector Type BNC Connector
Gender Female
Mounting Type PCB Mount
Impedance 50Ω
Termination Method Through Hole
Body Orientation Right Angle
Bulkhead Yes
Body Plating Nickel
Contact Material Phosphor Bronze
Contact Plating Gold, Silver
361 In stock - FREE next working day delivery available
Price Each
£ 1.66
(exc. VAT)
£ 1.99
(inc. VAT)
Units
Per unit
1 +
£1.66
