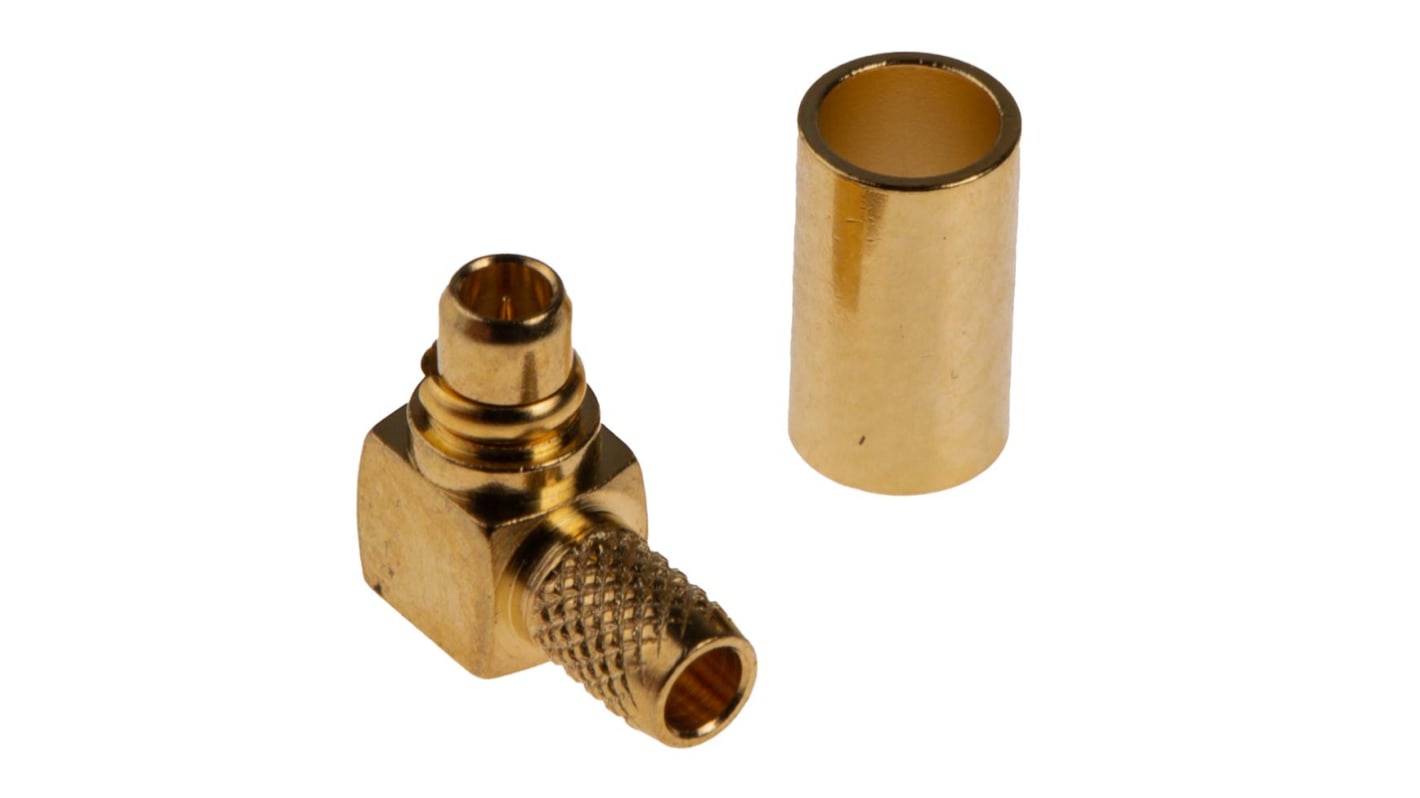

RS PRO, Plug Cable Mount MMCX Connector, 50Ω, Crimp, Solder Termination, Right Angle Body
- RS Stock No.:
- 656-0069
- Distrelec Article No.:
- 304-05-783
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£12.06
(exc. VAT)
£14.47
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 909 left, ready to ship
- Plus 40 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 14 | £12.06 |
15 - 49 | £10.84 |
50 - 99 | £9.66 |
100 - 249 | £8.90 |
250 + | £8.08 |
*price indicative
- RS Stock No.:
- 656-0069
- Distrelec Article No.:
- 304-05-783
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Coaxial Connector Type | MMCX Connector | |
Gender | Male | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Crimp, Solder | |
Body Orientation | Right Angle | |
Cable Type | RG174/U | |
Size | Micro Miniature | |
Operating Frequency | 0 to 6GHz | |
Body Plating | Gold | |
Contact Material | Brass | |
Contact Plating | Gold | |
Mating Type | Snap On | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Coaxial Connector Type MMCX Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp, Solder | ||
Body Orientation Right Angle | ||
Cable Type RG174/U | ||
Size Micro Miniature | ||
Operating Frequency 0 to 6GHz | ||
Body Plating Gold | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Mating Type Snap On | ||
- COO (Country of Origin):
- TW
RS PRO 50 Ω Right Angle Cable Mount MMCX Connector, Plug, RG174/U
This right-angled coaxial connector from the RS PRO range is suitable for connecting coaxial cables to build a data communications network. Its gold-plated brass body and contacts offer superior connectivity. Need more flexibility in your printed circuit board (PCB) layout? The snap-on mechanism allows 360˚ rotation so you can set it up wherever you need it.
This micro-miniature connector boasts low radio-frequency leakage. It's suitable for operating frequencies in the dc to 6 GHz range and is designed for the 50 Ω impedance applications common in data and wireless communications. Termination is by crimp for safe and reliable connections.
The connector has been tested against a range of international standards to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It also contains minimal amounts of hazardous substances (RoHS).
The connector is intended for use with RG178 and RG174 RF coaxial cable types.
This micro-miniature connector boasts low radio-frequency leakage. It's suitable for operating frequencies in the dc to 6 GHz range and is designed for the 50 Ω impedance applications common in data and wireless communications. Termination is by crimp for safe and reliable connections.
The connector has been tested against a range of international standards to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It also contains minimal amounts of hazardous substances (RoHS).
The connector is intended for use with RG178 and RG174 RF coaxial cable types.
Features and Benefits
• Right-angled coaxial connector
• Cable mounting
• Male connector
• Micro-miniature connector
• Impedance of 50 Ω
• Gold-plated brass body for optimum signal transmission
• Snap-on mechanism
• Crimp termination
• Operating frequency of 0-6 GHz
• Insulation resistance rated at 5,000 mΩ for a minute
• Suitable for use with RG178 and RG174 RF coaxial cables
• Cable mounting
• Male connector
• Micro-miniature connector
• Impedance of 50 Ω
• Gold-plated brass body for optimum signal transmission
• Snap-on mechanism
• Crimp termination
• Operating frequency of 0-6 GHz
• Insulation resistance rated at 5,000 mΩ for a minute
• Suitable for use with RG178 and RG174 RF coaxial cables
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
