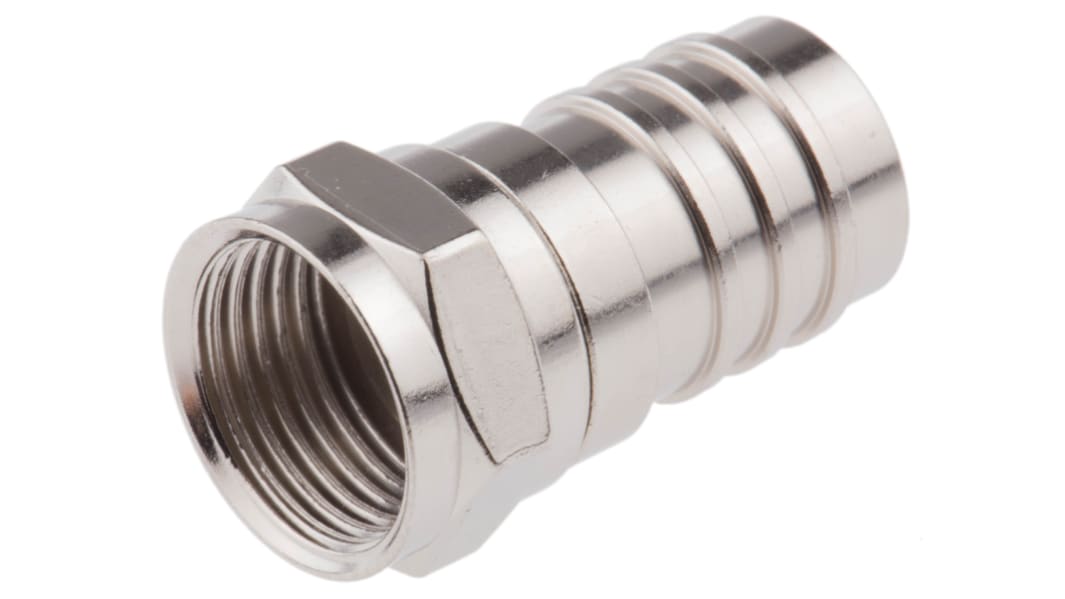

TE Connectivity, Plug Cable Mount F Connector, 75Ω, Hex Crimp Termination, Straight Body
- RS Stock No.:
- 616-3292
- Mfr. Part No.:
- 5-1814821-1
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 616-3292
- Mfr. Part No.:
- 5-1814821-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coaxial Connector Type | F Connector | |
Gender | Male | |
Mounting Type | Cable Mount | |
Impedance | 75Ω | |
Termination Method | Hex Crimp | |
Body Orientation | Straight | |
Cable Type | RG140/U, RG210/U, RG59 B/U, RG62 A/U | |
Operating Frequency | 0 to 2GHz | |
Body Plating | Nickel | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coaxial Connector Type F Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 75Ω | ||
Termination Method Hex Crimp | ||
Body Orientation Straight | ||
Cable Type RG140/U, RG210/U, RG59 B/U, RG62 A/U | ||
Operating Frequency 0 to 2GHz | ||
Body Plating Nickel | ||
- COO (Country of Origin):
- TW
Cable Plugs
Nickel-plated F Type threaded coupling connectors for 75Ω applications. Twist on type uses internal thread that bites into the outer jacket eliminating tooling. Multiple cable types accommodated. For the crimp types, refer to stock number 448-7883 for a suitable hand tool
TE Connectivity - F Type
The F type connector interface is fully compatible with the standard requirements for TV/Satellite connectors using 3//8-32 UNEF 2B internal thread and 7//16 A/F Hex coupling nut and is therefore fully intermateable with products manufactured to these specifications.
