Huber+Suhner, Plug Cable Mount MMBX Connector, 50Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 612-7230
- Mfr. Part No.:
- 16_MMBX-50-2-1/111_NE
- Brand:
- Huber+Suhner

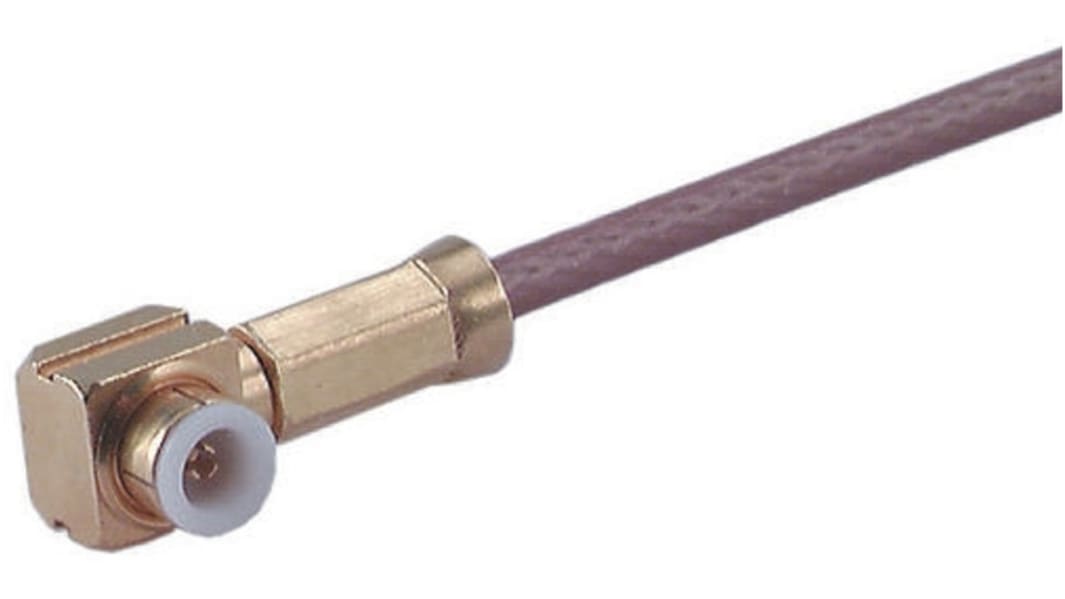

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£20.49
(exc. VAT)
£24.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 7 unit(s) shipping from 24 November 2025
- Plus 100 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £20.49 |
| 15 - 49 | £18.64 |
| 50 - 99 | £16.78 |
| 100 - 249 | £15.81 |
| 250 + | £14.42 |
*price indicative
- RS Stock No.:
- 612-7230
- Mfr. Part No.:
- 16_MMBX-50-2-1/111_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Gender | Male | |
| Coaxial Connector Type | MMBX Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Right Angle | |
| Cable Type | RG174/U, RG188 A/U, RG316/U | |
| Operating Frequency | 0 to 12.4GHz | |
| Body Plating | Gold over Nickel | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Gender Male | ||
Coaxial Connector Type MMBX Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Right Angle | ||
Cable Type RG174/U, RG188 A/U, RG316/U | ||
Operating Frequency 0 to 12.4GHz | ||
Body Plating Gold over Nickel | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
- COO (Country of Origin):
- CH
MMBX Series 90° Cable Plug Connectors
Hubner + Suhner MBX cable connectors are for applications requiring cable to board interfacing, durable MMBX cable connectors with around 100 mating cycles and low engagement force.
Note
Suitable cables K_02252_D, ENVIROFLEX_316_D, G_02232_D
Standards
MIL-STD-202, Method 107 G, Condition B1; MIL-STD-202, Method 106 F; MIL-STD-202, Method 101, Condition B; MIL-STD-202, Method 204 D, Condition A
HUBER+SUHNER MMBX
Modularity with a minimum space requirement is demanded for existing and new generations of cellular technology systems (GSM 900 / 1800 / 1900, PCS, WCDMA, UMTS). In order to reduce the variety of products and to achieve standardised systems (modularity), the MMBX series contains a range of board and cable connectors which require a minimum of space. It offers all the necessary characteristics to obtain a unified design of the various systems.
