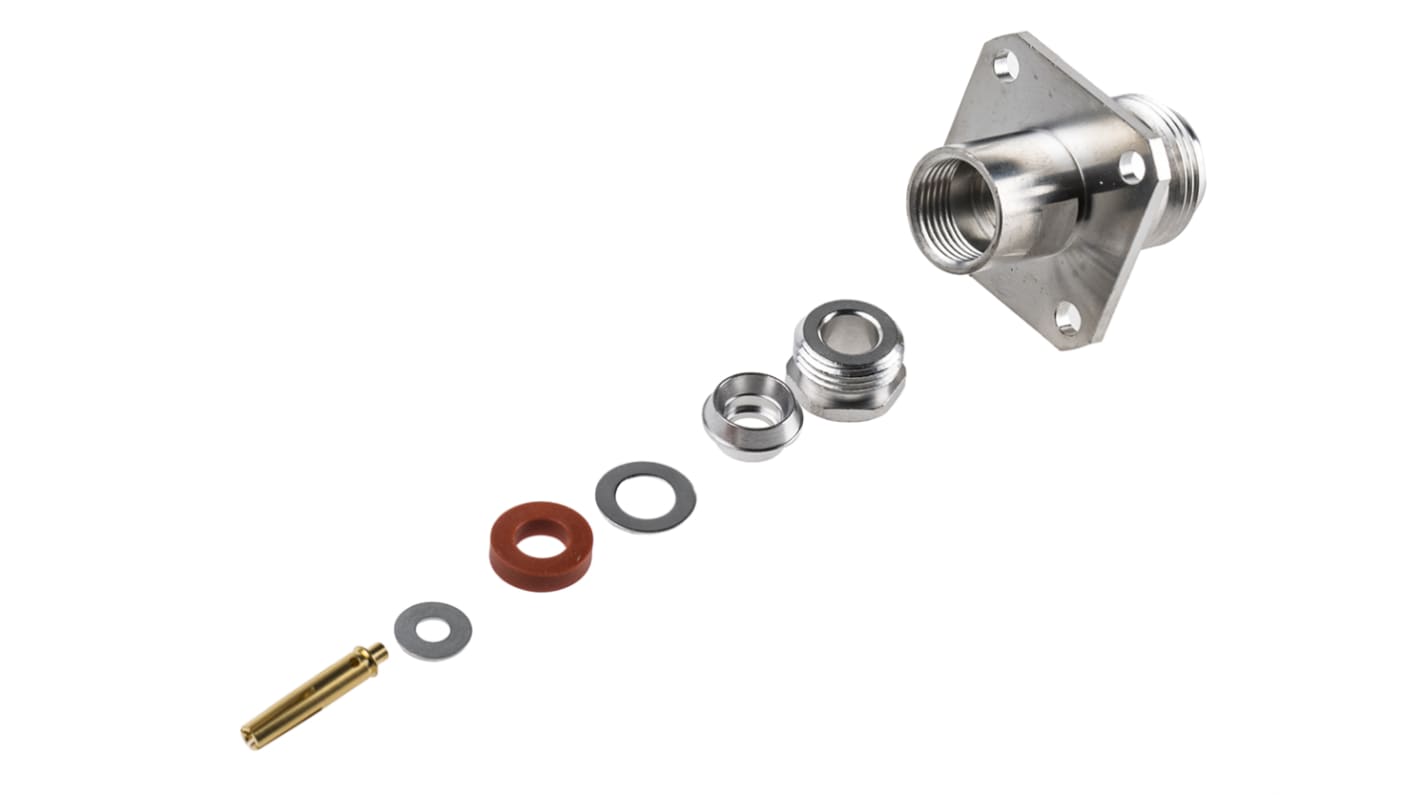

Radiall, Jack Panel Mount N Connector, 50Ω, Clamp Termination, Straight Body
- RS Stock No.:
- 295-6826
- Mfr. Part No.:
- R161256000W
- Brand:
- Radiall
Bulk discount available
Subtotal (1 unit)*
£27.88
(exc. VAT)
£33.46
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 40 left, ready to ship
- Plus 8 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £27.88 |
| 15 - 49 | £25.12 |
| 50 - 99 | £23.71 |
| 100 - 249 | £20.92 |
| 250 + | £19.53 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£16.38
(exc. VAT)
£19.66
(inc. VAT)
- RS Stock No.:
- 295-6826
- Mfr. Part No.:
- R161256000W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Coaxial Connector Type | N Connector | |
| Gender | Female | |
| Mounting Type | Panel Mount | |
| Impedance | 50Ω | |
| Termination Method | Clamp | |
| Body Orientation | Straight | |
| Cable Type | RG141, RG142, RG223, RG400, RG58 | |
| Operating Frequency | 0 to 11GHz | |
| Body Plating | Bronze | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +155°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
Select all | ||
|---|---|---|
Brand Radiall | ||
Coaxial Connector Type N Connector | ||
Gender Female | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Clamp | ||
Body Orientation Straight | ||
Cable Type RG141, RG142, RG223, RG400, RG58 | ||
Operating Frequency 0 to 11GHz | ||
Body Plating Bronze | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +155°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
Straight N plugs with square flanges
Straight, female N plugs for fitting with cable gland, equipped with a square flange for panel-mounting.
The screw coupling on this connector ensures good HF performance.
High permissible power.
Mounted using 4 screws - not supplied.
The screw coupling on this connector ensures good HF performance.
High permissible power.
Mounted using 4 screws - not supplied.
Radiall
BBR (Bronze Blanc Radiall), white bronze plated 50Ω ’N’ connectors meet the demands for reliable, low loss performance required in high frequency communication applications.
Low intermodulation
Non-magnetic and corrosion resistant
Wear and scratch resistant
Non-magnetic and corrosion resistant
Wear and scratch resistant
