Radiall, Jack Panel Mount BNC Connector, 75Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 295-7829
- Mfr. Part No.:
- R142306503W
- Brand:
- Radiall
Save 24% when you buy 250 units
Subtotal (1 unit)*
£9.46
(exc. VAT)
£11.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 213 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £9.46 |
| 25 - 49 | £8.19 |
| 50 - 99 | £7.59 |
| 100 - 249 | £7.31 |
| 250 + | £7.10 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£7.46
(exc. VAT)
£8.95
(inc. VAT)
- RS Stock No.:
- 295-7829
- Mfr. Part No.:
- R142306503W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Gender | Female | |
| Coaxial Connector Type | BNC Connector | |
| Mounting Type | Panel Mount | |
| Impedance | 75Ω | |
| Termination Method | Crimp | |
| Body Orientation | Straight | |
| Cable Type | RG179, RG187 | |
| Bulkhead | Yes | |
| Operating Frequency | 0 to 1.5GHz | |
| Body Plating | Nickel | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +165°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
Select all | ||
|---|---|---|
Brand Radiall | ||
Gender Female | ||
Coaxial Connector Type BNC Connector | ||
Mounting Type Panel Mount | ||
Impedance 75Ω | ||
Termination Method Crimp | ||
Body Orientation Straight | ||
Cable Type RG179, RG187 | ||
Bulkhead Yes | ||
Operating Frequency 0 to 1.5GHz | ||
Body Plating Nickel | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +165°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
- COO (Country of Origin):
- FR

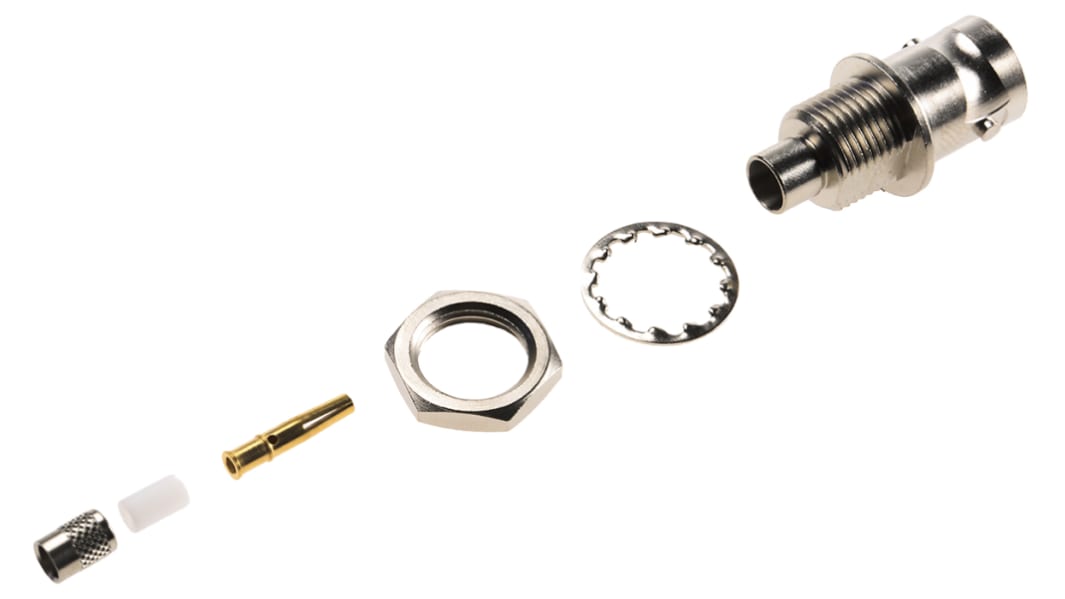

Straight female BNC sockets with crimp nut
Straight female BNC sockets with nut designed for fitting onto panels of 3.5 mm thickness maximum.
Crimp fitting.
Crimp fitting.
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
