RS PRO, Jack PCB MCX Connector, 50Ω, Through Hole Termination, Right Angle Body
- RS Stock No.:
- 283-7161
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£4.88
(exc. VAT)
£5.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 24 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £4.88 |
| 20 - 49 | £4.36 |
| 50 + | £3.83 |
*price indicative
- RS Stock No.:
- 283-7161
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Female | |
| Coaxial Connector Type | MCX Connector | |
| Mounting Type | PCB | |
| Impedance | 50Ω | |
| Termination Method | Through Hole | |
| Body Orientation | Right Angle | |
| Size | Sub-Miniature | |
| Bulkhead | No | |
| Operating Frequency | 6GHz | |
| Minimum Operating Temperature | -55°C | |
| Body Plating | Gold | |
| Maximum Operating Temperature | +155°C | |
| Polarity | Normal | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Mating Type | Snap-In | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Female | ||
Coaxial Connector Type MCX Connector | ||
Mounting Type PCB | ||
Impedance 50Ω | ||
Termination Method Through Hole | ||
Body Orientation Right Angle | ||
Size Sub-Miniature | ||
Bulkhead No | ||
Operating Frequency 6GHz | ||
Minimum Operating Temperature -55°C | ||
Body Plating Gold | ||
Maximum Operating Temperature +155°C | ||
Polarity Normal | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Mating Type Snap-In | ||
- COO (Country of Origin):
- TW

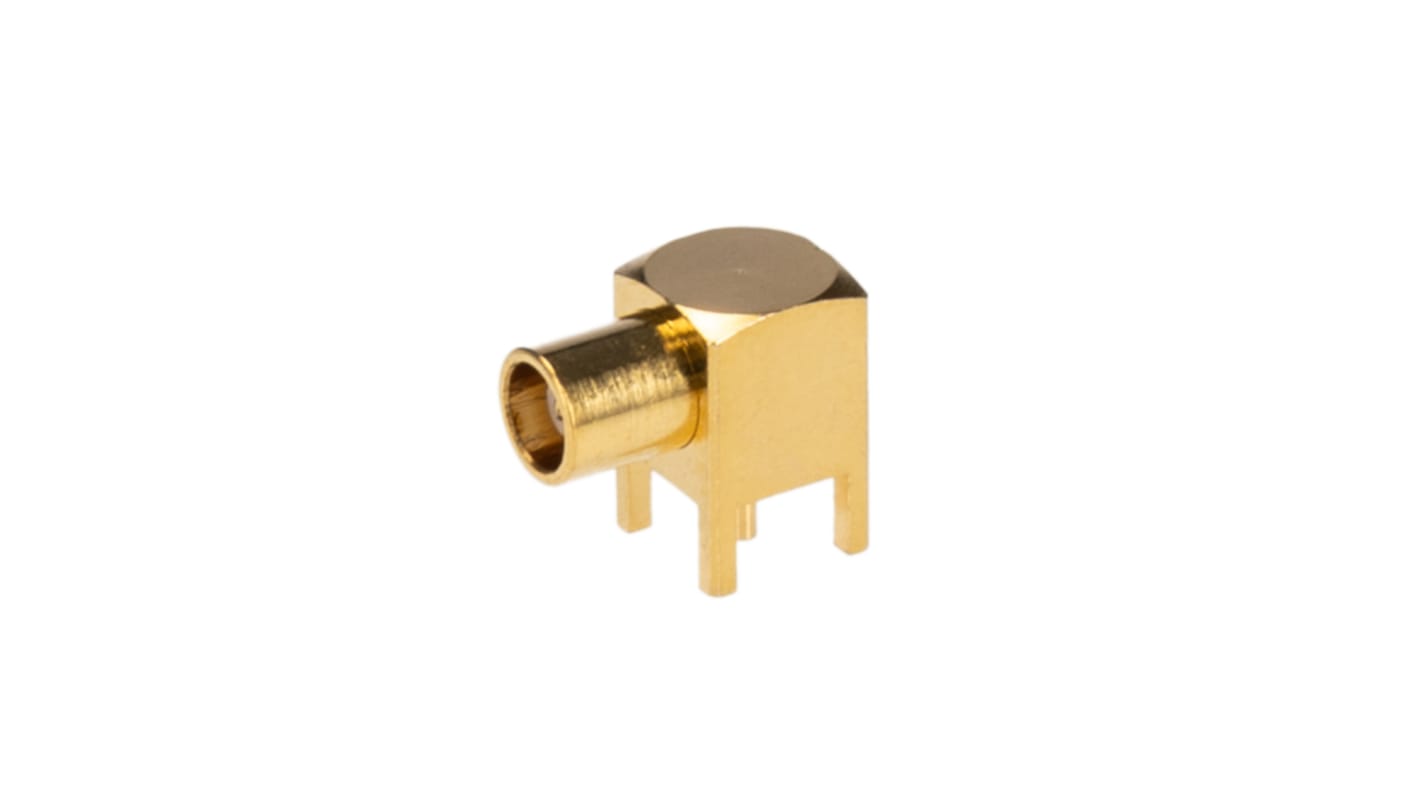

RS PRO Right Angled 6GHz MCX Coaxial PCB Connector Jack (50 Ω)
An MCX jack for through hole mounting on a PCB board with a right angle design ideal for use on low profile builds.
Suitable for use with applications requiring up to 6GHz frequency the PCB SMB jack features a snap in coupling for a secure connection and is capable of up to 500 mating cycles before loss of performance.
Constructed from hardwearing Brass with a Gold plated body and contacts the SMB jack is wear resistance and protected against repeated insertions and disconnections.
With its wide temperature operating range of -55 to +155°C the through hole SMB connector is suitable for use in telecommunications, instrumentation and security applications along with use in the military and aerospace industries.
Features and Benefits
6GHz SMB jack
PCB mount
Right angle body
Through hole termination
50 Ω impedance
Gold plated Brass
Gold plated contacts
PTFE insulation
IP40 protected
500 mating cycles
Full detent
Dimensions 10.6 x 9.5mm
Standards and Approvals: MIL-STD-107, MIL-STD-202
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
