RS PRO, Jack PCB Mount SMA Connector, 50Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 246-9409
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£7.08
(exc. VAT)
£8.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 525 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £7.08 |
| 5 - 9 | £6.87 |
| 10 - 24 | £6.59 |
| 25 + | £6.28 |
*price indicative
- RS Stock No.:
- 246-9409
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coaxial Connector Type | SMA Connector | |
| Gender | Female | |
| Mounting Type | PCB Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Right Angle | |
| Cable Type | Coaxial | |
| Operating Frequency | 12.4GHz | |
| Body Plating | Gold | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | +165°C | |
| Series | SMA | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coaxial Connector Type SMA Connector | ||
Gender Female | ||
Mounting Type PCB Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Right Angle | ||
Cable Type Coaxial | ||
Operating Frequency 12.4GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature +165°C | ||
Series SMA | ||
Contact Material Brass | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN

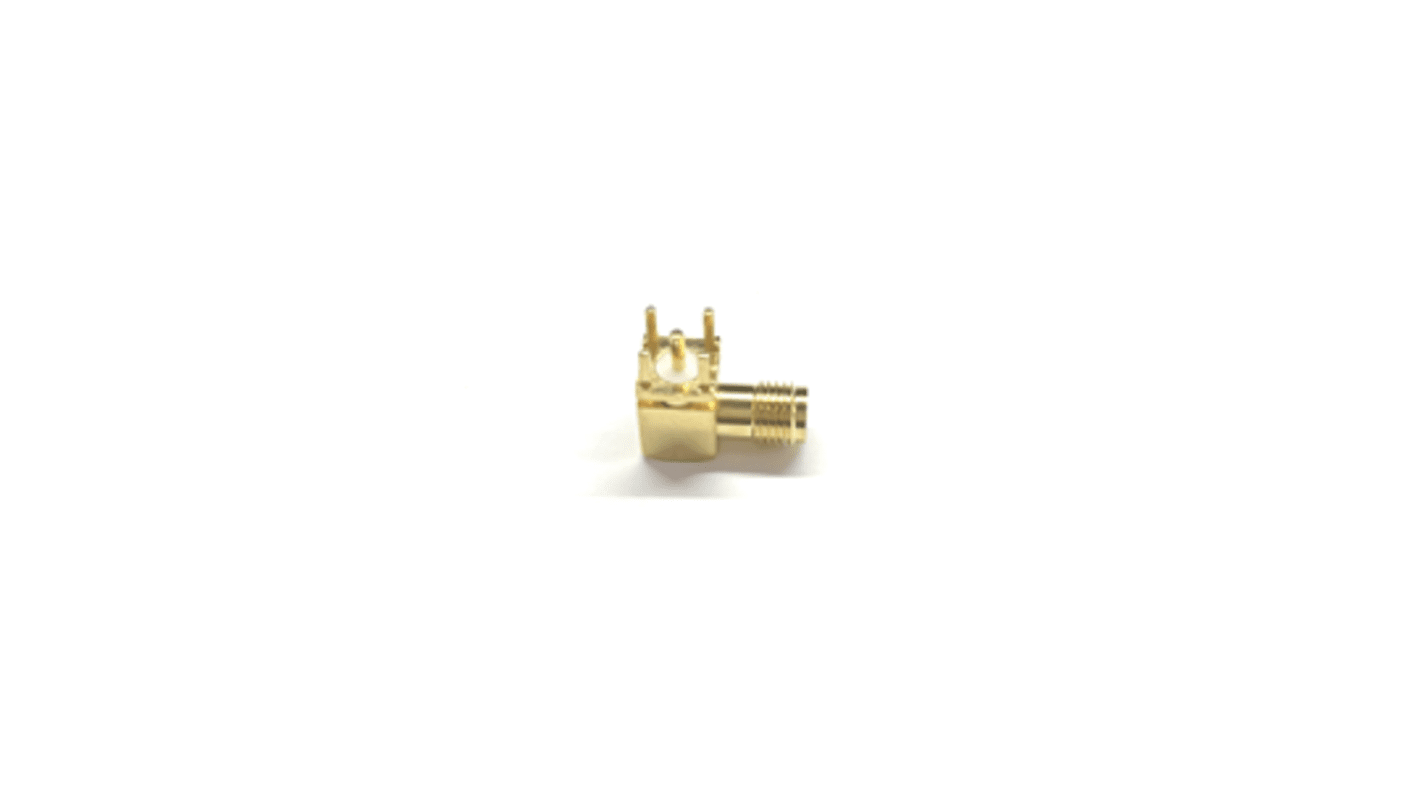

RS PRO Right Angle Flange PCB Mount SMA Connector Jack
A right angle mount SMA (subminiature version A) connector designed to enable the smooth transmission of radio-frequency signals (RF).
This RS PRO coaxial connector connects two cables together while providing electrical shielding and low electromagnetic interference (EMI).
Its right-angled body orientation allows you to install cables in corners and tight Spaces without the risk of damaging the cables.
The RS PRO PCB mount SMA connector features a 12.4 GHz frequency range and ideal for use with in WiFi equipment.
This subminiature connector also features gold-plated Brass contacts for maximum repeated efficiency, wear resistance and excellent conductivity.
This RS PRO coaxial connector connects two cables together while providing electrical shielding and low electromagnetic interference (EMI).
Its right-angled body orientation allows you to install cables in corners and tight Spaces without the risk of damaging the cables.
The RS PRO PCB mount SMA connector features a 12.4 GHz frequency range and ideal for use with in WiFi equipment.
This subminiature connector also features gold-plated Brass contacts for maximum repeated efficiency, wear resistance and excellent conductivity.
Features and Benefits
- Sub-miniature size
- PCB mount
- Solder termination
- Working Voltage of 335V
- Insulation resistance of upto 1000MΩ
- Operating temperature range of -45°C to +165°C
Approvals and Standards: CE, ROHS
