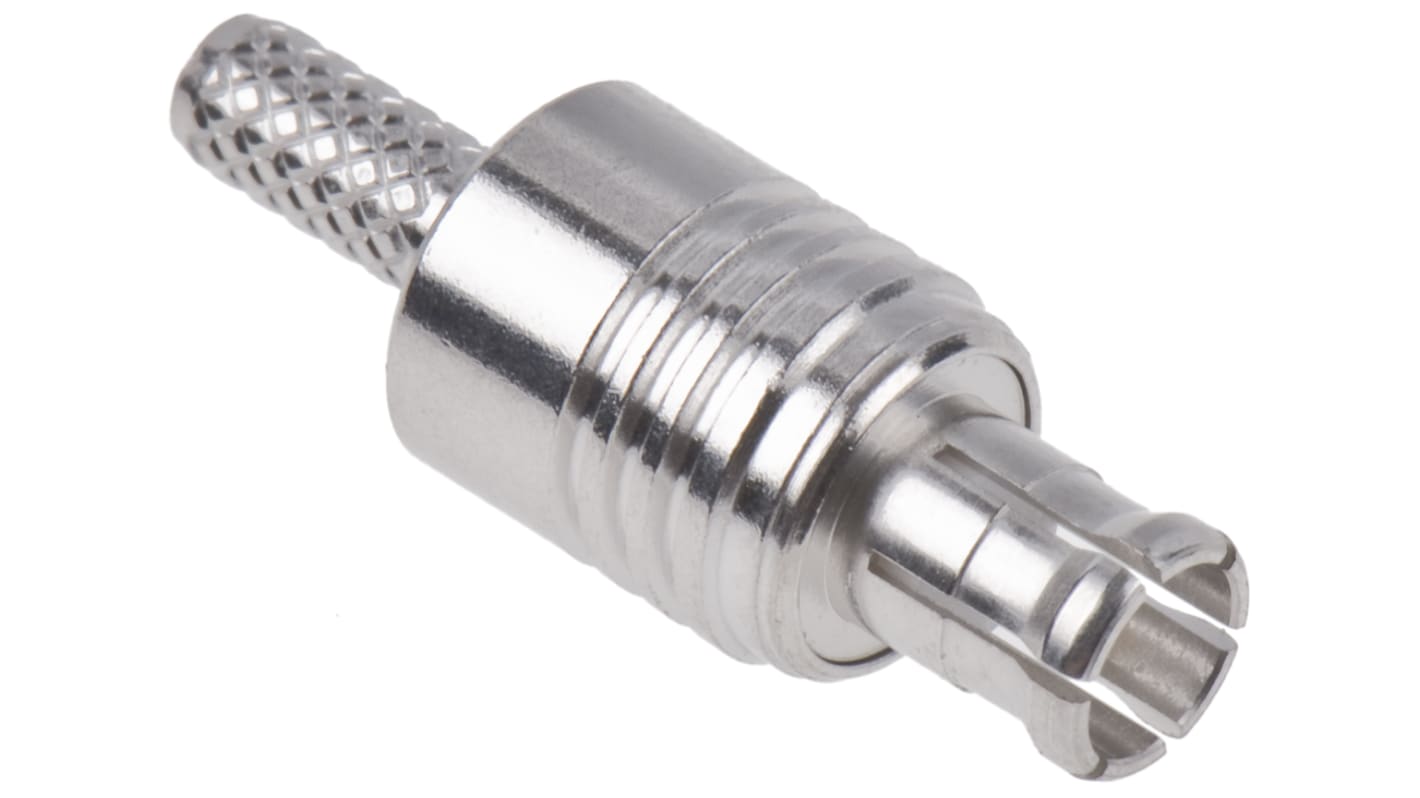

Radiall, Plug Cable Mount MCX Connector, 75Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 280-9433
- Mfr. Part No.:
- R213082007W
- Brand:
- Radiall
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£11.58
(exc. VAT)
£13.90
(inc. VAT)
- RS Stock No.:
- 280-9433
- Mfr. Part No.:
- R213082007W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Gender | Male | |
| Coaxial Connector Type | MCX Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 75Ω | |
| Termination Method | Crimp | |
| Body Orientation | Straight | |
| Cable Type | RG179, RG187 | |
| Operating Frequency | 0 to 6GHz | |
| Body Plating | Bronze | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +155°C | |
| Contact Material | Brass | |
| Contact Plating | Gold over Nickel | |
Select all | ||
|---|---|---|
Brand Radiall | ||
Gender Male | ||
Coaxial Connector Type MCX Connector | ||
Mounting Type Cable Mount | ||
Impedance 75Ω | ||
Termination Method Crimp | ||
Body Orientation Straight | ||
Cable Type RG179, RG187 | ||
Operating Frequency 0 to 6GHz | ||
Body Plating Bronze | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +155°C | ||
Contact Material Brass | ||
Contact Plating Gold over Nickel | ||
- COO (Country of Origin):
- FR
Straight plug
Approvals
-
MCX 75Ω
Microminiature coaxial connectors designed for monitoring video and broadcast applications
Rapid push-pull snap-on mating action, compatible with 50Ω versions
Smaller in size than equivalent SMB versions, and ideal for use in equipment with restricted space
Suitable for use with RG178 cable
Recommended crimp tool stock no. 252-2473
Recommended solder cap assembly tool stock no. 245-5165
Rapid push-pull snap-on mating action, compatible with 50Ω versions
Smaller in size than equivalent SMB versions, and ideal for use in equipment with restricted space
Suitable for use with RG178 cable
Recommended crimp tool stock no. 252-2473
Recommended solder cap assembly tool stock no. 245-5165
