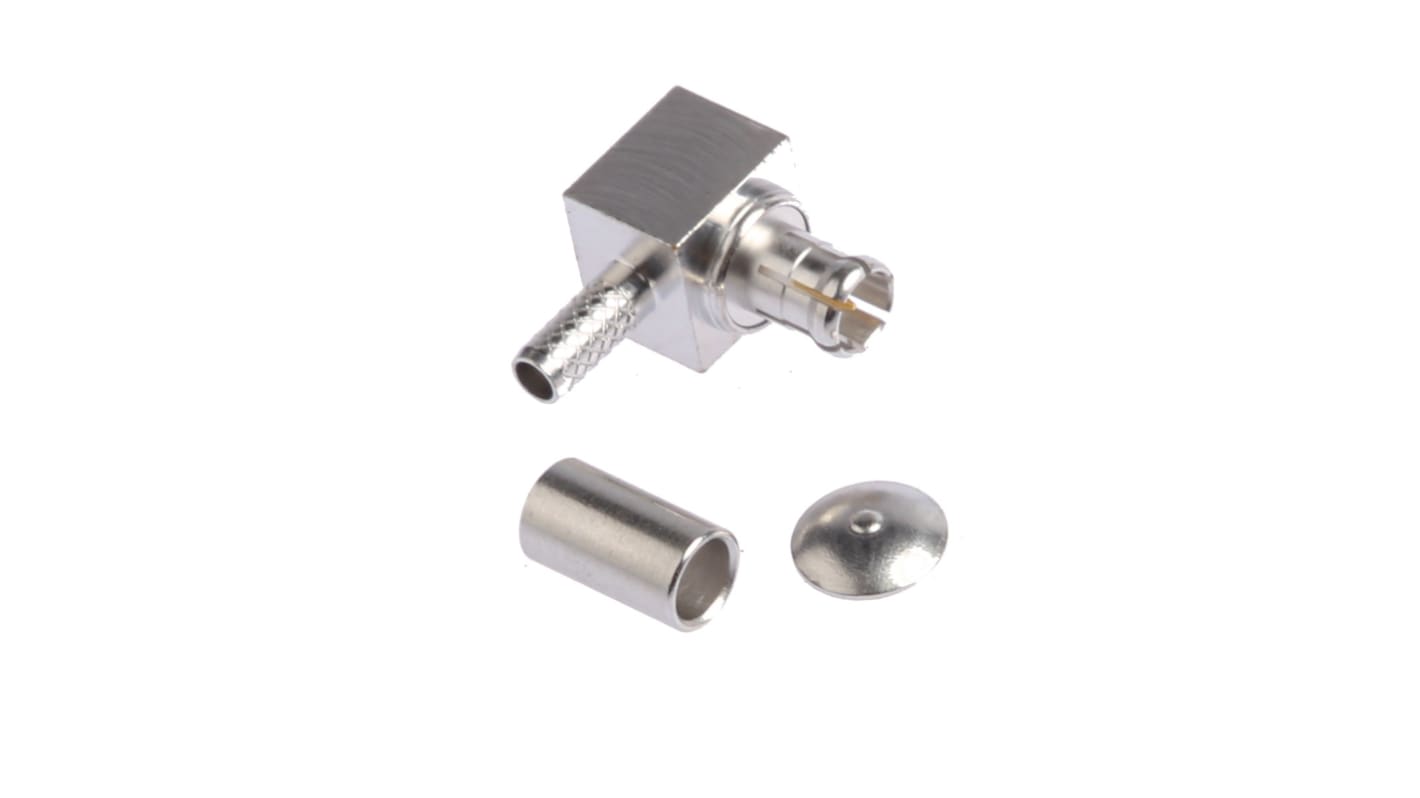

Radiall, Plug Cable Mount MCX Connector, 75Ω, Crimp Termination, Right Angle Body
- RS Stock No.:
- 280-9449
- Mfr. Part No.:
- R213182007W
- Brand:
- Radiall
Bulk discount available
Subtotal (1 unit)*
£11.58
(exc. VAT)
£13.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 225 unit(s) ready to ship
- Plus 49 unit(s) ready to ship from another location
- Plus 1,000 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £11.58 |
| 15 - 49 | £10.44 |
| 50 - 99 | £9.84 |
| 100 - 249 | £8.67 |
| 250 + | £8.08 |
*price indicative
- RS Stock No.:
- 280-9449
- Mfr. Part No.:
- R213182007W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Gender | Male | |
| Coaxial Connector Type | MCX Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 75Ω | |
| Termination Method | Crimp | |
| Body Orientation | Right Angle | |
| Cable Type | RG179, RG187 | |
| Operating Frequency | 0 to 6GHz | |
| Body Plating | Bronze | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +155°C | |
| Contact Material | Brass | |
| Contact Plating | Gold over Nickel | |
Select all | ||
|---|---|---|
Brand Radiall | ||
Gender Male | ||
Coaxial Connector Type MCX Connector | ||
Mounting Type Cable Mount | ||
Impedance 75Ω | ||
Termination Method Crimp | ||
Body Orientation Right Angle | ||
Cable Type RG179, RG187 | ||
Operating Frequency 0 to 6GHz | ||
Body Plating Bronze | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +155°C | ||
Contact Material Brass | ||
Contact Plating Gold over Nickel | ||
90° Cable plug
Approvals
-
MCX 75Ω
Microminiature coaxial connectors designed for monitoring video and broadcast applications
Rapid push-pull snap-on mating action, compatible with 50Ω versions
Smaller in size than equivalent SMB versions, and ideal for use in equipment with restricted space
Suitable for use with RG178 cable
Recommended crimp tool stock no. 252-2473
Recommended solder cap assembly tool stock no. 245-5165
Rapid push-pull snap-on mating action, compatible with 50Ω versions
Smaller in size than equivalent SMB versions, and ideal for use in equipment with restricted space
Suitable for use with RG178 cable
Recommended crimp tool stock no. 252-2473
Recommended solder cap assembly tool stock no. 245-5165
