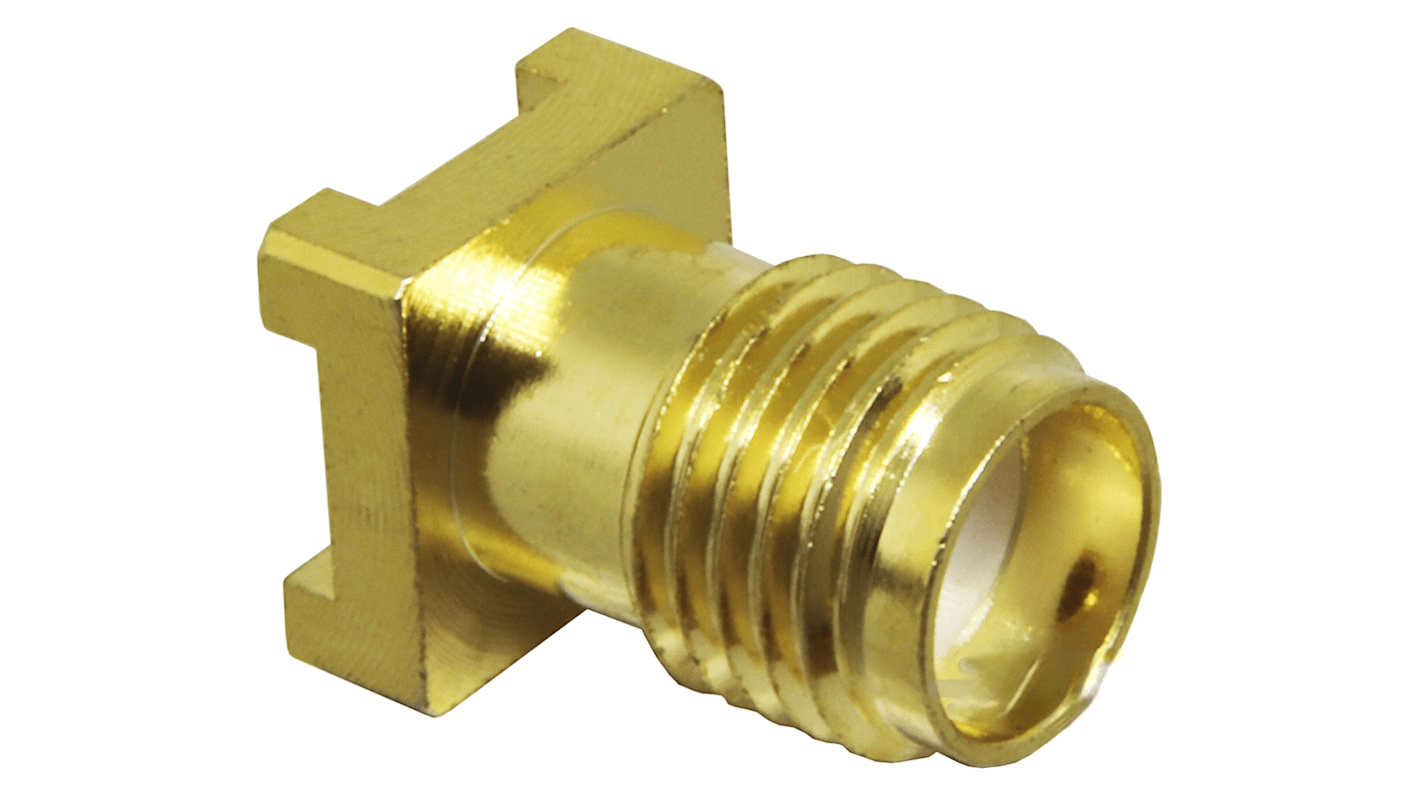

TE Connectivity, Jack PCB Mount SMA Connector, Through Hole Termination, Straight Body
- RS Stock No.:
- 271-1062
- Mfr. Part No.:
- CONSMA001-SMD-G-T
- Brand:
- TE Connectivity
Save 14% when you buy 2000 units
Subtotal (1 reel of 400 units)*
£1,729.20
(exc. VAT)
£2,075.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
- Plus 999,999,200 unit(s) shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
400 - 400 | £4.323 | £1,729.20 |
800 - 800 | £4.143 | £1,657.20 |
1200 - 1200 | £3.977 | £1,590.80 |
1600 - 1600 | £3.824 | £1,529.60 |
2000 + | £3.682 | £1,472.80 |
*price indicative
- RS Stock No.:
- 271-1062
- Mfr. Part No.:
- CONSMA001-SMD-G-T
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Gender | Female | |
Coaxial Connector Type | SMA Connector | |
Mounting Type | PCB Mount | |
Termination Method | Through Hole | |
Body Orientation | Straight | |
Cable Type | Coaxial | |
Size | 7 x 10.4 x 7 mm | |
Bulkhead | No | |
Operating Frequency | 18GHz | |
Body Plating | Gold | |
Minimum Operating Temperature | -65°C | |
Polarity | Standard | |
Maximum Operating Temperature | +160°C | |
Contact Material | Beryllium Copper | |
Contact Plating | Gold | |
Mating Type | Threaded | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type PCB Mount | ||
Termination Method Through Hole | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Size 7 x 10.4 x 7 mm | ||
Bulkhead No | ||
Operating Frequency 18GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -65°C | ||
Polarity Standard | ||
Maximum Operating Temperature +160°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Mating Type Threaded | ||
- COO (Country of Origin):
- TW
The TE Connectivity SMA jack is connector assembly with threaded coupling mechanism. It has 18 GHz operating frequency.
Operating temperature -65 to 165 °C
RF connector centre contact plating material Gold
RF connector centre contact plating material Gold
