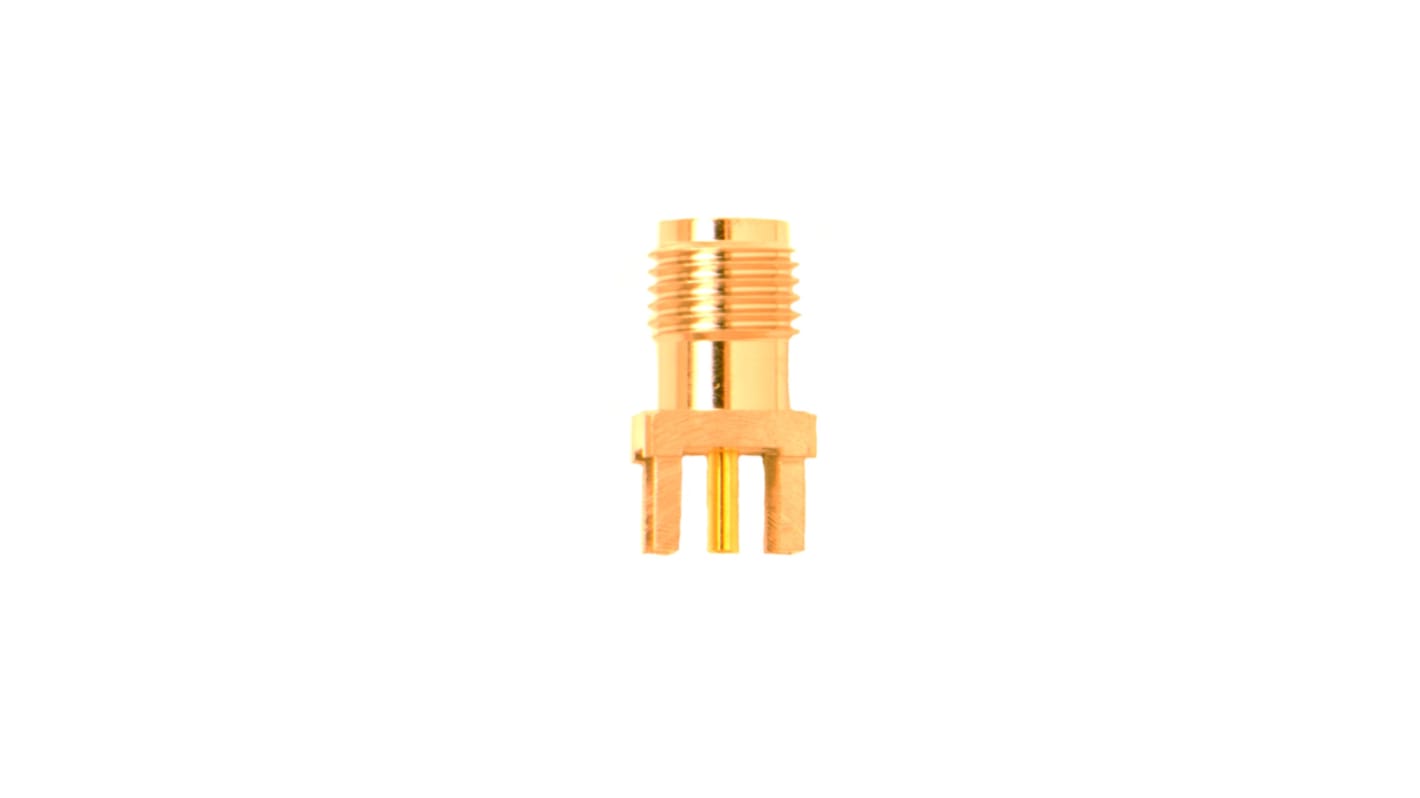

TE Connectivity, Jack PCB Mount SMA Connector, Through Hole Termination, Straight Body
- RS Stock No.:
- 271-1058
- Mfr. Part No.:
- CONSMA001-G
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 tray of 100 units)*
£516.80
(exc. VAT)
£620.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
100 - 100 | £5.168 | £516.80 |
200 - 200 | £4.951 | £495.10 |
300 - 300 | £4.754 | £475.40 |
400 - 400 | £4.574 | £457.40 |
500 + | £4.403 | £440.30 |
*price indicative
- RS Stock No.:
- 271-1058
- Mfr. Part No.:
- CONSMA001-G
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Gender | Female | |
Coaxial Connector Type | SMA Connector | |
Mounting Type | PCB Mount | |
Termination Method | Through Hole | |
Body Orientation | Straight | |
Cable Type | Coaxial | |
Size | 7 x 13.6 x 7 mm | |
Bulkhead | No | |
Operating Frequency | 12.4GHz | |
Body Plating | Gold | |
Minimum Operating Temperature | -65°C | |
Maximum Operating Temperature | +160°C | |
Polarity | Standard | |
Contact Material | Beryllium Copper | |
Contact Plating | Gold | |
Mating Type | Threaded | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type PCB Mount | ||
Termination Method Through Hole | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Size 7 x 13.6 x 7 mm | ||
Bulkhead No | ||
Operating Frequency 12.4GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +160°C | ||
Polarity Standard | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Mating Type Threaded | ||
- COO (Country of Origin):
- TW
The TE Connectivity SMA jack is connector assembly with threaded coupling mechanism. It has 12.4 GHz operating frequency.
Operating temperature -65 to 165 °C
RF connector centre contact plating material Gold
RF connector centre contact plating material Gold
